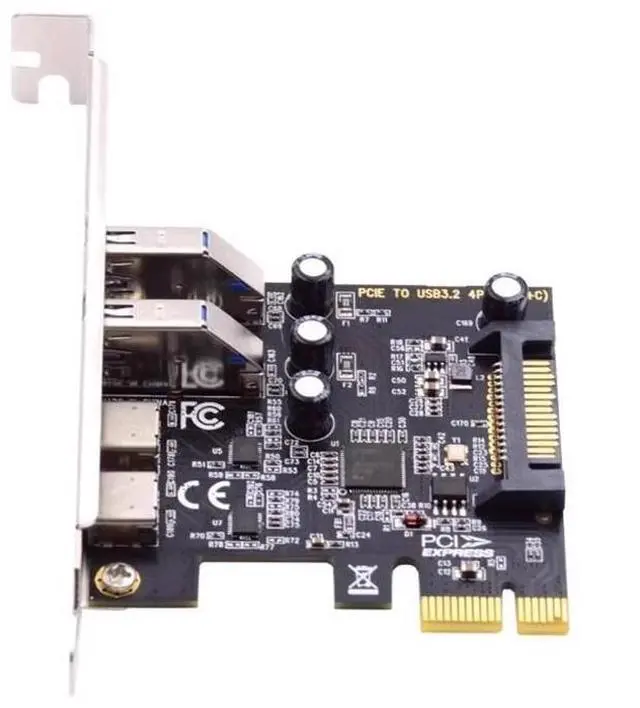

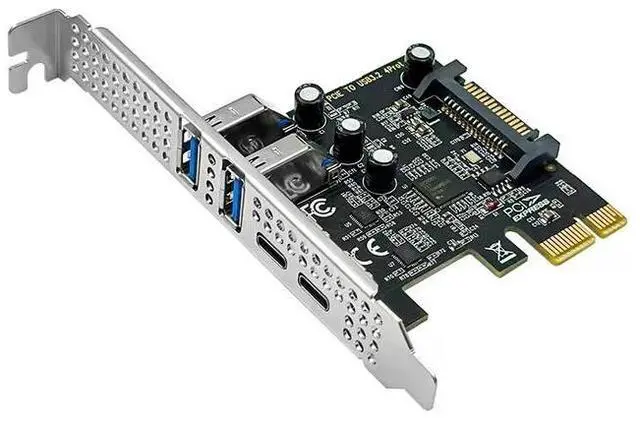

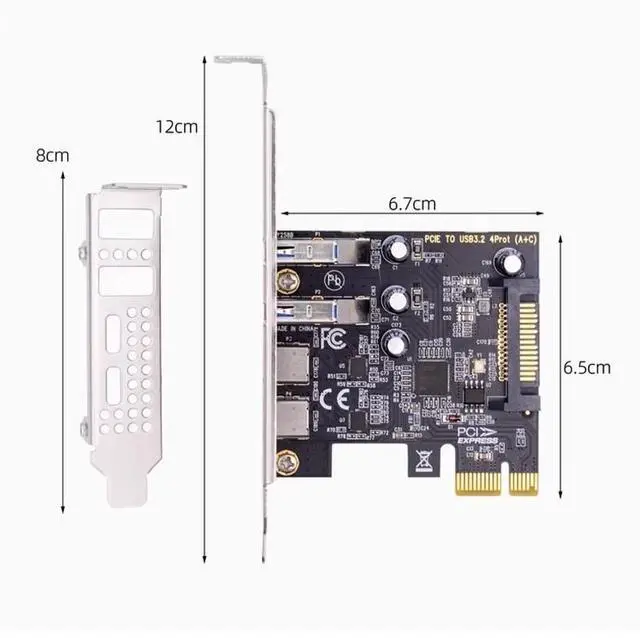

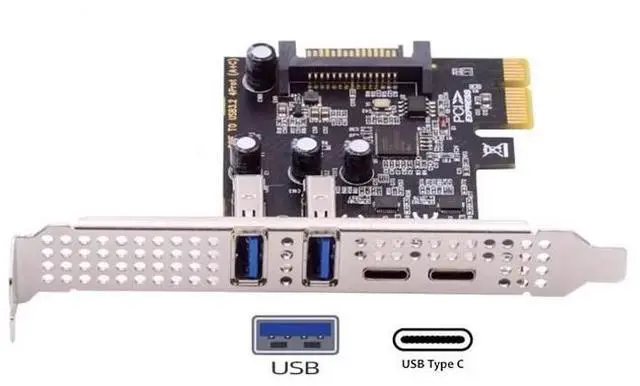

PCIe to 2-Port USB 3.0 + Type-C Expansion Card 5Gbps, 2A+2C, NEC Chip, for Desktop PC
- Product advantages:
- The main control is D720201. Due to the large current defined by the USB interface, a SATA 15PIN for enhanced power supply has been specially designed. The expansion card uses multiple imported solid-state capacitors, which significantly ensures the stability of USB power supply. Through direct cooperation with the original manufacturer, strong after-sales technical support, firmware and drivers can be provided with the earliest updates. Each interface of the new board has added self-recovery fuses, providing dual protection for USB devices.
- Product Usage:
- With the advent of USB 3.0, the motherboards still did not have USB 3.0 interfaces. To enable the old motherboards to utilize and experience the high-speed copying function of USB 3.0, USB 3.0 adapter cards were born.
- Installation instructions for the driver:
- For systems above Windows 8, there is no need to install drivers. Using the drivers provided by Windows itself will result in faster performance. The system's built-in drivers have enabled the UASP function.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters
Product Name: Type-A + Type-C Interface Expansion Card
External interface: PCI-E 1X (compatible with 1X, 4X, 8X, 16X)
Interface speed: USB 3.2 Gen1 5Gbps
Supporting chassis: 2U mini chassis / 4U large chassis
Main control chip: D720201
System Support: WINXP WIN7 WIN8 WIN10 WIN11 LINUX
Driver instructions: Works with Windows 10 and above systems without driver installation. The speed will be faster than that of the original factory drivers.
Notes:
A: The USB interface is a USB 3.2 GEN1 5Gbps (i.e., original USB 3.0) standard interface! B: The expansion card is equipped with a DC-DC voltage reduction IC, so it can operate without connecting the SATA power cable.
Product Specifications:
Compliant with the revised version 2.0 of the PCl Express basic specification
In compliance with the Universal Serial Bus 3.1 specification, Gen1
Compliant with the revised version 1.0 of the USB connection SCSI protocol
Compatible xHCI (Extensible Host Controller Interface) specification revision 1.1
Supports simultaneous operation of multiple USB 3.2, 3.1, 3.0, USB 2.0 and USB 1.1 devices
Supports USB data transfer rates of 5G/480M/12M/1.5Mbps
Built-in SATA power connection, USB power output: maximum 5V 1.5A
Explanation of the Name Change by the USB Association:
A: The original USB 3.0 with a speed of 5 Gbps has been renamed as USB 3.2 GEN1.
B. The original USB 3.1 with a speed of 10 Gbps has been renamed as USB 3.2 GEN2.
C: The original USB 3.2 with a speed of 20 Gbps has been renamed as USB 3.2 GEN2*2.
From now on, the new motherboards and expansion cards will no longer bear the names USB3.0 or USB3.1. Please be informed!
