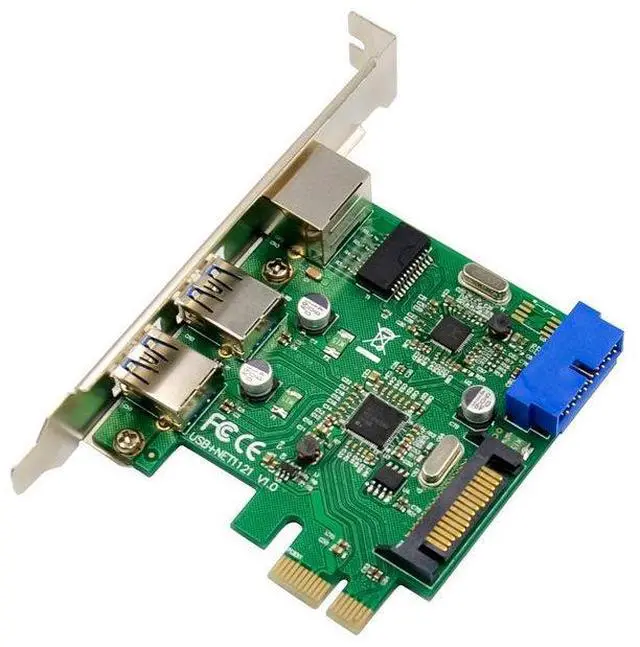

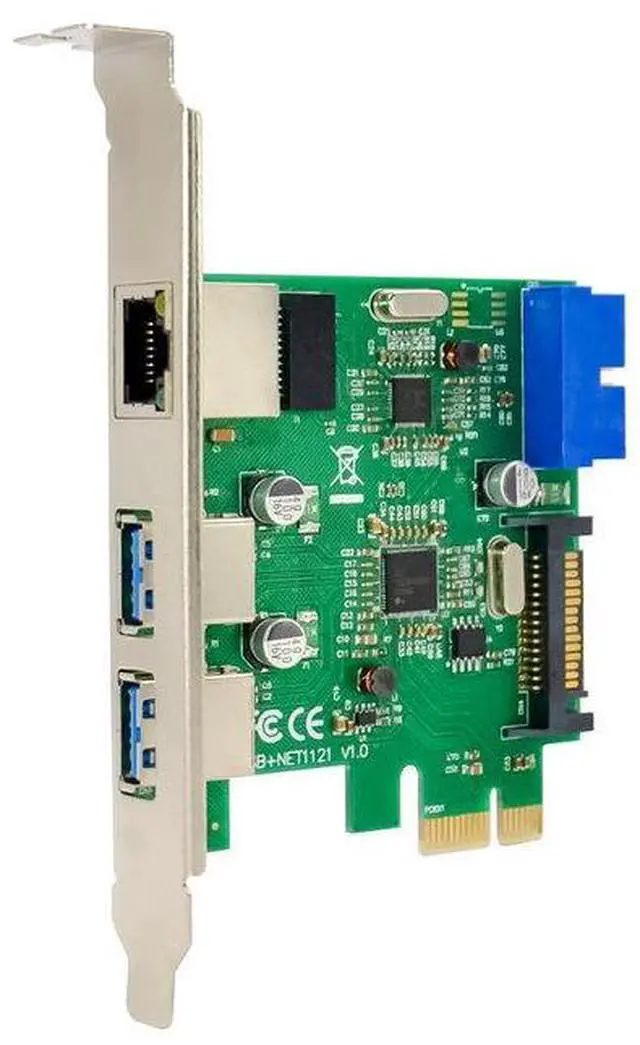

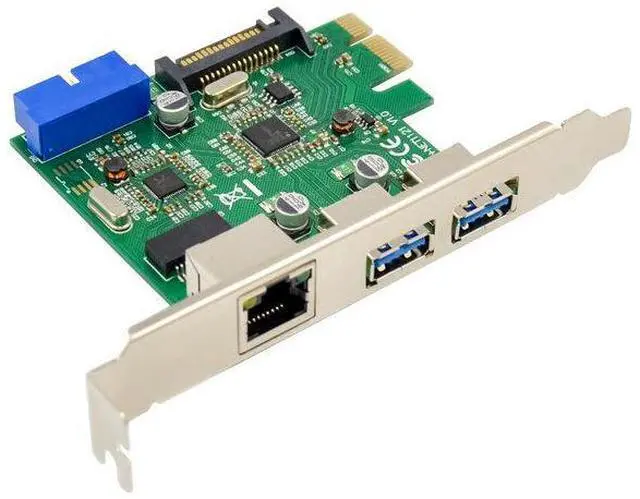

PCIe 3-in-1 Expansion Card USB 3.0 + Gigabit Ethernet + 19-Pin Header, RTL8153, with SATA Power
Limited time offer, ends 05/10 By ElectroWorks JV
- Performance Characteristics:
- Compliant with the revised version 2.0 of the PCI Express basic specification
- Compliant with the revised version 1.0 of the Universal Serial Bus 3.0 specification
- Backward compatible with USB 2.0 and PCI-Express 1.0
- Built-in 4-pin and 15-pin SATA power connectors for additional power supply.
- USB 3.0 interface
- Support low speed (1.5Mbps), full speed (12Mbps), high speed (480Mbps), and ultra-speed (5Gbps)
- Each USB 3.0 port has a 5V/900mA power output.
- Fully compatible with plug-and-play and hot-swapping
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RJ45 port
Fully compliant with IEEE 802.3, IEEE 802.3u. IEEE 802.3az
Support full-duplex flow control
Support online wake-up and remote wake-up.
Support automatic negotiation of 10/100/1000M data rates
Integrated 10/100/1000M transceiver LED lights
The USB 3.0 has a bandwidth of up to 5 Gbps, allowing users to enjoy gigabit network through the RJ45 interface.
Built-in hardware drivers, easy to use
Bus type: PCI-E X1*rev2.0
Main controller: VL805 + RTL8153
Media interface: 2 x USB3.0 ports
1 x Gigabit RJ45 LAN port
1 x 4-PIN power connector
1 x 15-PIN SATA connection port
Transmission rate: USB 3.0, low speed (1.5 Mbps) / full speed (12 Mbps) / high speed (480 Mbps) / ultra-speed (5 Gbps)
RJ45 Ethernet: 10/100/1000Mbps (Auto-sensing)
