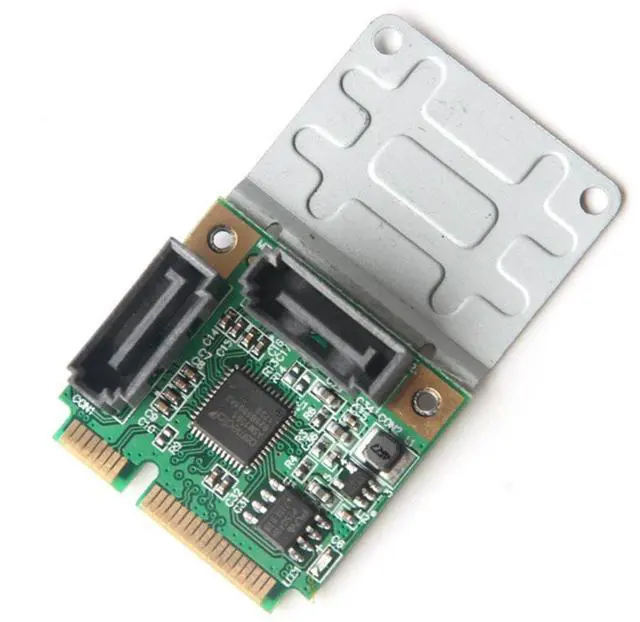

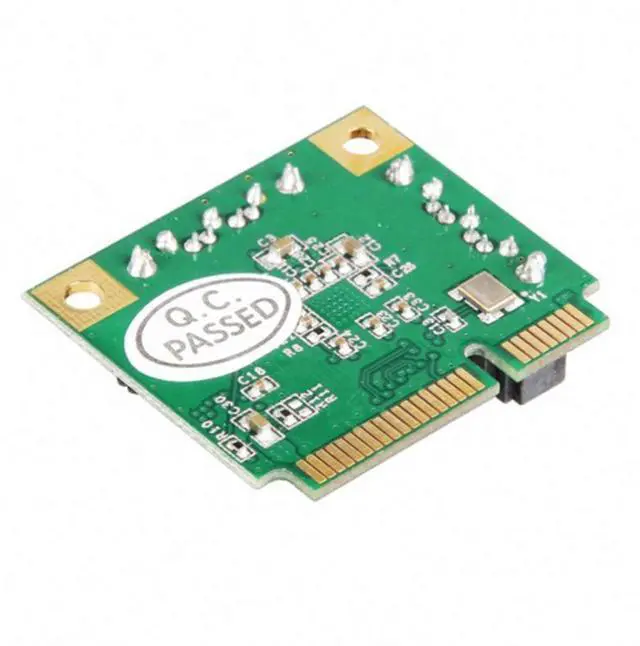

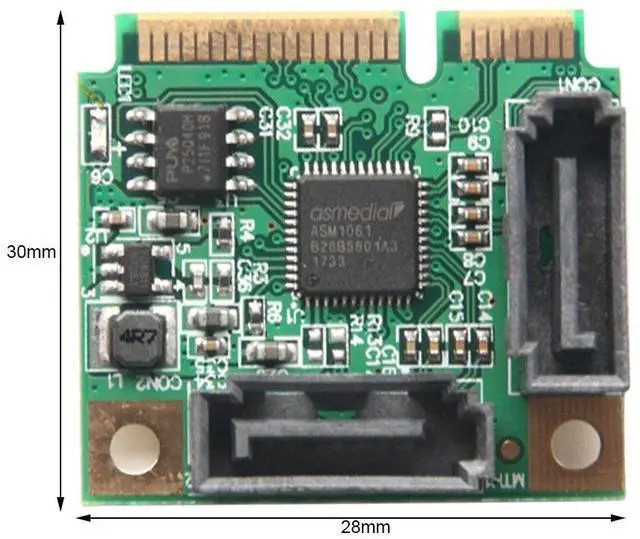

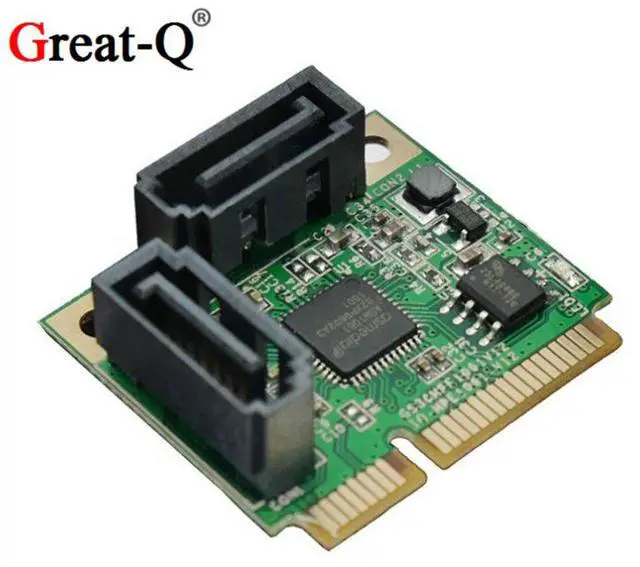

Mini PCIe to 2-Port SATA 3.0 Expansion Card mPCIe HDD/SSD Adapter
- Mini PCI-E to SATA3 Expansion Card SATA 3.0 Card Mini PCIE Hard Drive Expansion Card 2 Ports
- The Mini PCI-Express SATA expansion card can provide 2 SATA 3.0 interfaces. It adopts the native PCI Express 2.0 bus. This card supports SATA 6Gbps devices that comply with the SATA 3.0 specification, and is also backward compatible with SATA 1.5Gbps and 3.0Gbps devices.
- Characteristics
- PCI-E single-chip design
- Supports two SATA 6Gbps ports
- Specification
- Compliant with the basic specifications of PCI Express version 2.0, and backward compatible with version 1.0
- The single-lane (x1) PCI-E data transfer rate reaches up to 5.0/2.5 gbps.
- Compliant with the electrical specifications of PCI-E Mini Card Revision 1.2
- Serial ATA (SATA) interface
- Compatible with Serial ATA AHCI (Advanced Host Controller Interface) specification Rev 1.2
- Programming interface for IDE ATA controller supporting bus mastering, version 1.0
- Supports SATA 3.0 with a transfer rate of up to 6 Gbps
- Supports backward compatibility with SATA-II (3 Gbps) and SATA-I (1.5 Gbps) standards
- Support Gen1m and Gen2m SATA PHY
- Support local command queue (NCQ) and port doubling
- Support hot swapping on SATA ports
- System Requirements
- Suitable for computer systems with Mini PCI-E slots
- Windows 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

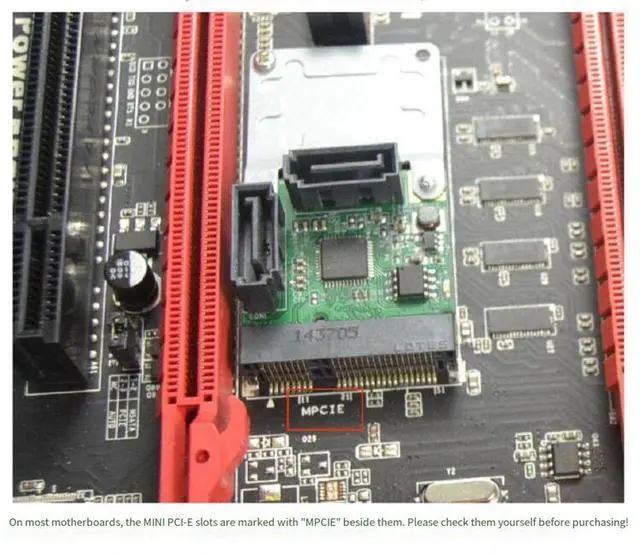

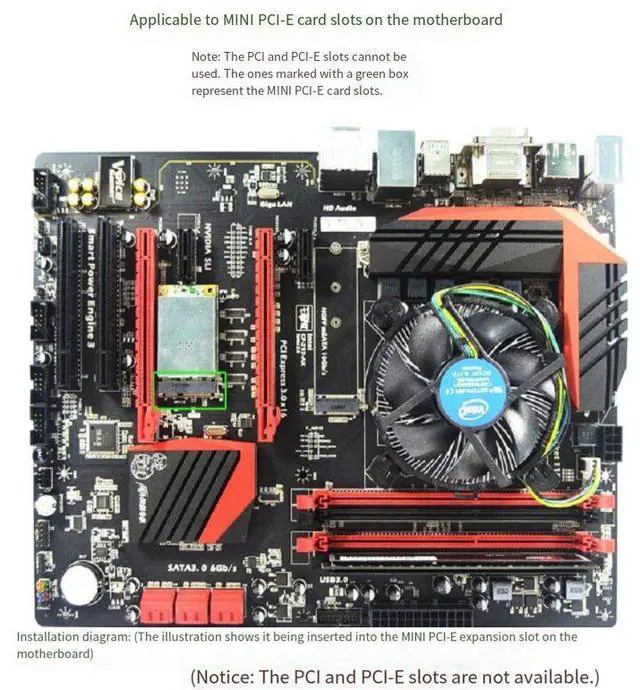

Note: This model is compatible with standard mini PCI-E slots. It cannot be usedfor MSATA or wireless network card slots, nor can it be used for PCI-E slots or PCIslots!!!
The Mini PCI-Express SATA expansion card can provide 2 SATA 3.0interfaces. It adopts the native PCI Express 2.0 bus. This card supportsSATA 6Gbps devices that comply with the SATA 3.0 specification, and isalso backward compatible with SATA 1.5Gbps and 3.0Gbps devices.
