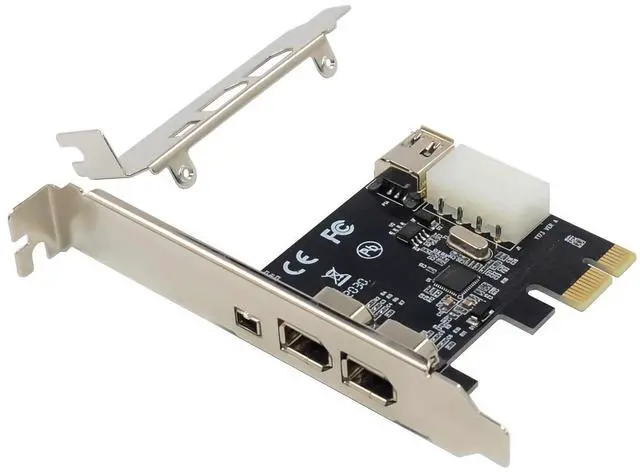

PCIe x1 to 3-Port IEEE 1394 FireWire Card DV / HDV Video Capture Adapter, PCI Express to 1394 Expansion

This card is a black Taiwan VIA chip version. It is fast and stable, supporting DV and HDV. It can handle the highest resolution of 1440*1080 for high-definition cameras.

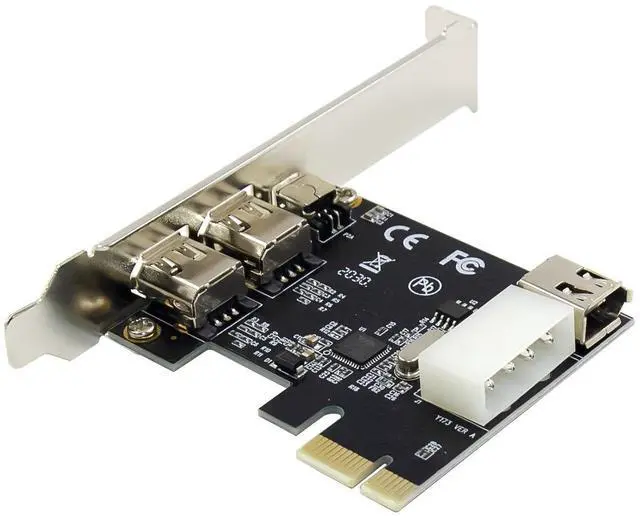

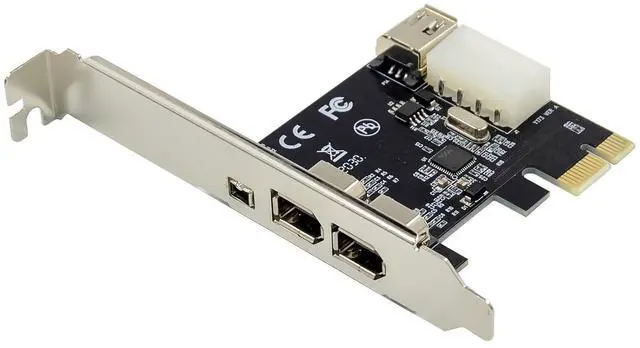

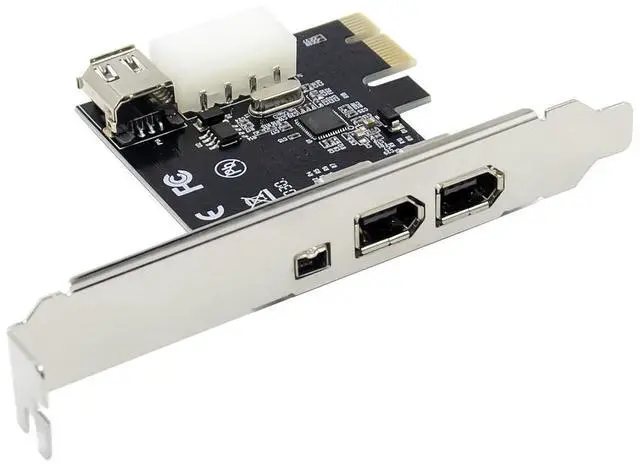

There are two 1394A 6-pin ports and one 1394A 4-pin port externally.

This 1394 card fully complies with the OHCI 1.1 protocol and supports most digital camera brands such as Canon, JVC, Panasonic, SONY, etc. It is an ideal configuration card for connecting external 1394 devices, such as digital cameras, 1394 sound cards, external 1394 hard drives, etc. The excellent compatibility of the VIA chip ensures support for various 1394 devices.

FeaturesDual-chip design, low power consumption, supports OHCI 1.1 standard for asynchronous and synchronous data transmission at various rates of 100/200/400 Mb/s, supports hot plugging of 1394 devices, and can dynamically combine up to 63 nodes on the bus.

Specification 1394 interface: IEEE 1394a-2000 and OHCI V1.1P Data transmission rate: 100/200/400 Mb/s

Supported operating systems: Win ME/Win 2000/Windows XP/VISTA/WIN7/WIN8/WIN10

All slots that support the PCI-E standard include: PCI-E 1X, PCI-E 4X, PCI-E 8X, PCI-E 16X

Note: Does not support PCI interface

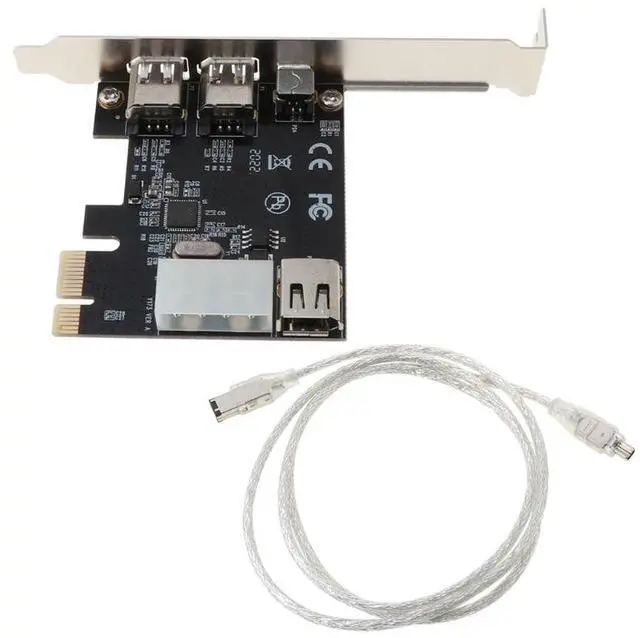

Shipment includes: 1 x 1394 adapter card

One fire wire
