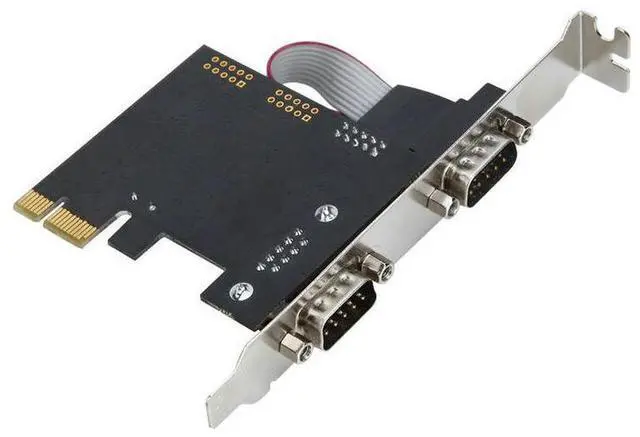

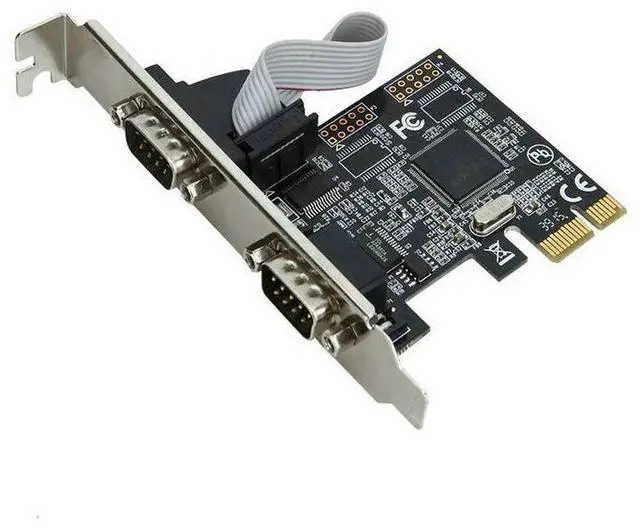

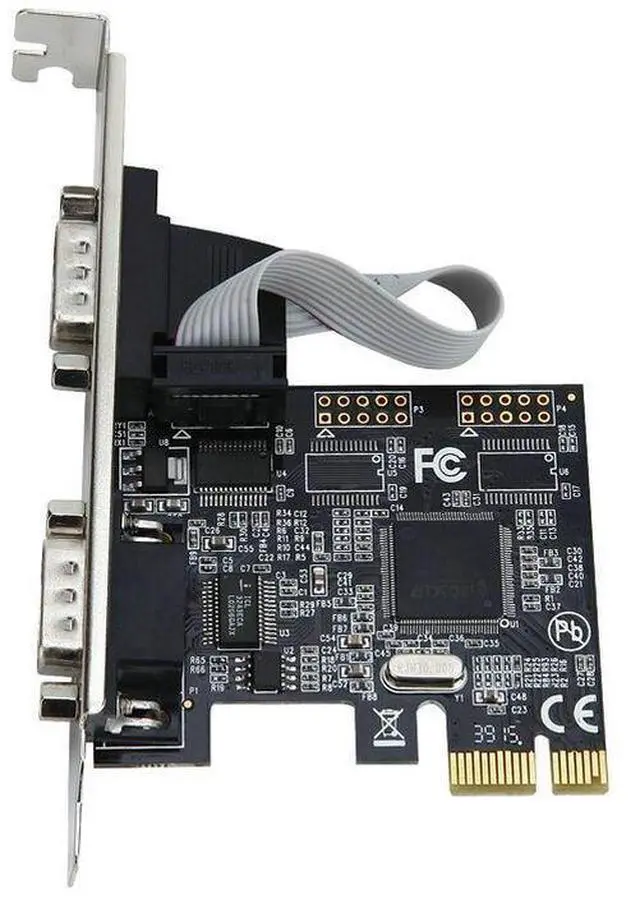

PCIe to 2-Port RS232 Serial Card DB9 Male, Industrial Multi-Port COM Expansion for Desktop PC
- Native PCI-E serial cardPCI-E to 2-port RS232 Serial Card
- This product can obtain 2 serial communication ports through the PCI-E slot of the PC host. Itadopts the AX99100 chip with industry-leading stable and durable performance, strongcompatibility, as wellas excellent electrical performance design and stable and fast communicationcapabilities. It is a wise choice for users in the field of automation engineering.
- The computer mainframe suitable forPCI-E slots can provide 2 standardDB9-pin RS232 serial ports. Each portsupports a full serial modem control witha bidirectional speed of up to 25Mbps,enabling remote wake-up and powermanagement functions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Application fields
Serial-connected devices; serial network/monitoring equipment; data acquisitionsystem POS terminals and industrial PCs; I/O expansion of embedded systems
System RequirementsDriver support: Windows XP/2003 Server/NVista/7/8/10
Linux Kernel 2.6.15 and laterAndroid 1.x/2.x/3.x/4.x/5.x
This product uses the PCI-E X1 interface.
Note: The motherboard must have at least one vacant PCI-Exl or higher slot (x1, x4,x8, x16 are allacceptable, but not for PC!I).
Using the brand-new original AX99100 main control chip, it offers stable performance and high-speed data transmission.
Product Features
- Supports 5V power output on Pin 1 and Pin 9 of the serial port (optional)
- Supports custom baud rates (optional)
- Industrial temperature range: -40°C to 85°C
- Independent power IC provides 5V / 12V output without external power supply
