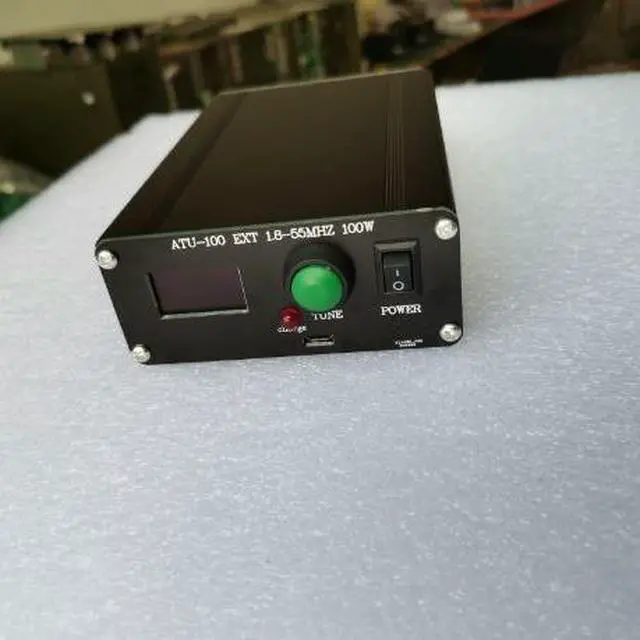

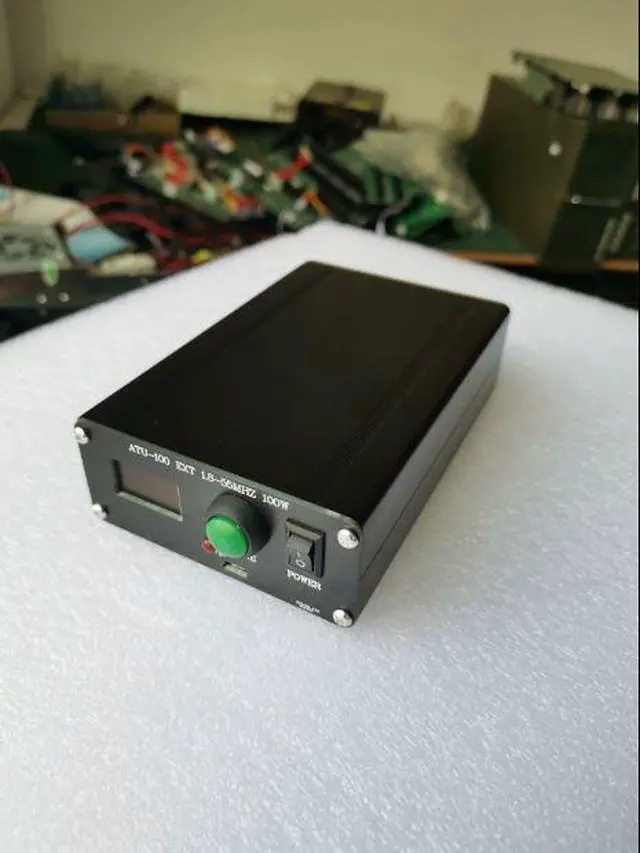

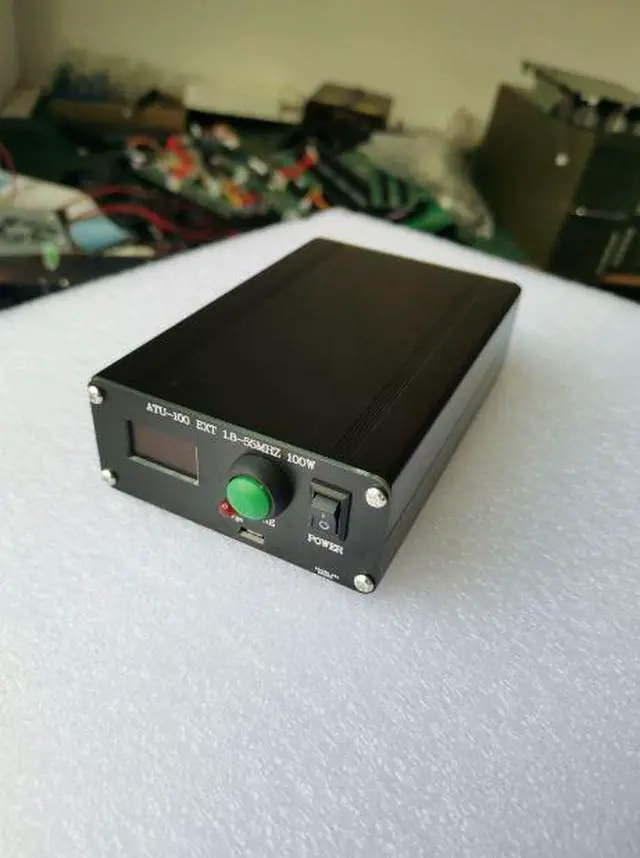

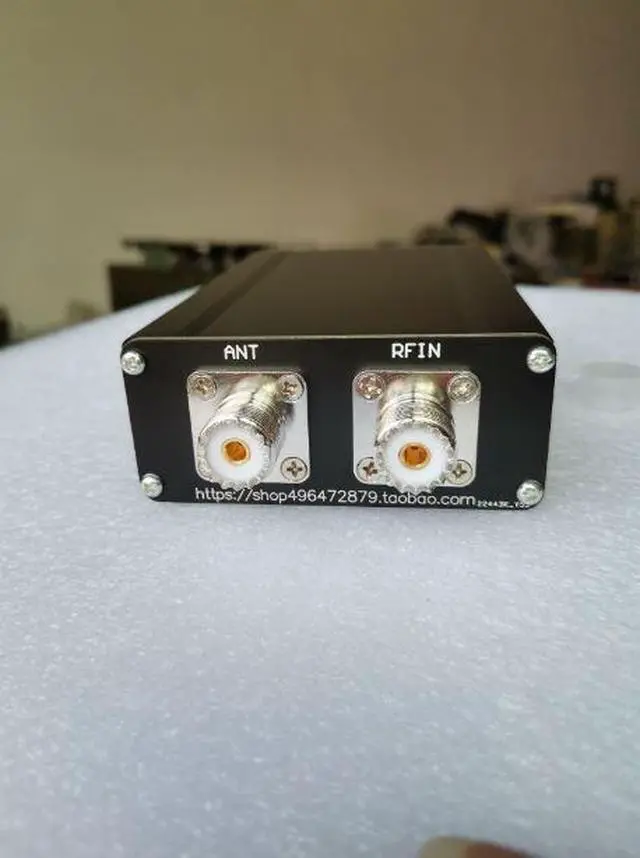

ATU-100 Automatic Frequency Adjustment Charger Version

MINI 0.96-inch OLED ATU100 Automatic Antenna Tuner 100W Automatic Antenna Tuner Charging Complete Version

0.96-inch OLED automatic brightness adjustment

0.96-inch fully automatic frequency tuner

2. The display screen is a 0.96-inch OLED.

3. Circuit schematic diagrams and firmware, please contact the store.

4. Weight: Approximately 300 grams

5. Box packaging size: 15*10*4 cm

The main features of the ATU-100 MINI 7x7 antenna automatic tuner are:

Operating frequency: 1.8 - 55 MHz

Built-in 3.6V lithium battery with a capacity of 1350mAh

USB charging current: 1A

Maximum operating power: 100 watts

Maximum possible measurable power: 150 watts

1 watt: The minimum power that must be set at the beginning is necessary

Minimum possible measurable power: 0.1 watt

Measurement steps for power up to 10W: 0.1 watt

Measurement steps for power above 10W: 1 watt

Power measurement accuracy: 10%

Specified maximum inductance: 8.4 uH capacitance

Minimum installation step size for inductors: 0.05 H

Maximum installation capacity: 1870 pF capacitance

Minimum installation step size: 10 pF
