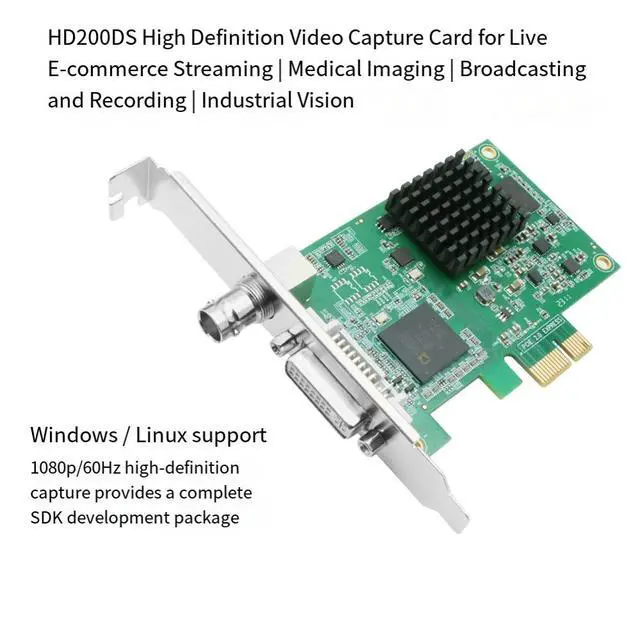

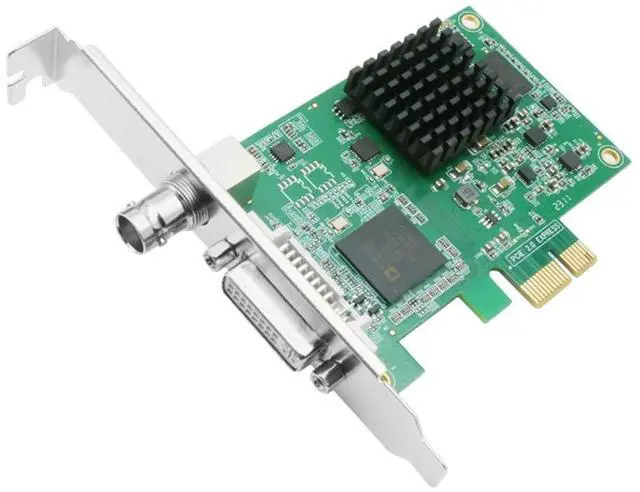

HD200DS PCIe HD Video Capture Card, 1080P, for Medical Imaging, Color Ultrasound, Endoscope, CT, Live Streaming & Conference
- The HD200DS is a high-definition video capture card that supports full HD 1080P at 60Hz. The board uses a high-speed PCI-E 2.0 X1 interface, enabling 1080P full real-time transmission without frame loss at 60 frames per second. It supports SDI, HDMI, DVI, VGA, component video and audio inputs, meeting the needs of various users. Its maximum resolution can reach 1920×1080, and it supports true 10-bit real-time HD full-resolution high-definition uncompressed video capture, achieving true broadcast-level and Hollywood movie-level capture and editing, meeting the needs of real-time monitoring, capturing and screenshotting for various full HD cameras.
- We offer a complete SDK development package. You can choose from various programming languages such as Visual Basic, Visual C++, Delphi, C#, LabVIEW, etc. to develop through the SDK. We provide complete LabVIEW VI functions and test demo programs to facilitate customers in quickly developing related LabVIEW programs. We also offer sample program source codes for calling and detailed function calling instructions, enabling customers to easily develop their own application systems. At the same time, we provide comprehensive development technical support and can customize the SDK according to customer requirements.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Features
Capable of collecting 1 channel of full HD 1080p/60 Hz
The product is developed based on the high-performance Xilinx FPGA design.

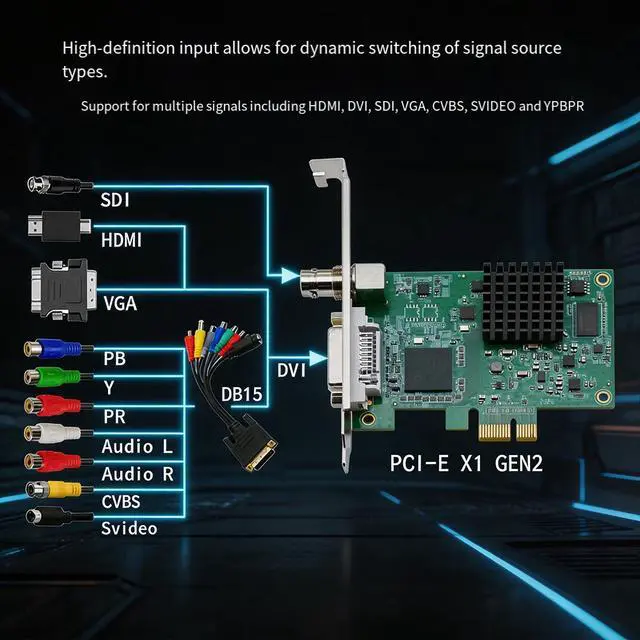

High-definition input allows for dynamic switching of signal source types: HDMI/DVI/SDI/VGA/CVBS/SVIDEO/YPBPR
High-performance DMA transmission function, enabling ultra-low latency video transmission
High-definition input supports automatic detection of video format and automatic detection of the effective area of the video.
FPGA integrates high-quality motion prediction adaptive de-interlacing algorithm
The FPGA integrates a high-quality bilinear image scaling algorithm, enabling multi-level high-quality image scaling.
The FPGA integrates a high-precision color space conversion algorithm and supports output in RGB24 and yuv422 formats.
FPGA integrates 3D video noise reduction, significantly reducing video noise and enhancing image clarity.
FPGA integrates edge enhancement algorithm (vascular enhancement) to improve image quality
FPGA integrates beauty enhancement algorithms, suitable for video conferences and live product promotion broadcasts.
The FPGA integrates the functions of horizontal and vertical image flipping.
FPGA integrates the color gain adjustment function for red, green, and blue colors.
The FPGA integrates algorithms for brightness, contrast, saturation and clarity enhancement, enabling multi-level color adjustment.
Support WebRtc for web-based video calling
Support multiple independent applications to simultaneously access the video capture card
Microsoft AVStream standard driver, supporting DirectShow development
Linux V4l2 driver, capable of supporting standard V4L2 video applications: VLC, Mplayer, etc.
Supporting Intel and Nvidia GPU hardware encoding does not consume CPU resources. It enables an i3 7th generation CPU to encode 1080p H264 and H265 at 60 frames per second.
The device firmware can be upgraded online.

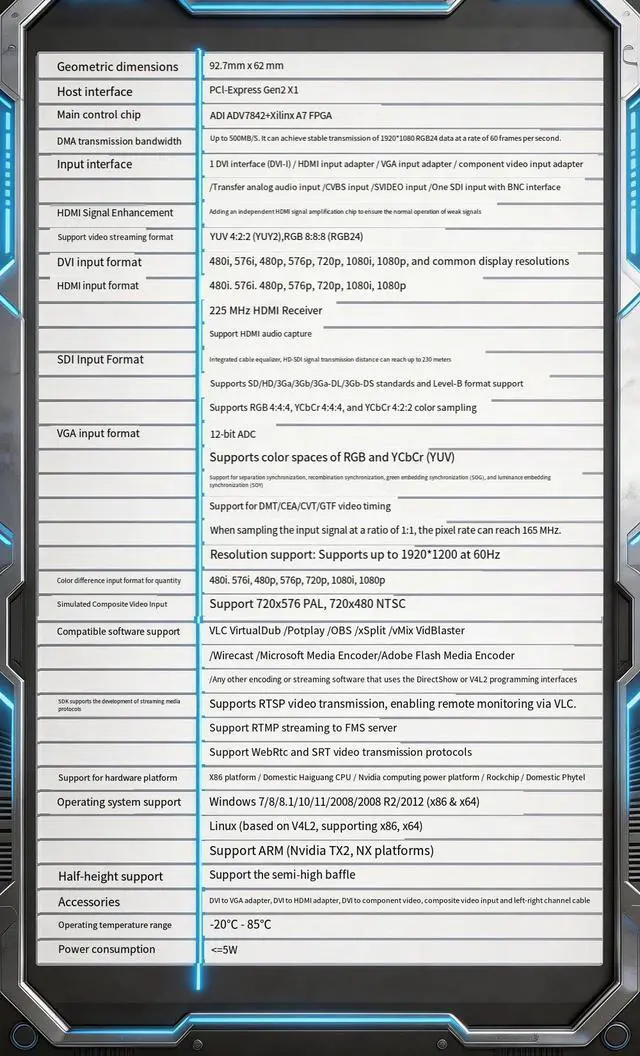

Device connection interface: PCI-Express Gen2 X1
Video ADC bit depth: 12BIT AD conversion
Input interface
An SDI interface supports 3G SDI input.
1 DVI interface (can be converted to VGA, HDMI, CVBS, SVIDEO, component, analog audio stereo input)
DVI-I 1.0 / HDMI 1.4A
DMA transmission bandwidth
Up to 500MB/S, it can achieve stable transmission of 60 frames of 1920*1080 RGB24 data.
SDI format standard
Integrated cable equalizer, HD-SDI signal transmission distance can reach up to 200 meters
Support SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling
Supports 10/12-bit color depth and SDI audio capture
HDMI and DVI Input Format Standards
480i, 576i, 480p, 576p, 720p, 1080i, 1080p and common display resolutions
VGA Input Format Standard
12bit ADC
Support for RGB and YCbCr (YUV) color spaces
Support for separation synchronization, recombination synchronization, green embedding synchronization (SOG), and luminance embedding synchronization (SOY)
Output video stream format: YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24)
Compatibility software support
VLC
OBS
xSplit
VidBlaster
Wirecast
VirtualDub
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other encoding or streaming software that uses the DirectShow or V4L2 programming interfaces
Development language support
VisualC++,VisualBasic,C#,Delphi,QT,Java,Python,Labview,OpenCV
Operating system support
Support x86 and x64 versions for the following operating systems:
Windows 7/8/8.1/10/11/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2, supports x86, x64)
Domestic Wuxi system
Domestic Gaoyuan Kirin Operating System
Host platform support
Intel X86 CPU
Supports ARM (Nvidia TX2/NX platform)
Domestic Phytium CPU
Rockchip Microelectronics
Domestic Haiguang
Product size
92.7mm x 63.4mm
Product power consumption
The maximum current of the 12V power supply: 0.4 A
Maximum power consumption: 5W
Product accessories
Half-height PCI-E panel
DVI to VGA adapter connector
DVI to HDMI adapter
