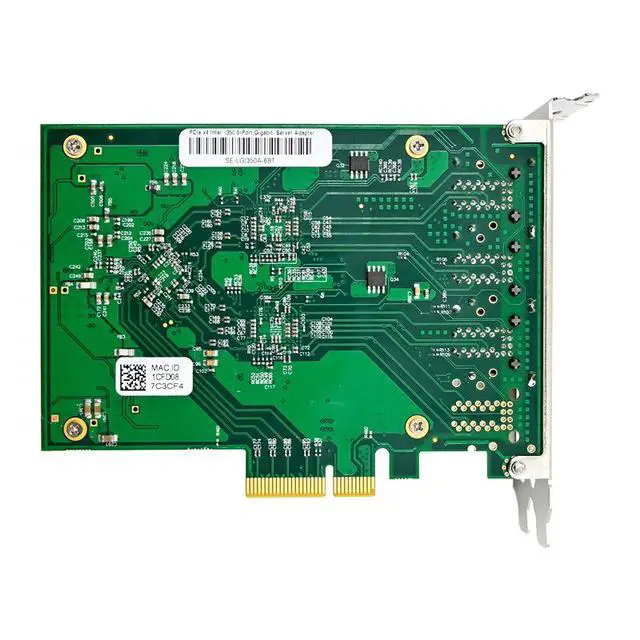

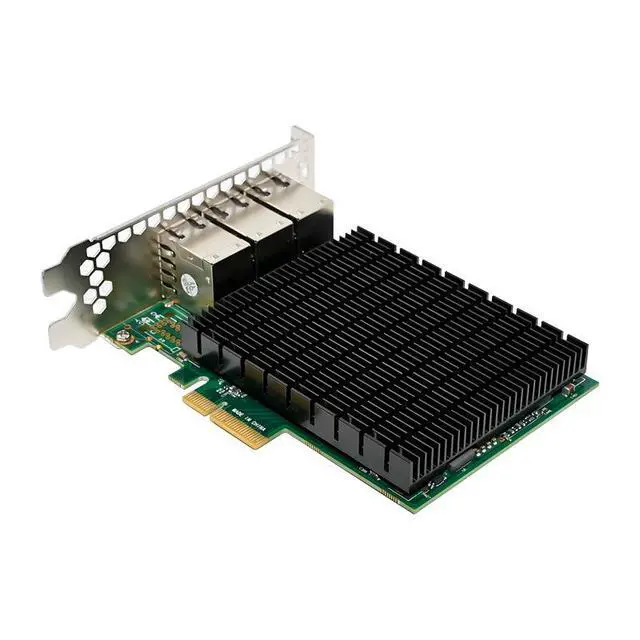

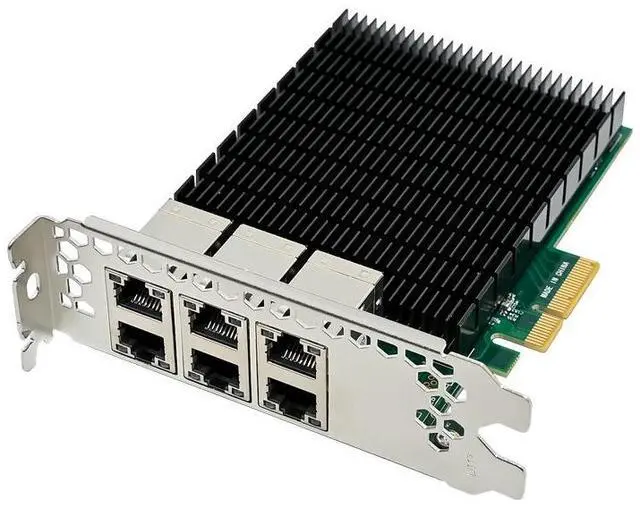

PCIe x4 six-port industrial camera vision network card I350AM4 vision acquisition card supports iSCSI PXE

Overview

Intel® I350 AM4 Ethernet Six-Port Gigabit Industrial Camera Vision Network Card

With performance enhancement features and new power management technologies

The new Intel® Ethernet server adapter I350AM4 series is built upon the historical foundation of Intel's Ethernet products.

Intel continues to maintain its market position with its new generation of PCIe * GbE network adapters. Built with the bridgeless Intel® Ethernet I350AM4 controller, this adapter represents the next step in the evolution of enterprise and data gigabit Ethernet (GbE) networks by introducing a new level. It enhances performance through Intel's control virtualization and unified iSCSI network environment capabilities.

Specification

PCI Express *2.1, x4, Six-port Gigabit Ethernet Network Card

Extensible iSCSI performance, enabling cost-effective SAN connectivity

Compatible and reliable Gigabit Ethernet technology that has been verified.

Flexible I/O virtualization enables port partitioning for up to 32 virtual ports and Quality of Service (QoS) functionality.

The power management functions, including energy-saving Ethernet (EEE) and DMA merging, can improve efficiency and reduce power consumption.

Technical Specifications

Applicable network: Gigabit Ethernet

Main Controller: Intel(R) I350AM4+

Bus type: PCI Express X4

Media interface: 6 x RJ45 copper cables

Transmission rate: 10/100/1000 Mbps

Network topology: 10BASE-T / 100BASE-TX / 1000BASE-T, IEEE 802.1Q VLANs

IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az

- Energy Efficient Ethernet (EEE)

Management functions: IPMI transmission via SMBus or NC-SI, iSCSI boot, Wake on LAN (WoL), PXE remote boot, VLAN filtering

Operating systems: FreeBSD, Linux, VMWare ESXi, Windows 7/Server 2012/Server 2008/ Windows 8/Windows 8.1/Server 2016/Windows 10

Firmware environment

Product Certification: FCC, CE, RoHS

Operating temperature: 0 - 55 (32 - 131)

Storage temperature: -40 ~ 70 (-40 ~ 158 )

Storage humidity: 90% non-condensing relative humidity at 35
