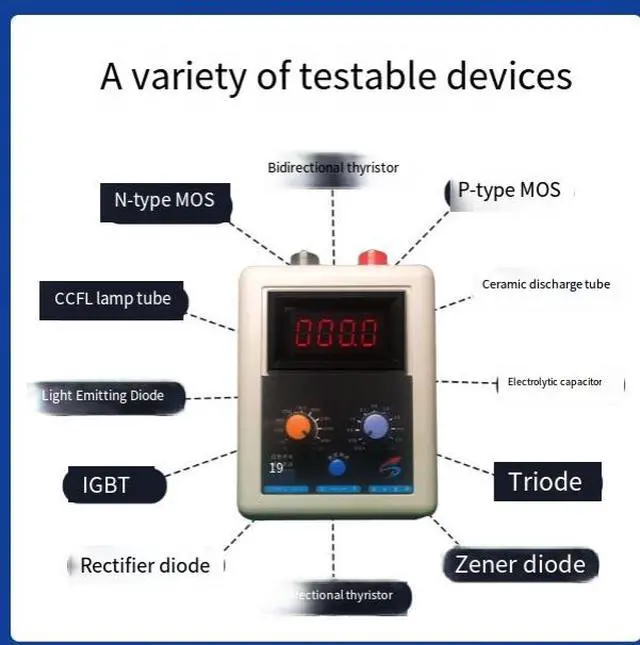

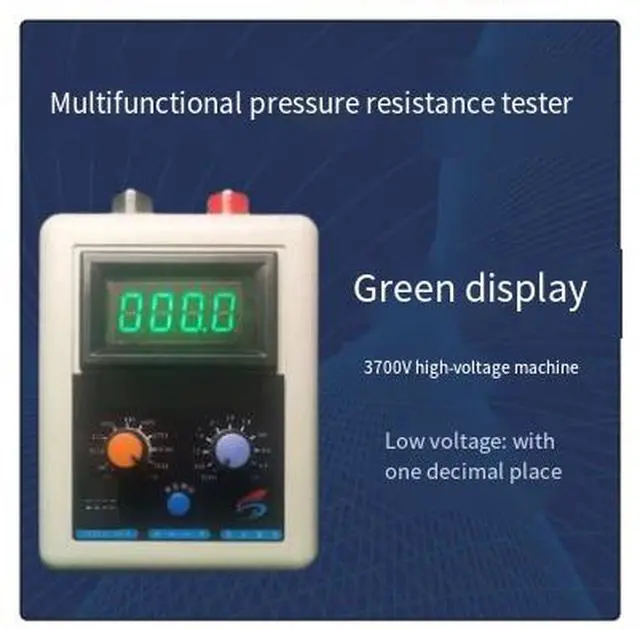

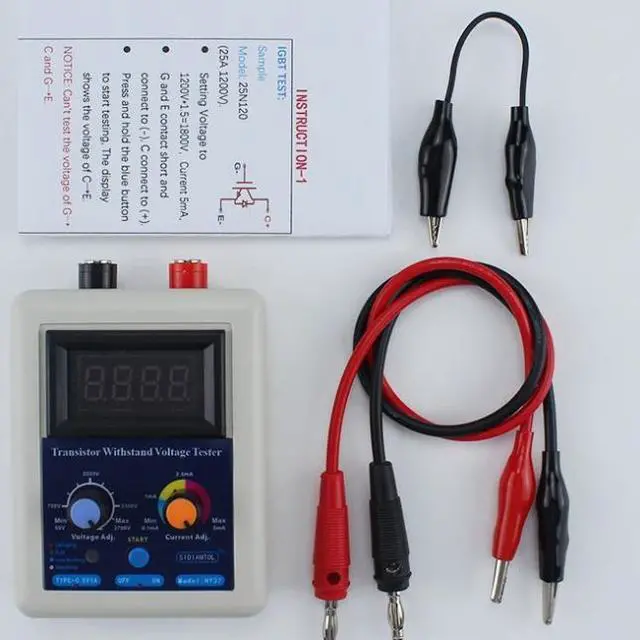

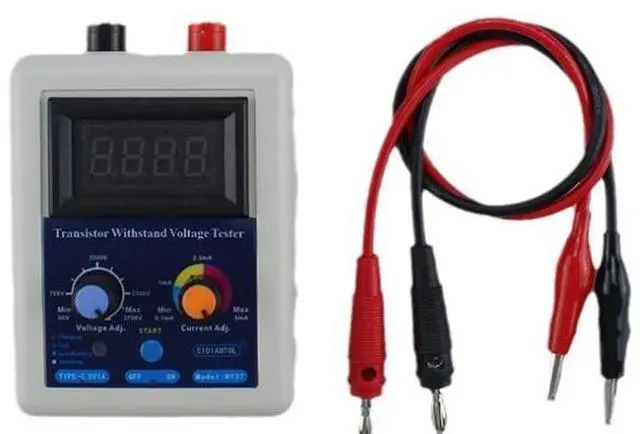

4th generation withstand voltage tester 3700V NMOS, PMOS, triode, IGBT, multi-purpose withstand voltage testing

4th generation withstand voltage tester 3700V NMOS, PMOS, triode, IGBT, multi-purpose withstand voltage testing

Test instrument parameters

[Adjustable Output Voltage] DC 50V - 3700V

[Voltage Display Accuracy] 0.3%

Output voltage error: 50V. Resistance error: Actual output range is 3650 - 3750V.

[Adjustable Output Current] 50uA - 5mA

[Output mode] Constant voltage and constant current output

[Maximum Power] 5

[Voltage meter resolution] 0.1V and below: 100V; above 1V: 100V

[Battery capacity: 700mA. Using A-class lithium battery [charging current]: 550mA]

[Charging Interface] TYPE-C (Charging indicator light is red, full charge indicator light is green) [Charging Adapter] 5V via mobile charger for charging [Protection Function] 80-degree over-temperature protection

(High temperature indicator light - blue)

[Lithium battery under-voltage] The battery is below 3.3V - the blue light will be on.

[Machine dimensions] 98*70*37mm

[Main unit weight] 108 grams
