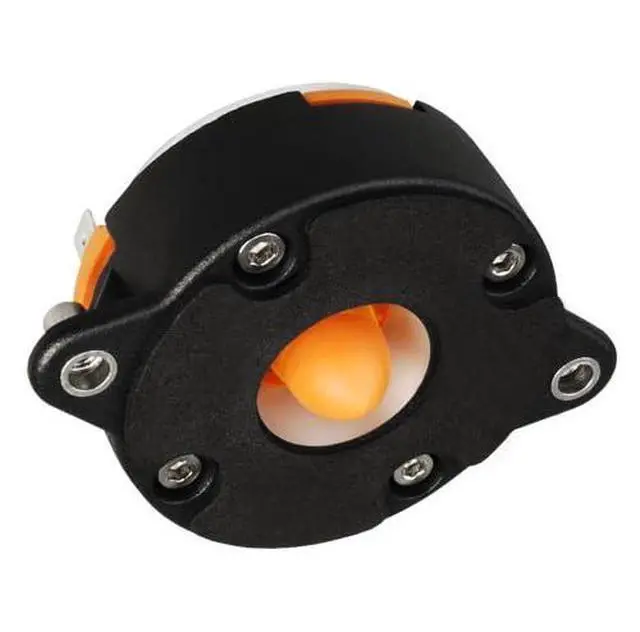

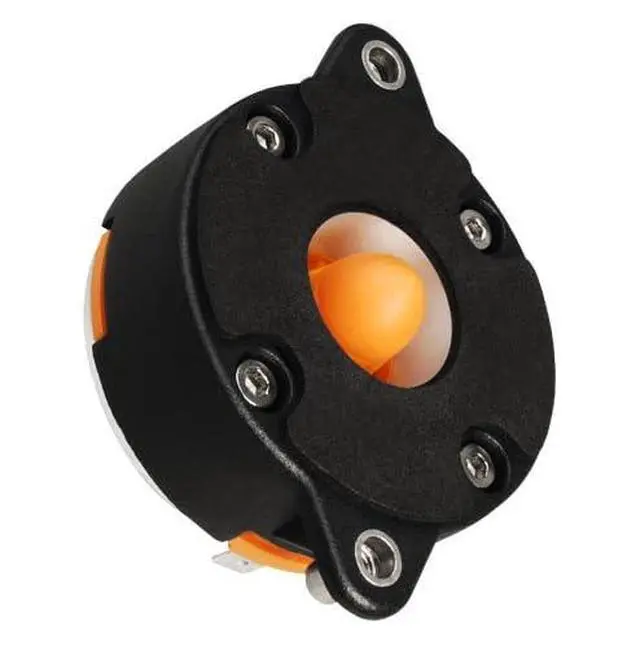

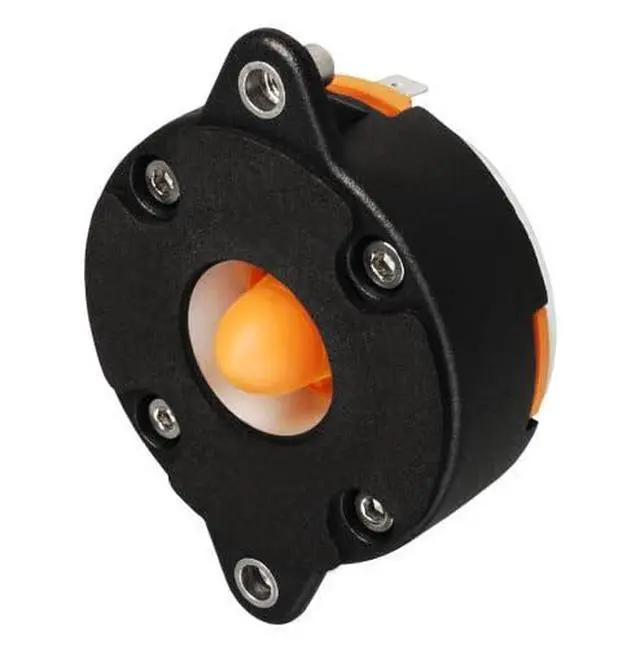

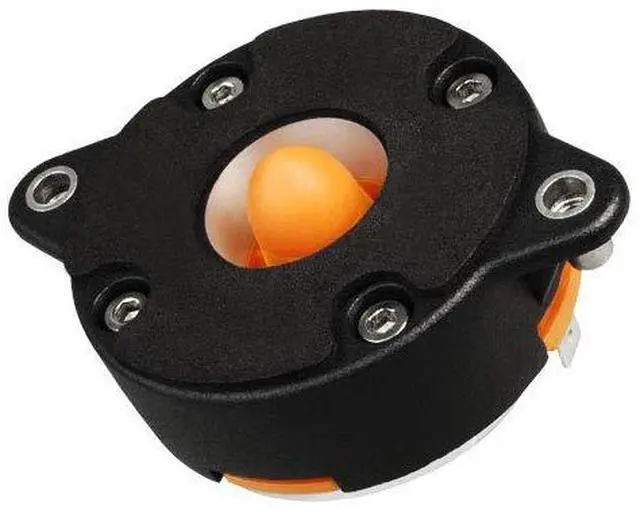

HF102-8 Dome Tweeter With Neodymium Ring Magnet Structure 8 Ohms W/ferrofluid Cooling

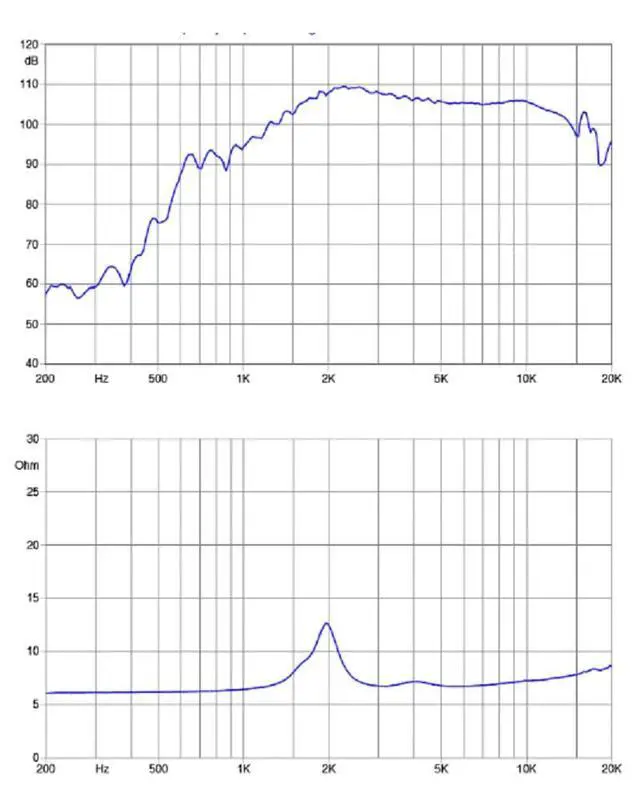

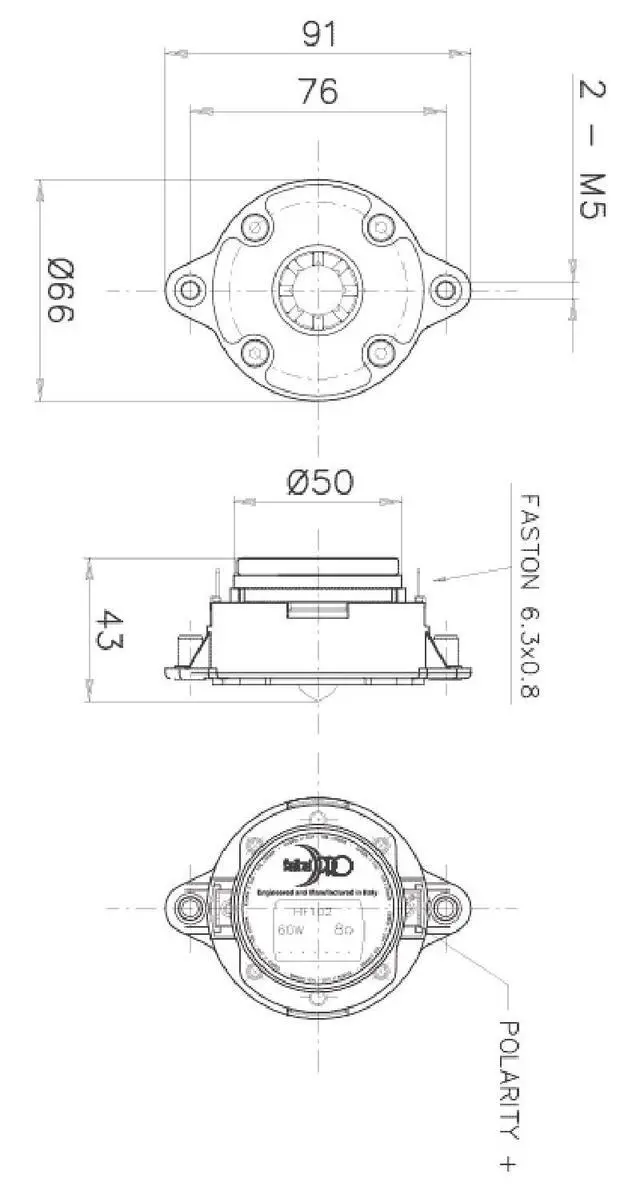

NOMINAL SPECIFICATIONS || Throat Diameter: 25.4 mm (1 in) || Overall Diameter: 91 mm (3.58 in) || 180° Mounting Holes Diameter (2xM6): 76 mm (2.99 in) || Depth: 43 mm (1.69 in) || Net Weight: 300 g (0.7 lb) || Shipping Box (Single carton box): 98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in) || Shipping Weight: 330 g (0.72 lb) || TECHNICAL PARAMETERS || Nominal Impedance: 8 Ohm || Minimum Impedance: 6.6 Ohm || AES Power Handling (1): 30 W || Maximum Power Handling (2): 60 W || Minimum Crossover Frequency (3): 2.6 kHz || Sensitivity (1W/1m) (4): 107 dB || Frequency Range: 1.8÷20 kHz || Voice Coil Diameter: 25 mm (0.98 in) || Winding Material: Al || Former Material: Kapton || TECHNICAL PARAMETERS || Diaphragm Material: Ketone Polymer || Diaphragm Shape: Dome || Winding Depth: 1.7 mm (0.07 in) || Magnetic Gap Depth: 2 mm (0.08 in) || Flux Density: 1.3 T || Magnet: Neodymium Ring || Re: 6 Ohm || Phase Plug Design: Radial || Exit Angle (5): 9° Conical || NET Air Volume filled by HF Driver: 0.1 dm^3 (0.004 ft^3) || Model Number: HF102-8 | HF102 || UPC: 810130951451 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version: 00253937 || The HF102-8 is a high-frequency compression driver crafted for professional audio applications. This driver is recognized for its high sensitivity and broad frequency range, making it appropriate for high-quality professional audio systems where clarity and detail in the high-frequency range are essential. NOTES || Driver mounted on a 1" 50° x 40° Horn || Ferrofluid added in air gap || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) 12 dB/oct or higher slope high-pass filter || (4) Averaged within the frequency range || (5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn
