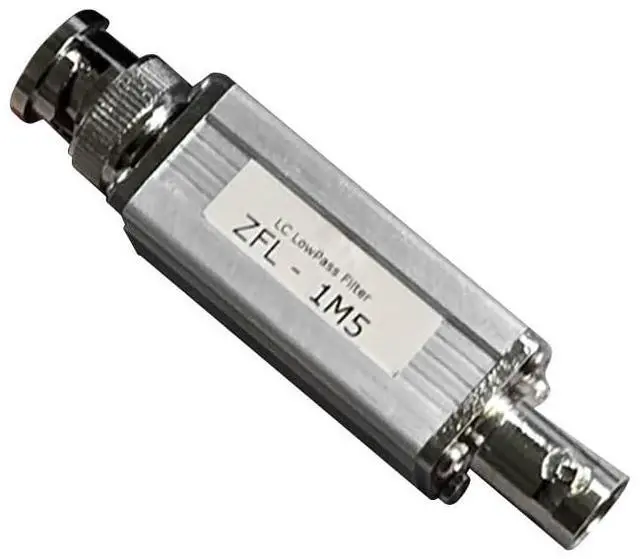

Low-Pass Filter BNC Male to Famale Interface LC Discrete Component Construction Compact for High-selectivity Applications (1.5MHz)
- Nominal impedance: 50 . Maximum Power Handling: 5W (37dBm). Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer Pin).; 3.5MHz Insertion Loss: 1.5 dB @ DC - 2.5 MHz, 2.0 dB @ 2.5 - 3.5 MHz, >40 dB @ 8.0 MHz, >50 dB @ 10 - 700 MHz.; 7MHz Insertion Loss: <= 1.0 dB @ DC - 3.5 MHz, 1.5 dB @ 3.5 - 7.0 MHz, >40 dB @ 15 MHz, >50 dB @ 20-1000 MHz.; 1.5MHz Insertion Loss: <= 1.0 dB @ DC-1.5 MHz, >40 dB @ 7.0 MHz, >50 dB @ 10-300 MHz.; Applications:Laboratory use,Other high-selectivity applications. Compact size, flat passband, high out-of-band rejection.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Low-Pass Filter BNC Male to Famale Interface LC Discrete Component Construction Compact for High-selectivity
Applications Features: Compact size, flat passband, high out-of-band rejection
Applications: Laboratory use, Other high-selectivity applications
Nominal impedance: 50
Maximum Power Handling: 5W (37dBm)
Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer
Pin) 3.5MH z:
Model: ZFL-3M5
Insertion loss: 1.5 dB @ DC - 2.5 MHz 2.0 dB @ 2.5 - 3.5 MHz >40 dB @ 8.0 MHz >50 dB @ 10 - 700 MHz
Frequency Response Plot: Sweep
range: 1-1000MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10dB per division.
7MHz:
Model: ZFL-07
Insertion loss: <= 1.0 dB @ DC - 3.5 MHz 1.5 dB @ 3.5 - 7.0 MHz > 40 dB @ 15 MHz >50 dB @ 20-1000 MHz
Frequency Response Plot: Sweep
range: 1-1000 MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10 dB per division.
1.5MH z:
Model: ZFL-1M5
Insertion Loss: <= 1.0 dB @ DC-1.5 MHz > 40 dB @ 7.0 MHz >50 dB @ 10-300 MHz

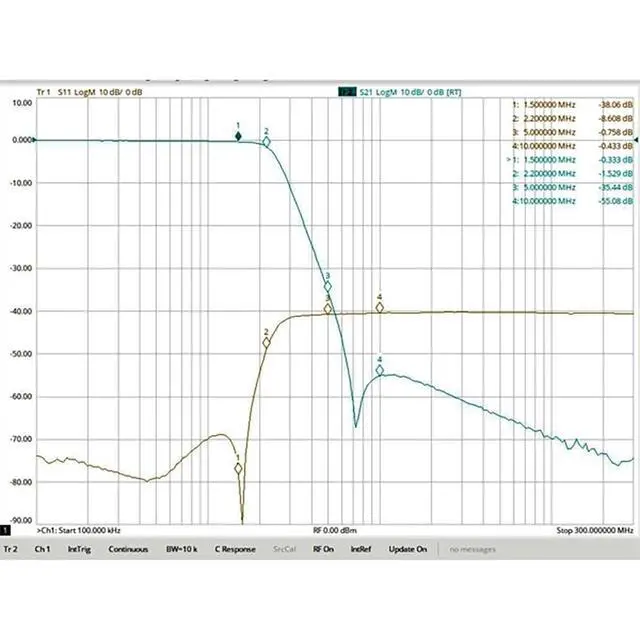

Frequency Response Chart: Scan
range: 0.1 -300MHz logarithmic scale; blue-green line indicates transmission loss; brown line indicates reflection loss; vertical scale increments are 10dB per division.
Applications Features: Compact size, flat passband, high out-of-band rejection
Applications: Laboratory use, Other high-selectivity applications
Nominal impedance: 50
Maximum Power Handling: 5W (37dBm)
Interfaces: BNC-M (Male Connector, Inner Pin), BNC-F (Female Connector, Outer
Pin) 3.5MH z:
Model: ZFL-3M5
Insertion loss: 1.5 dB @ DC - 2.5 MHz 2.0 dB @ 2.5 - 3.5 MHz >40 dB @ 8.0 MHz >50 dB @ 10 - 700 MHz
Frequency Response Plot: Sweep
range: 1-1000MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10dB per division.
7MHz:
Model: ZFL-07
Insertion loss: <= 1.0 dB @ DC - 3.5 MHz 1.5 dB @ 3.5 - 7.0 MHz > 40 dB @ 15 MHz >50 dB @ 20-1000 MHz
Frequency Response Plot: Sweep
range: 1-1000 MHz logarithmic scale; orange line indicates transmission loss, brown line indicates reflection loss; vertical scale is 10 dB per division.
1.5MH z:
Model: ZFL-1M5
Insertion Loss: <= 1.0 dB @ DC-1.5 MHz > 40 dB @ 7.0 MHz >50 dB @ 10-300 MHz
Frequency Response Chart: Scan
range: 0.1 -300MHz logarithmic scale; blue-green line indicates transmission loss; brown line indicates reflection loss; vertical scale increments are 10dB per division.
