be quiet! Power Zone 2 1000W ATX 12V 3.1 Power Supply | 80 Plus Platinum and Cybenetics Platinum Efficiency | BP008US
be quiet! Power Zone 2 1000W ATX 12V 3.1 Power Supply | 80 Plus Platinum and Cybenetics Platinum Efficiency | BP008US
(12)
  •
  • $149.90 –
  • Save: 6%
Sponsored

You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.

  • $172.99
  • Free 30-day Returns
  • Limit 99999 per customer.
    Sold by GoBeRotie
    Hot Seller
    4.5 (15 seller ratings)

    Shipped by GoBeRotie

    Price alert
    Add to wish list
    Shop it at NeweggBusiness.

    Meet Your Seller

    GoBeRotie
    Shop All Kb Electronics Products | Visit GoBeRotie Store
    FOLLOW

    KBIC-120 (9429) DC Drives Chassis

    Be the first to review this product...
    • KBIC-120 KB Electronics 115 VAC, thru 0
    • 5 HP, 90 VDC ARM (9429) Plug-in Horsepower Resistor Required The control must have a Plug-in Horsepower Resistor installed; purchased separately Plug-in Line Fuse Optional Optional fuse mounting kit
    • Plug-in Armature Fuses purchased separately The KB Electronics KBIC Controls PM, Shunt and AC/DC motors over a range of 1/100 - 3 HP with only a few models
    • All models can be used on a wide range of motor horsepower by inserting KBs exclusive Plug-In Horsepower Resistor
    • Speed range is 50:1 with load regulation of 1%
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

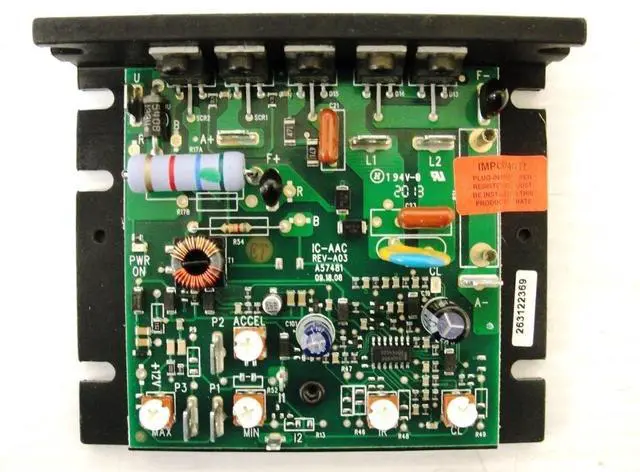

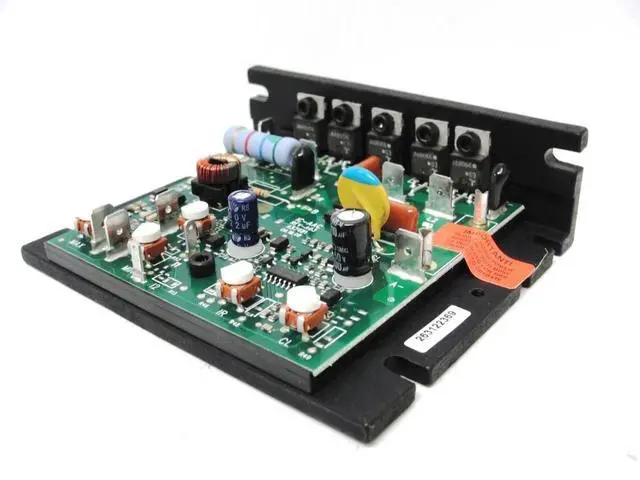

    THIS DRIVE WILL NOT OPERATE UNLESS A PLUG-IN HORSEPOWER RESISTOR THAT MATCHES YOUR MOTOR'S HORSEPOWER AND VOLTAGE IS INSTALLED. Horsepower resistors are sold separately. The KBIC-120 chassis-mounted DC drive is a 115 VAC rated 9 Amps RMS @ 45C. The control is designed for 90 VDC PM, Shunt and AC/DC motors. It will control motors between 1/100-1/2 HP ( 1.0 HP w/aux. Heat sink) by inserting the proper Plug-in Horsepower Resistor. Speed range is 50:1 with load regulation of 1%. Features include Auto Inhibit, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL.

    Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). This control is available worldwide from stocking KB distributors. UL, CSA, CE. Patented.
