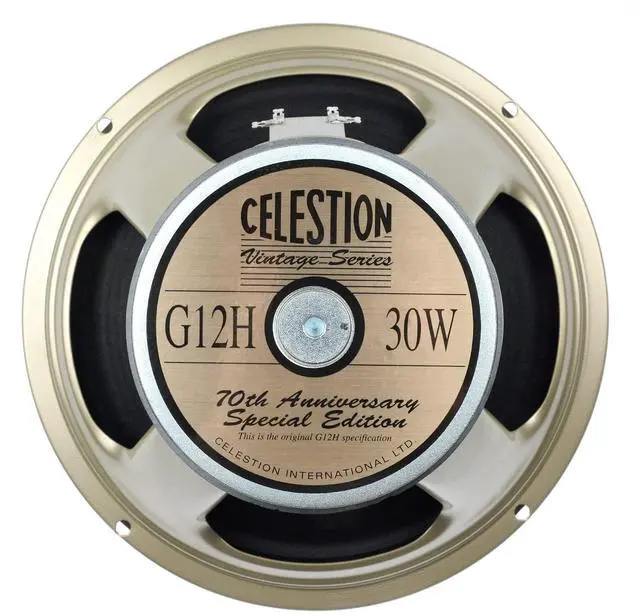

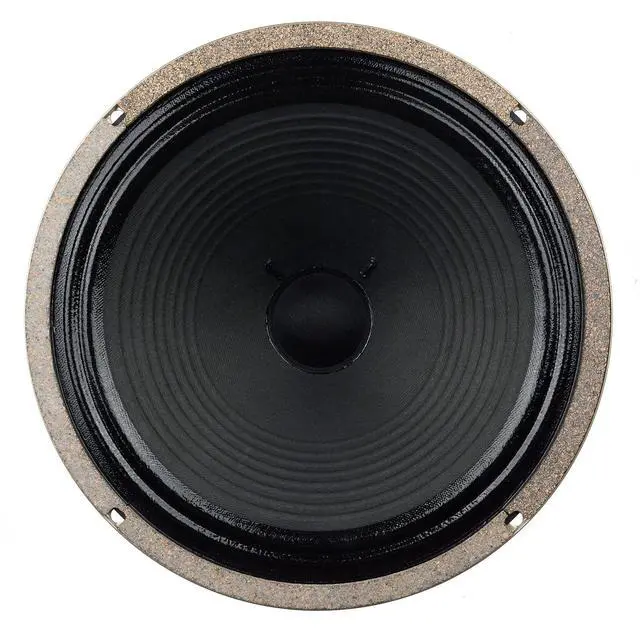

CELESTION T4533 30-Watt 70th Anniversary G12H 12-inch Classic Rock Guitar 8 Ohm Replacement Speaker

CELESTION T4533 30-Watt 70th Anniversary G12H 12-inch Classic Rock Guitar 8 Ohm Replacement Speaker ^^^^ SPECIFICATIONS ^^^^ *
Brand: CELESTION ^^^^ *
Model Number: T4533 ^^^^ *
Nominal diameter: 305mm / 12in ^^^^ *
Power rating: 30W ^^^^ *
Rated impedance: 8 ^^^^ *
Sensitivity: 100dB ^^^^ *
Chassis type: Pressed steel ^^^^ ^^^^ SPECIFICATIONS ^^^^ *
Magnet type: Ceramic ^^^^ *
Magnet weight: 1.42 kg / 50oz ^^^^ *
Voice coil diameter: 1.75 in / 44mm ^^^^ *
Voice coil material: Round copper ^^^^ *
Frequency range: 75-5000Hz ^^^^ * Resonance frequency, Fs: 85Hz ^^^^ * DC resistance, Re: 6.9 or 11.8 ^^^^ ^^^^ MOUNTING INFORMATION ^^^^ *
Cut-out diameter: 283mm / 11.1 in ^^^^ *
Diameter: 309mm / 12.2 in ^^^^ *
Magnet structure diameter: 156mm / 6.1 in ^^^^ *
Mounting hole dimensions: 7.9 mm / 0.31 in ^^^^ *
Mounting hole PCD: 297mm / 11.7 in ^^^^ *
Number of mounting holes: 4 ^^^^ *
Chassis depth (inc gasket): 97mm / 3.79 in ^^^^ *
Magnet depth: 38mm / 1.51 in ^^^^ *
Overall depth: 135mm / 5.3 in ^^^^ *
Unit weight: 4.7 kg / 10.4 lb ^^^^ ^^^^ Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock. With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. ^^^^ ^^^^ Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the boutique amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.
