SATLINK ST-6986 Satellite TV Receiver DVB-S/S2/T/T2/C Combo Meter MPEG-4 HD H.265 (10bits) Spectrum Spectrum Analyzer Digital Satellite Finder Meter
- ST-6986 is a DVB-S/S2X/T/T2/C and MPEG-2, H.264/AVC,H.265/HEVC (10 Bit) compliant handheld combo meter. With is compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, attenna signal and cable signal to residential homes or multi-dwelling units. ST-6986 can only support 1080P and cannot support 4K.
- 7 Inch High Definition TFT LCD Screen(1024*600) .Fully DVB-S/S2/S2X,T/T2/C, MPEG-2/MPEG-4 compliant,MPEG-2 / H.264/H.265 (10 Bit) Hardware decod-ing.

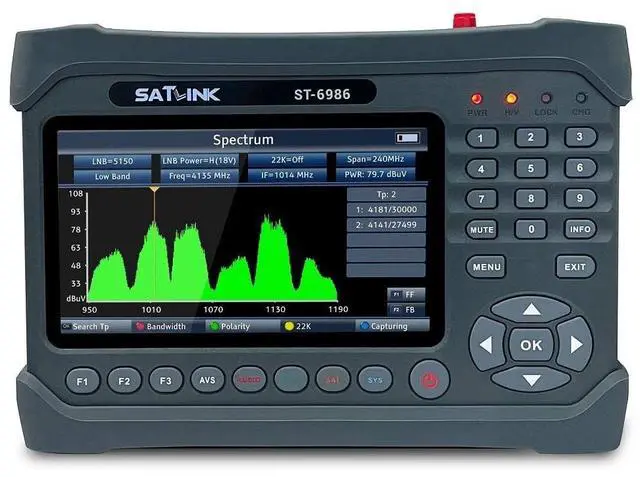

- Supports Constellation analyzer. Supports Spectrum analyzer. Supports scan of Auto Blind, Manual ,NIT.Supports and Light Alarm for Locking Signal
- Auto Calculate Angle of AZ ,EL ; Supports DISEQC 1.0/1.1/1.2 ,Unicable, 0/22khz Tone; Speaker Integrated. Stereo pairs of speakers; Supports both AV out and AV in; Supports HDMI IN/OUT out and AV in
- Supports Wi-Fi and Ethernet conne
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

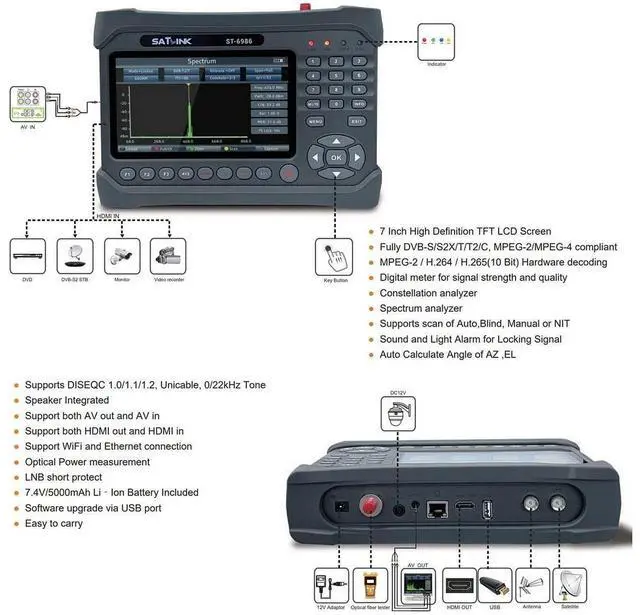

Feature 7 Inch High Definition TFT LCD Screen (1024*600) Fully DVB-S/S2/S2X, T/T2/C, MPEG-2/MPEG-4 compliant MPEG-2 / H. 264/H. 265 (10 Bit) Hardware decoding Supports Constellation analyzer Supports Spectrum analyzer Supports scan of Auto Blind, Manual, NIT Supports and Light Alarm for Locking Signal Auto Calculate Angle of AZ, EL Supports DISEQC 1.0 / 1.1 / 1.2, Unicable, 0/22khz Tone Speaker Integrated Supports both AV out and AV in Supports HDMI IN/OUT out and AV in Supports Wi-Fi and Ethemet connection Optical power measurement LNB short protect 7.4V /5000mAh Li-ion Battery included Software upgrade via USB port Easy to carry
Specification Transmission Standards: DVB-S/S2/S2X, DVB-T/T2/C, MPEG-2/H. 264/AVC, H. 265/HEVC (10 Bit) Satellite Input/Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz Signal
Input Level: -65 to-25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Imax 400mA
Demodulation Type: QPSK, 8PSK, 16APSK
Symbol Rate: 2
Specification Transmission Standards: DVB-S/S2/S2X, DVB-T/T2/C, MPEG-2/H. 264/AVC, H. 265/HEVC (10 Bit) Satellite Input/Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz Signal
Input Level: -65 to-25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Imax 400mA
Demodulation Type: QPSK, 8PSK, 16APSK
Symbol Rate: 2
