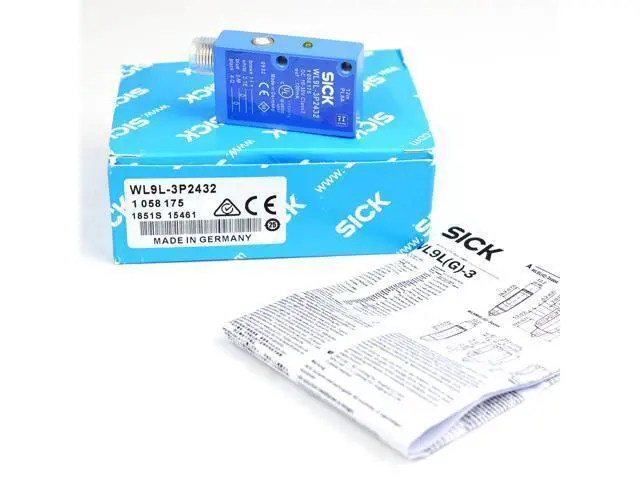

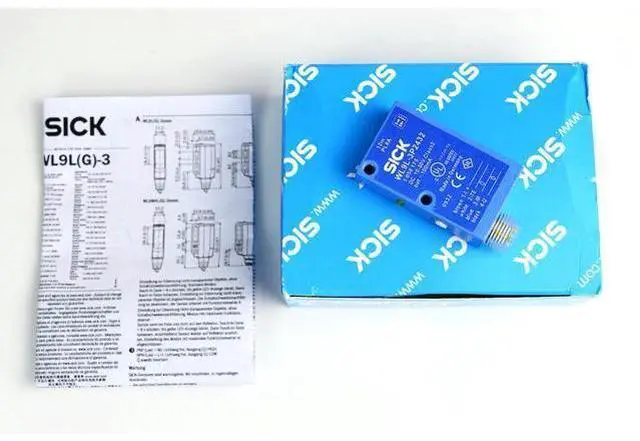

SICK WL9L-3P2432 Small Photoelectric Sensors PNP,New
Limited time offer, ends 07/19 By Kepler Forge
- SICK WL9L-3P2432 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 12.2 mm x 52.2 mm x 23.6 mm Housing design (light emission) Rectangular Mounting hole M3 Sensing range max. 0 m... 12 m 1) Sensing range 0 m... 8 m 1) Type of light Visible red light Light source Laser 2) Light spot size (distance) Ø 1 mm (500 mm) Wave length 650 nm Laser class 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11 ) Adjustment Single teach-in button Special applications Detecting small objects MECHANICS/ELECTRONICS Supply voltage 10 V DC.
.. 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP 4) Output function Complementary Switching mode Light/dark switching 4) Output current Imax. = 100 mA Response time = 0.5 ms 5) Switching frequency 1, 000 Hz 6) Connection type Male connector M12, 4-pin Circuit protection A 7) B 8) C 9) Protection class III Weight 13 g Polarisation filter? Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature 10 °C... +50 °C Ambient operating temperature extended 30 °C.
.. +55 °C 10) 11) Ambient storage temperature 30 °C... +70 °C UL File No. NRKH. E181493
.. 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP 4) Output function Complementary Switching mode Light/dark switching 4) Output current Imax. = 100 mA Response time = 0.5 ms 5) Switching frequency 1, 000 Hz 6) Connection type Male connector M12, 4-pin Circuit protection A 7) B 8) C 9) Protection class III Weight 13 g Polarisation filter? Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature 10 °C... +50 °C Ambient operating temperature extended 30 °C.
.. +55 °C 10) 11) Ambient storage temperature 30 °C... +70 °C UL File No. NRKH. E181493
