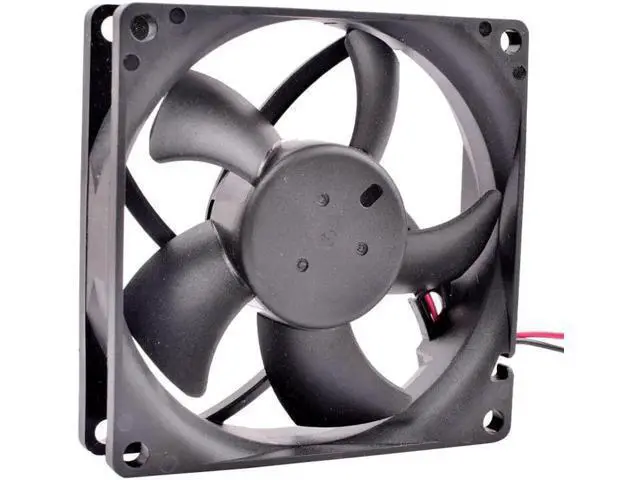

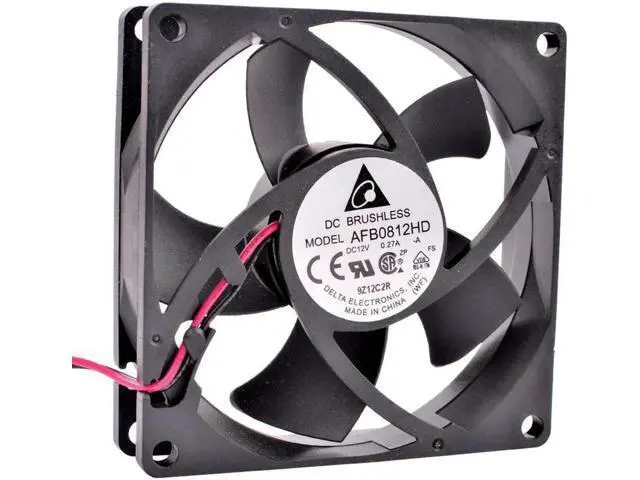

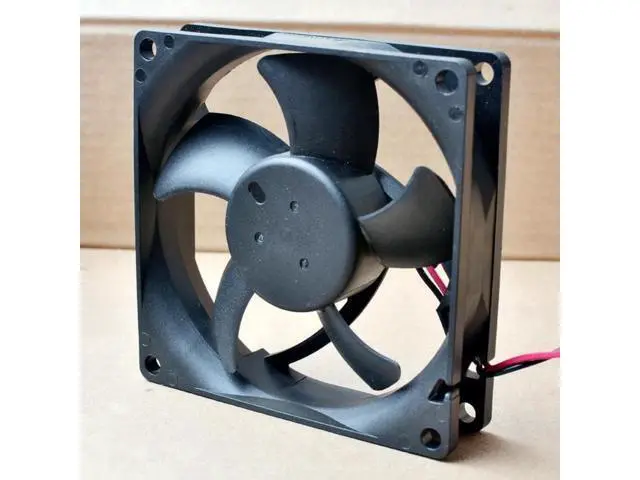

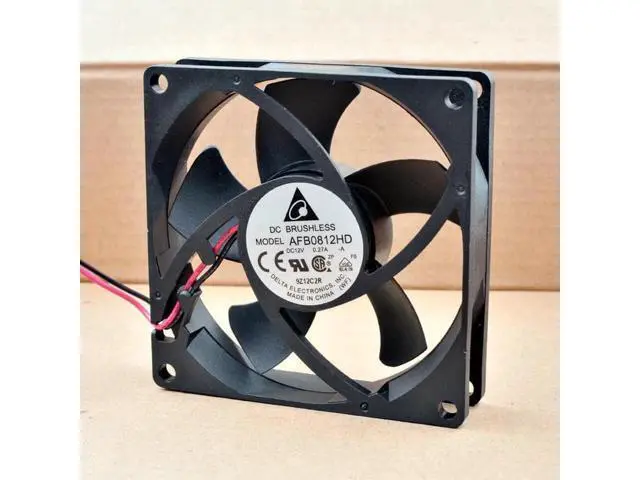

AFB0812HD 8cm 80mm 80x80x20mm 8020 12V 0.27A 2 line power supply power amplifier device cooling fan
- Series: AFB; Part status: Active; Voltage-Rated: 12VDC; Size/Size: Square-80mmLx80mmH; Width: 20.00mm; Airflow: 49.3CFM (1.38m/min); Static pressure: 0.249inH2O(62.0Pa); Bearing type: Ball; Fan type: Tubeaxial; Features: LockedRotorProtection; Noise: 40.0dB(A); Power (W): 2.64W; RPM: 4200RPM; Termination: 2WireLeads; Intrusion protection:-; Working temperature: 14~158F (-10~70C); ApprovalAgency: CECSAURVDE; Weight: 0.161lb (73.03g)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series: AFB
Part status: Active
Voltage-Rated: 12VDC
Size/Size: Square-80mmLx80mmH
Width: 20.00 mm
Airflow: 49.3CFM ( 1.38 m/min)
Static pressure: 0.249 inH2O( 62.0P a)
Bearing type: Ball
Fan type: Tubeaxial
Features: LockedRotorProtection
Noise: 40.0 dB (A)
Power (W): 2.64W
RPM: 4200RPM
Termination: 2WireLeads
Intrusion protection: -
Working temperature: 14~158F (-10~70C)
ApprovalAgency: CECSAURVDE
Weight: 0.161 lb ( 73.03 g)
Part status: Active
Voltage-Rated: 12VDC
Size/Size: Square-80mmLx80mmH
Width: 20.00 mm
Airflow: 49.3CFM ( 1.38 m/min)
Static pressure: 0.249 inH2O( 62.0P a)
Bearing type: Ball
Fan type: Tubeaxial
Features: LockedRotorProtection
Noise: 40.0 dB (A)
Power (W): 2.64W
RPM: 4200RPM
Termination: 2WireLeads
Intrusion protection: -
Working temperature: 14~158F (-10~70C)
ApprovalAgency: CECSAURVDE
Weight: 0.161 lb ( 73.03 g)
