$18.78
Ships from China.
Meet Your Seller

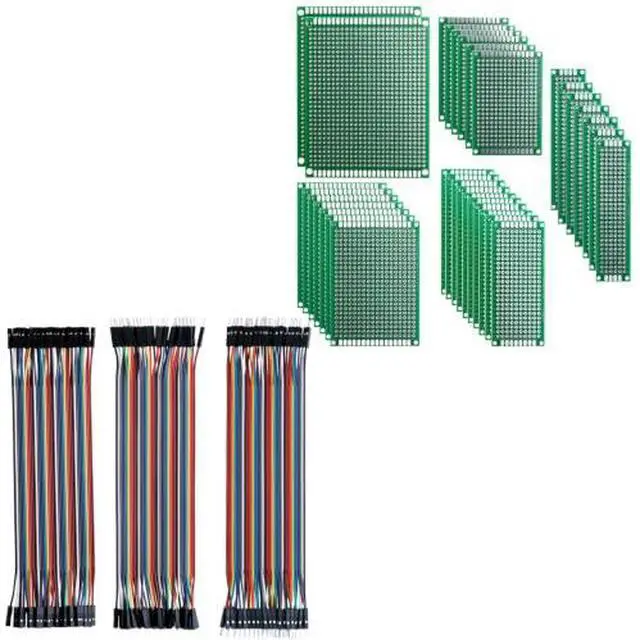

32-Piece Double-Sided PCB Prototype Boards + 120-Piece Dupont Jumper Wires
- Move from temporary circuit testing to permanent soldered prototypes with this PCB board and Dupont jumper-wire bundle. The PCB kit includes 32 double-sided prototype boards in five different sizes, allowing users to select an appropriate layout for small modules, medium-sized circuits, or more complex assemblies. Each board is made from durable 1.6mm FR4 fiberglass and includes plated through-holes that support soldering from either side. Four mounting holes positioned near the corners of the boards make it easier to secure completed circuits inside enclosures, on project bases, or within larger assemblies. The included 120-piece jumper-wire kit contains 40 male-to-male, 40 male-to-female, and 40 female-to-female wires. These reusable wires are useful during the early design and testing stage, allowing users to connect breadboards, controller boards, modules, and pin headers before transferring the verified circuit to a PCB. This combination supports an efficient prototyping workflow: build and troubleshoot the circuit using temporary connections, confirm that the design performs as intended, and then solder the final layout onto a durable prototype board. Soldering tools, solder, a controller board, a breadboard, electronic components, and safety equipment are not included. Bundle Includes: 32 x double-sided PCB prototype boards in five sizes 40 x male-to-male Dupont jumper wires 40 x male-to-female Dupont jumper wires 40 x female-to-female Dupont jumper wires
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
From Circuit Testing to Permanent ProjectsCombine reusable Dupont jumper wires with 32 double-sided PCB prototype boards to test connections, refine a circuit design, and then transfer the finished layout to a soldered, more permanent project; 32 Boards in Five Practical SizesThe PCB kit includes five board sizes for everything from compact modules to larger electronic assemblies, giving makers more flexibility when selecting a board for custom circuits and DIY devices; Durable Double-Sided FR4 ConstructionMade from sturdy 1.6 mm FR4 fiberglass material, the boards feature plated through-holes and solderable pads on both sides for reliable component mounting and electrical connections; 120 Wires in Three ConfigurationsThe included male-to-male, male-to-female, and female-to-female Dupont wires can connect breadboards, controller boards, modules, displays, and pin headers while testing a circuit before soldering; Designed for Prototyping and DIY ElectronicsSuitable for students, technicians, makers, and electronics hobbyists developing custom control boards, sensor devices, LED circuits, robotics modules, repairs, and one-off experimental projects
