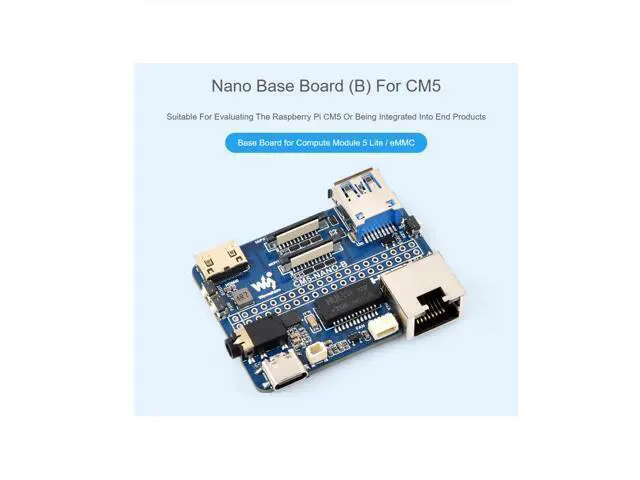

Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite/eMMC,CM5 Mini Expansion Board,Integrate Multiple Peripheral Interfaces

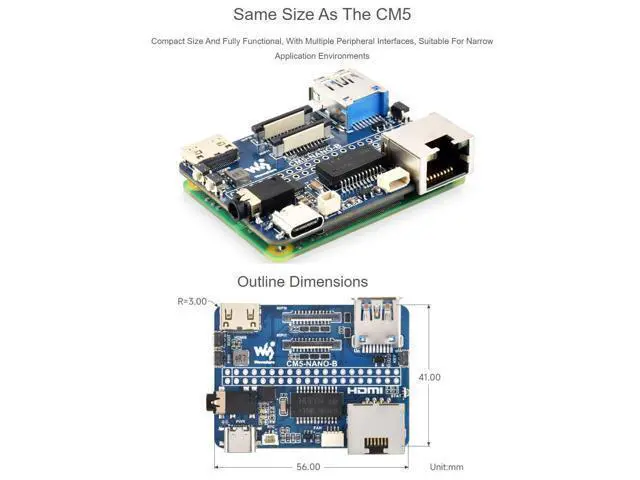

Overview As the mini IO board of the Raspberry Pi Compute Module 5, CM5-NANO-B is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features integrated into a compact design, it is only the size of a CM5 with USB 3.2 Gen1 interface onboard. Features and Precautions 1. It is forbidden to unplug and unplug any device other than USB when it is charged 2. Type C can be used as a USB SLAVE interface to flash images. 3. Onboard default USB 3.2 Gen1 port.

4. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode 5. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized 6. USB TYPE A interface maximum power output 2A

Specifications

CM5 SOCKET---suitable for all variants of Compute Module 5 NETWORKING---Gigabit Ethernet RJ45 connector CONNECTOR---Raspberry Pi 40PIN GPIO interface × 1 USB---USB 3.2 Gen1 Type A port × 1 MIPI---MIPI 4-lane interface × 2 (22pin 0.5 mm FPC connector) VIDEO---Mini HDMI port × 1, supports 4K output AUDIO---USB audio 3.5 mm jack STORAGE---TF card socket for Compute Module 5 Lite (without eMMC) variants PCIE---16PIN PCIe connector (PCIe Gen2/3 x1) POWER INPUT---5V DIMENSIONS---55 × 40mm Package Content CM5-NANO-B x1 2*20PIN color-coded straight pinheader x1 FAQ Can the old versions of the Raspberry Pi operating system be used with CM5? CM5 requires the latest version of Raspberry Pi OS Bookworm (2024-11-19 or later).
