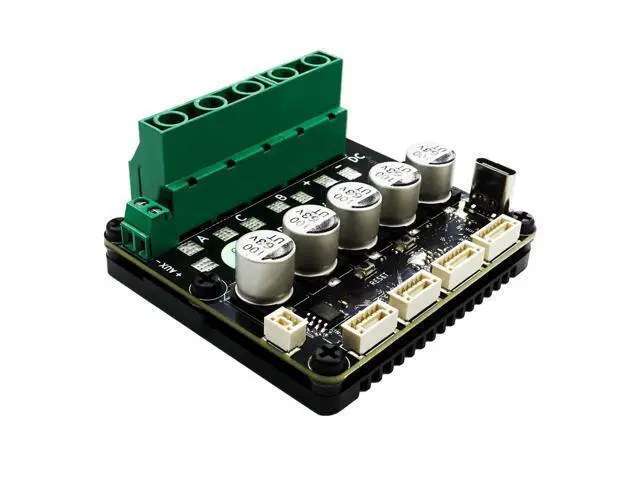

ODESC V4.2 Brushless Servo Motor Controller Driver Board, Software Configuration Compatible with Odrivetool, FOC, BLDC
- ODESC V4.2 single driver board, STM32F405RGT6 Microprocessor.; Working voltage:DC 8V-56V, Continuous current: 70A, Peak current: 120A.; Braking methods: Power resistors & battery recycling; Drive motor: Brushless DC motor (BLDC); Control modes: speed mode, position mode, current mode, torque mode for trajectory planning.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification -
Hardware Version: Newest
Version - Microprocessor: STM32F405RGT6 -

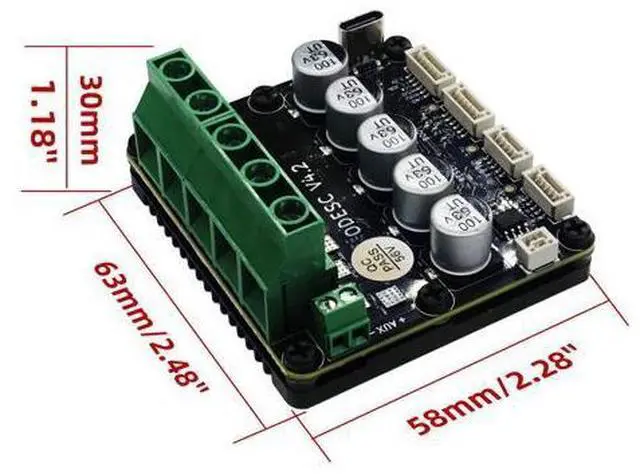

Dimension: 63*58*30mm / 2.5 * 2.3 * 1.2 inches -
Supported motor type: brushless motor -
Continuous current: 70A (depending on heat dissipation) -
Peak current: 120A/motor -
Input Voltage: 8V-56V -
Supported encoders: incremental encoder (AB, ABI), absolute value encoder (SPI), Hall sensor (HALL), AMT102, AMT103, TLB5012, AS5047P, etc.

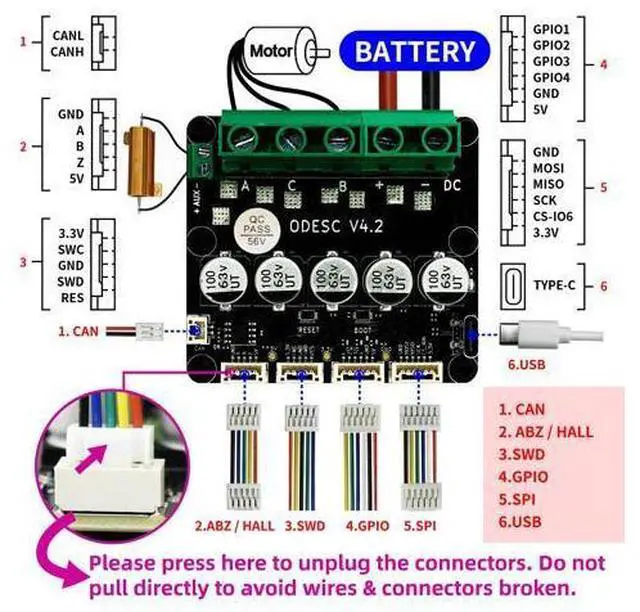

- Communication interface: USB-protocol open source (computer, for Raspberry Pi, ROS), Step/direction (PLC), UART (embedded device), PWM (RC remote control), GPIO, analog input, and CAN, ASCII, etc.
- Motion mode: position mode, speed mode, torque mode for trajectory planning, etc.

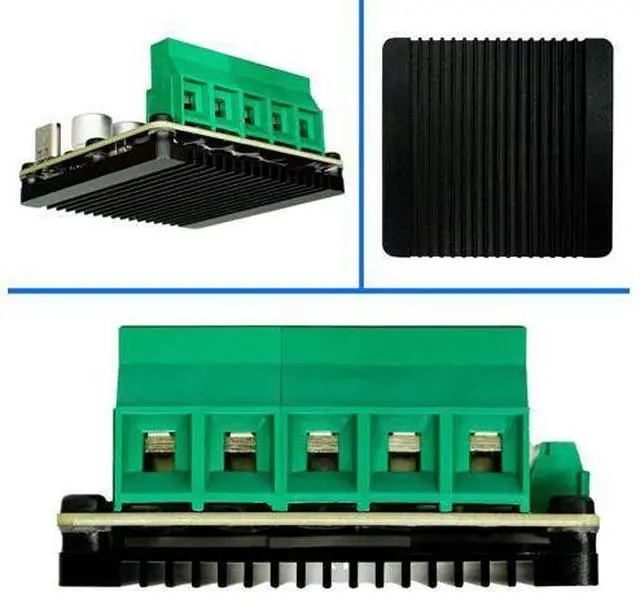

- Braking/braking mode: braking resistor, regenerative braking - PCB integrated high-current open skylight design, and CN custom-made aluminum metal heat sink, which greatly improves operation stability.
- Programmable: Yes -

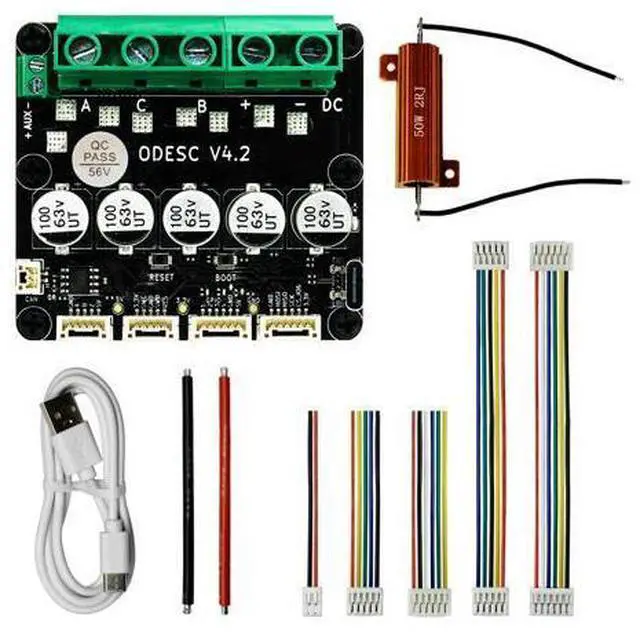

Power Cable: 12AWG Application - Fit CNC milling machines, 3D printers, robots, AGV cars, pan tilt slides, etc. Packing List - 1 x driver board - 1 x Type-C Data Cable - 1 x 50W 2 Power Resistor - 2 x 12AWG Power Cable - 1 x SH 1.0 mm 2P Single End Connecting Wire - 1 x SH 1.0 mm 5P Single End Connecting Wire - 1 x SH 1.0 mm 6P Single End Connecting Wire - 1 x SH 1.0 mm 5P Double End with Same Direction - 1 x SH 1.0 mm 6P Double End with Same Direction
Hardware Version: Newest
Version - Microprocessor: STM32F405RGT6 -
Dimension: 63*58*30mm / 2.5 * 2.3 * 1.2 inches -
Supported motor type: brushless motor -
Continuous current: 70A (depending on heat dissipation) -
Peak current: 120A/motor -
Input Voltage: 8V-56V -
Supported encoders: incremental encoder (AB, ABI), absolute value encoder (SPI), Hall sensor (HALL), AMT102, AMT103, TLB5012, AS5047P, etc.
- Communication interface: USB-protocol open source (computer, for Raspberry Pi, ROS), Step/direction (PLC), UART (embedded device), PWM (RC remote control), GPIO, analog input, and CAN, ASCII, etc.
- Motion mode: position mode, speed mode, torque mode for trajectory planning, etc.
- Braking/braking mode: braking resistor, regenerative braking - PCB integrated high-current open skylight design, and CN custom-made aluminum metal heat sink, which greatly improves operation stability.
- Programmable: Yes -
Power Cable: 12AWG Application - Fit CNC milling machines, 3D printers, robots, AGV cars, pan tilt slides, etc. Packing List - 1 x driver board - 1 x Type-C Data Cable - 1 x 50W 2 Power Resistor - 2 x 12AWG Power Cable - 1 x SH 1.0 mm 2P Single End Connecting Wire - 1 x SH 1.0 mm 5P Single End Connecting Wire - 1 x SH 1.0 mm 6P Single End Connecting Wire - 1 x SH 1.0 mm 5P Double End with Same Direction - 1 x SH 1.0 mm 6P Double End with Same Direction
