Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since

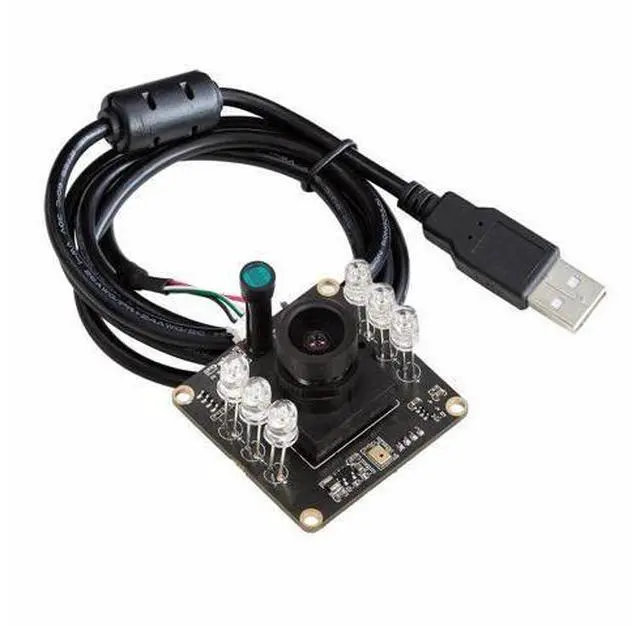

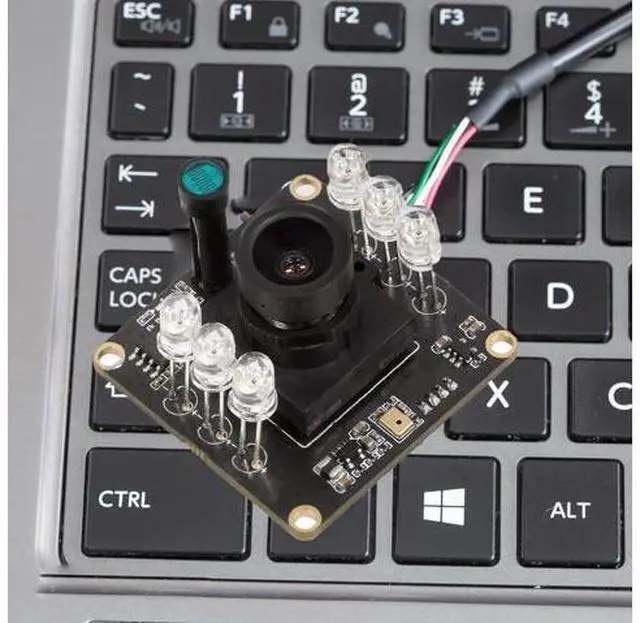

2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique. The B0205 is a new member of Arducams USB camera family. Based on 1/ 2.7 OV2710, it's a 2MP, UVC compliant, wide-angle USB 2.0 camera with a motorized IR-Cut filter and infrared LEDs. The motorized (switchable) IR-CUT filter and infrared LEDs can be triggered by the photoresistor according to the light environment to be ON/OFF to block or pass the infrared light. It can be widely used in wildlife photography, home security systems, baby cameras, etc.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
SPECIFICATIONS Camera - Sensor: 1/ 2.7 OV2710 -
Resolution: 2MP 1920 x 1080 -
Data Format: MJPG/YUY2 -
Frame Rate:
MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 YUY 2: 30 fps@320*240, 352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960, 1280*1024, 1920*1080 -

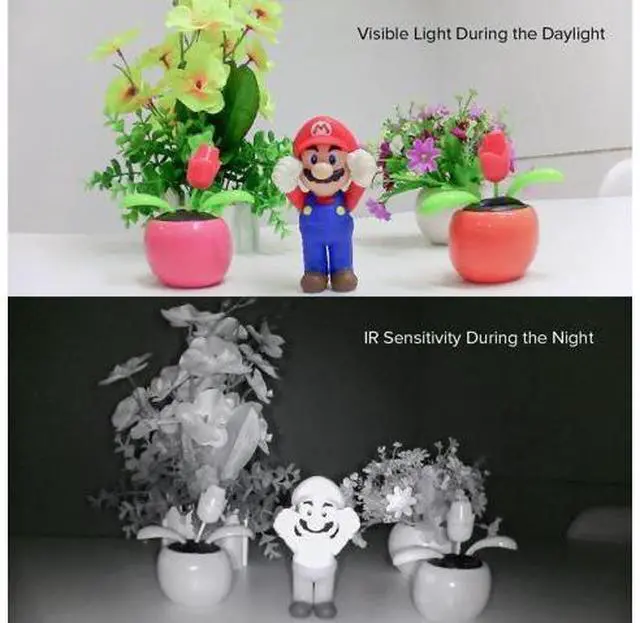

IR Sensitivity: Integral IR filter, switch automatically based on light condition (only visible light during the daylight and IR sensitivity during the night Lens - Field of
View (FOV): 105° (D) × 92° (H) × 76° (V) -
Lens Mount: M12 -
Focusing Range: 3.3 ft (1M) to infinity
