C01W Monochrome PWM (+V -V) 2PIN LED Strip Dim Brightness 2.4GHz Tuya WiFi Group Controller Alexa Google Home Smartphone APP Control Compatible with WR02RF RC01RFB Remote

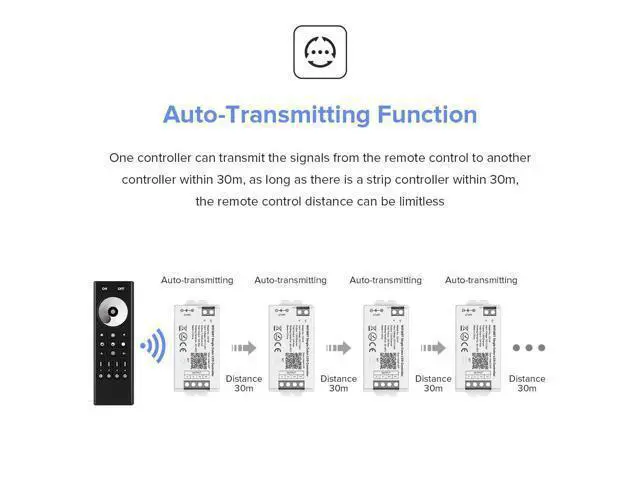

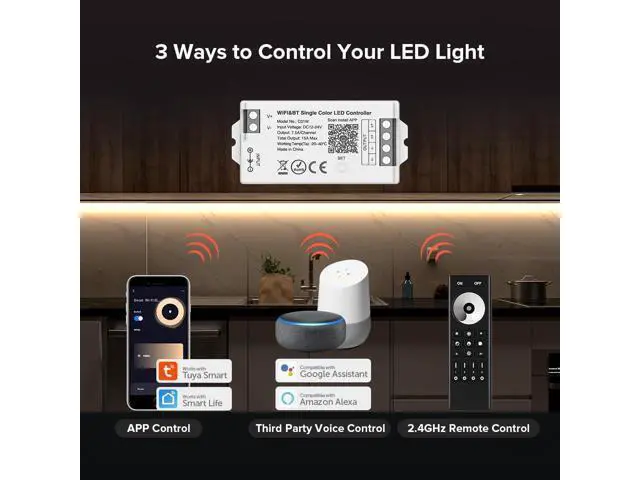

- 3 control methods1st:Compatible 2.4GHz RF RemoteWR02RF,RC01RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control .Three methods can be used at the same time.; Multi-functionDim Brightness. Group control.Multi zone control. Voice command.Timmer setting.Countdown turn on/off.Biorhythm. Tap-to-Run and Automation. Secene customization. Sleep/wakeup plan . Do not disturb mode.Device sharing. Selection of different usage scenarios.; Auto-transmitting functionOnly for remote control dimming. One controller can transmit the signal from the remote control to the another controller within 30 meters. As long as there is a LED strip controller within 30 meters, the remote control distance can be limitless. All the controllers should be the same group.; Auto-Synchronization FunctionDifferent controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.; Using WiFi+ Bluetooth dual module designWhen WiFi router disconnect,bluetooth connection control is a backup control methods.; PWM LED TypeControl monochrome(single color) LED strip LED String LED bulb like FCOB 5630 2835 3528 5630 5730 5050 3014 etc Without IC chip V+ V- Two wires LED strip Power: 7.5A/Channel Total output max 15A.DC12V 180W max. DC24V 360W max.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

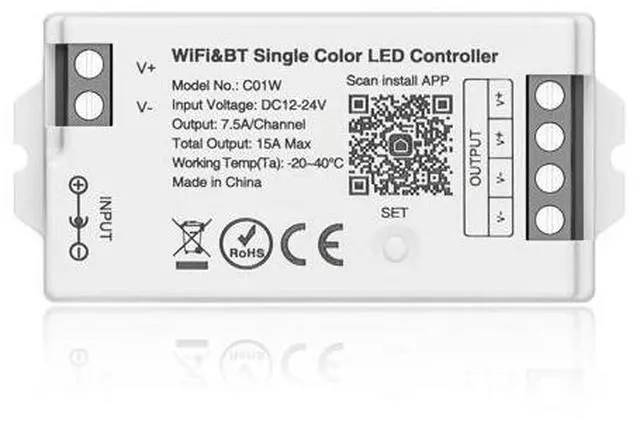

Parameters: Model No.: C01W
Input Voltage: DC12V~24V Input Voltage=Output Voltage DC12V LED Strip, please use DC12V Power supply.
Total Output:
Output: 7.
5A/Channel: Total 15A Max
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11 b/g/n 2.4GH z
Match RF Remote: WR02RF, RC01RFB.
Remote Control Distance: 99FT (30m)
Bluetooth Protocol: When WiFi router disconnect, bluetooth connection control is a backup control methods WB5 = C01W +C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT, C03W=RGB, C04W=RGBW, C05W=RGBCCT C01W Control all the PWM -V +V 2 pin LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust the brightness of the light strip C02W Control all the PWM +V CW WW 3 pin CCT LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust the color temperature and brightness of the light strip. C03W Control all the PWM +V R G B 4 pin RGB LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust 16 million color of the light strip. C04W Control all the PWM +V R G B W 5 pin RGB LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust 16 million color of the light strip and pure white light. C05W Control all the PWM +V R G B CW WW 6 pin RGB LED strip, string, neon light etc.
There is no IC chip on the LED strip. Adjust 16 million color of the light strip and color temperature.
Attention: The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher
Input Voltage: DC12V~24V Input Voltage=Output Voltage DC12V LED Strip, please use DC12V Power supply.
Total Output:
Output: 7.
5A/Channel: Total 15A Max
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11 b/g/n 2.4GH z
Match RF Remote: WR02RF, RC01RFB.
Remote Control Distance: 99FT (30m)
Bluetooth Protocol: When WiFi router disconnect, bluetooth connection control is a backup control methods WB5 = C01W +C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT, C03W=RGB, C04W=RGBW, C05W=RGBCCT C01W Control all the PWM -V +V 2 pin LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust the brightness of the light strip C02W Control all the PWM +V CW WW 3 pin CCT LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust the color temperature and brightness of the light strip. C03W Control all the PWM +V R G B 4 pin RGB LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust 16 million color of the light strip. C04W Control all the PWM +V R G B W 5 pin RGB LED strip, string, neon light etc. There is no IC chip on the LED strip. Adjust 16 million color of the light strip and pure white light. C05W Control all the PWM +V R G B CW WW 6 pin RGB LED strip, string, neon light etc.
There is no IC chip on the LED strip. Adjust 16 million color of the light strip and color temperature.
Attention: The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher
