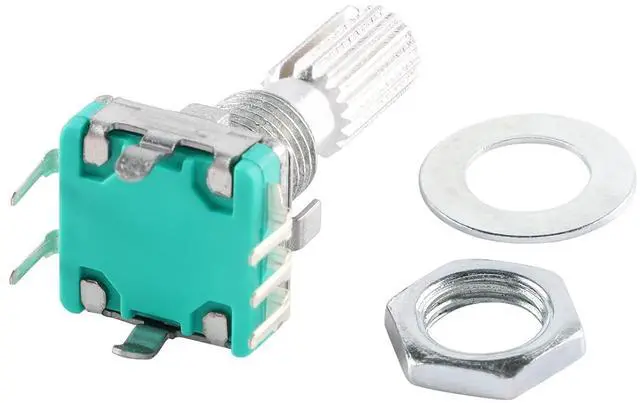

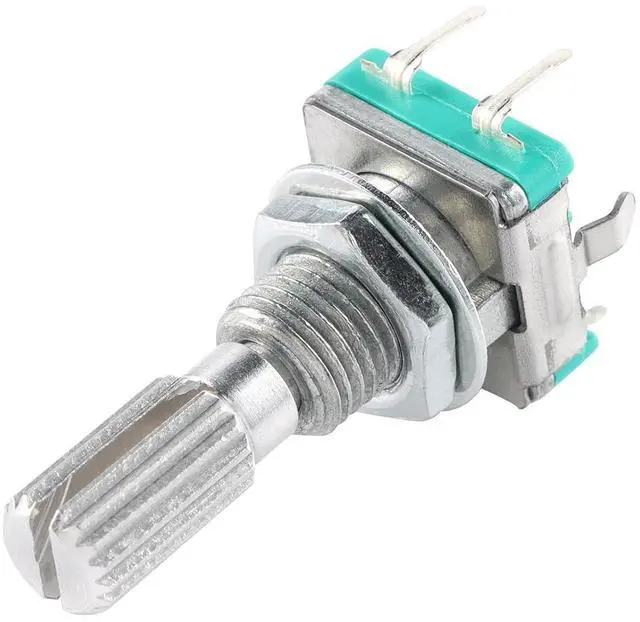

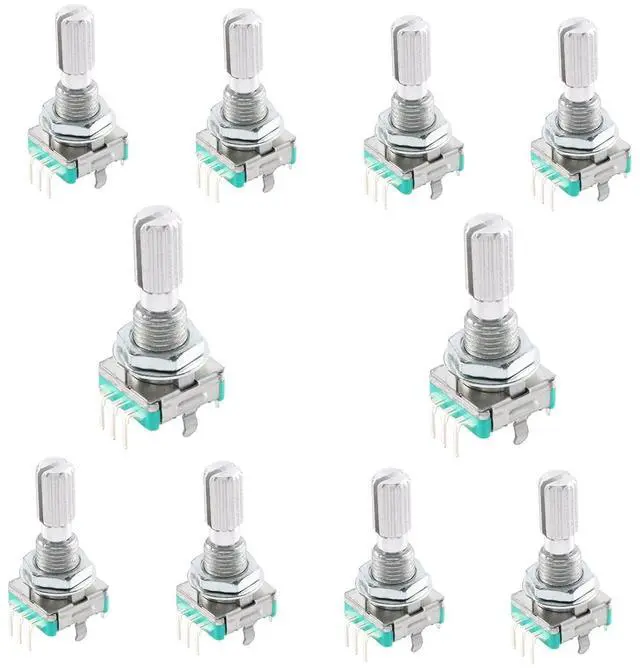

10Pcs EC11 Rotary Encoder Switch Digital Potentiometer 20MM with Switch 5 Pins Derrated Shaft with Nut and Washer
- Specification Adjustment method: 360-degree Number of pulses: 20 Pin Numbers: 5 Shaft Diameter: 6mm/0.24" Shaft Height: 20mm/0.79" Rated voltage: DC 5V Maximum operating current (resistive load):10mA Max Contact resistance: 100mor less(Voltage test at DC 5V 1mA) Bouncing: 10mS or less (Shaft shall be pushed at 1 cycles/s) Insulation resistance: 100M Min (Measurement shall be made under the condition that a voltage of 250V DC is applied between individual terminals and bushing and plank) Dielectric strength: Without arcing or breakdown (A voltage of 300V AC shall be applied for 1 minute between individual terminals and bushing and plank) Push-life: 30,000±200cycles(0.5 Travel) Push 1Kgf to the shaft of the encoder in the axial direction under non-load conditions and with a speed of 600 times/hour
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Dielectric strength: Without arcing or breakdown (A voltage of 300V AC shall be applied for 1 minute between individual terminals and bushing and plank);
Contact resistance: 100mor less (Voltage test at DC 5V 1mA);
Bouncing: 10mS or less (Shaft shall be push at 1 cycles/s);
Rating: Rated
voltage: DC 5V;
Maximum operating current (resistive load): 10mA Max;
Insulation resistance: 100M Min (Measurement shall be made under the condition that a voltage of 250V DC is applied between individual terminals and bushing and plank);
Push-life: 30, 000±200cycles( 0.5 Travel) Push 1Kgf to the shaft of the encoder in the axial direction under non-load conditions and with a speed of 600 times/hour
Contact resistance: 100mor less (Voltage test at DC 5V 1mA);
Bouncing: 10mS or less (Shaft shall be push at 1 cycles/s);
Rating: Rated
voltage: DC 5V;
Maximum operating current (resistive load): 10mA Max;
Insulation resistance: 100M Min (Measurement shall be made under the condition that a voltage of 250V DC is applied between individual terminals and bushing and plank);
Push-life: 30, 000±200cycles( 0.5 Travel) Push 1Kgf to the shaft of the encoder in the axial direction under non-load conditions and with a speed of 600 times/hour
