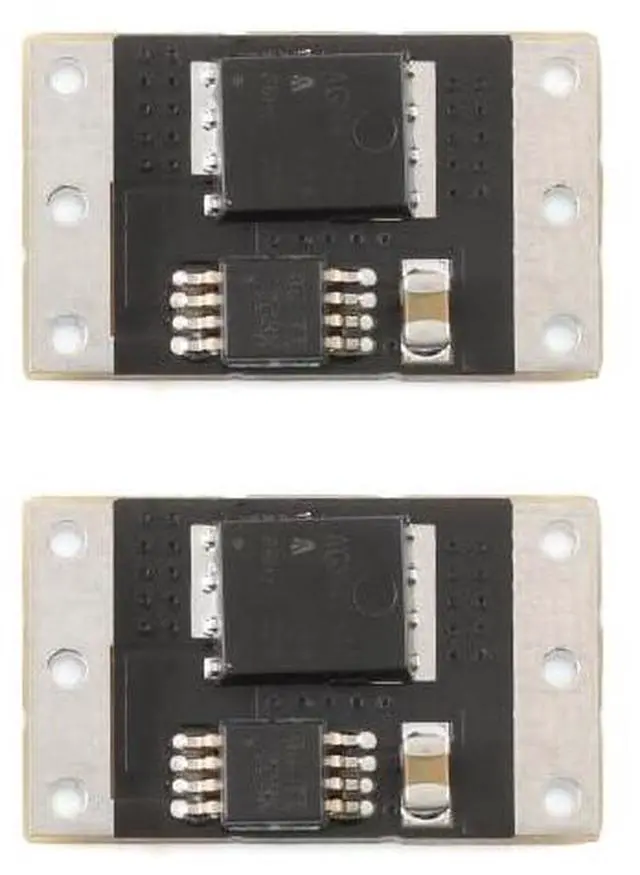

2PCS XL74610 Rectifier Diode Module LM74610 Dedicated Chip to Simulate Simulation Ideal Diode 1.5V-36V 0mA 15A/30A
- Product parameters Operating voltage: 1.5V 36V Working current:12V 25°C without cooling measures 15A (15A long-distance running test for 30 minutes)12V 25 heat sink + air cooling 30A (30A long-distance running test for 30 minutes) If the theoretical heat dissipation is good, it can be above 50A, but the heat dissipation condition is limited to above 30A No long-distance running test Static current: 0ma (no load state, there will still be current when the load is in sleep state) Positioning method: welding fixed
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The XL74610 ideal diode module uses a dedicated LM7461 0 chip to simulate an ideal diode rectifier; The unique advantage of this mechanism is that it does not use grounding as a reference and adopts a low internal resistance MOS of around 3.3 m. When working with high current, the voltage drop is small, avoiding the high voltage drop of 0.7V for ordinary diodes. The reduction in voltage drop also greatly reduces heating; A 0.3V Schottky diode operates at a 10A current with a heating power consumption of 3W. The measured XL 74610 ideal diode operates at a 10A current, with a voltage drop of about 50mV and a heating power consumption of about 0.5W.
;
Operating voltage: 1.5V 36V;
Module size: 17 * 10 * 3mm (manually measured)
;
Operating voltage: 1.5V 36V;
Module size: 17 * 10 * 3mm (manually measured)
