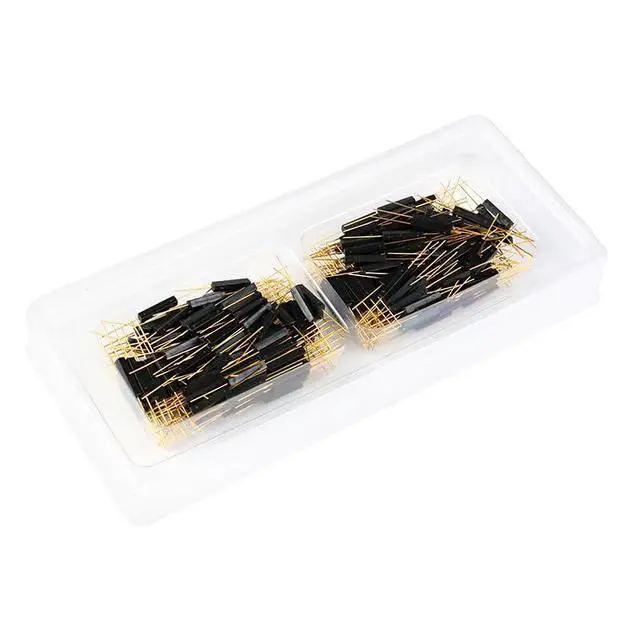

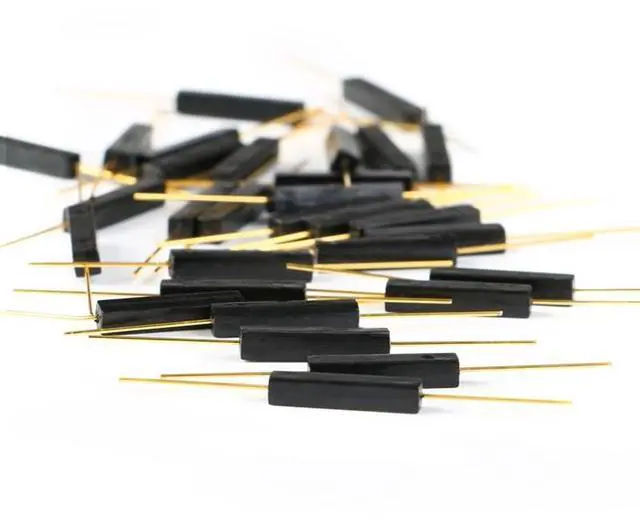

20Pcs Reed Switch GPS-14A 14mm Plastic Anti-Interference Normally Open Magnetic Control Switch
- Product parameters Body: ABS (fire resistant) black Contact capacitance: 0.7PpF Contact form: 1A (SPST-NO) Insulation resistance: 10 ^ 10Ohms Contact position: SYM Resonant frequency: 4KHz Contact material: Ru Working temperature: -10 ° C~85 ° C Contact resistance (initial): 100mOhms Working frequency max: 100 Hz Insulation resistance min: 150 Vdc High voltage resistance: 220VDC (AT<25)/250VDC (AT>25) Release value: 5 Action time: 1.0mSec. (Max) Electrical life: 10 ^ 8 (5v, 10mA)/10 ^ 5 (24V, 400mA) Release time: 0.4mSec. (Max) Collapse voltage min: 150V Pin wire: gold/silver corner
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Body: ABS (fire resistant) black;
Contact capacitance: 0.7P pF;
High voltage resistance: 220VDC (AT <25)/250VDC (AT> 25);
Electrical life: 10 ^ 8 (5v, 10mA)/10 ^ 5 (24V, 400mA);
Contact resistance (initial): 100mOhms
Contact capacitance: 0.7P pF;
High voltage resistance: 220VDC (AT <25)/250VDC (AT> 25);
Electrical life: 10 ^ 8 (5v, 10mA)/10 ^ 5 (24V, 400mA);
Contact resistance (initial): 100mOhms
