3pcs XL63070 5V Low Ripple DC Auto Boost Power Module Li Battery MCU Voltage Regulator TPS63070 Solution

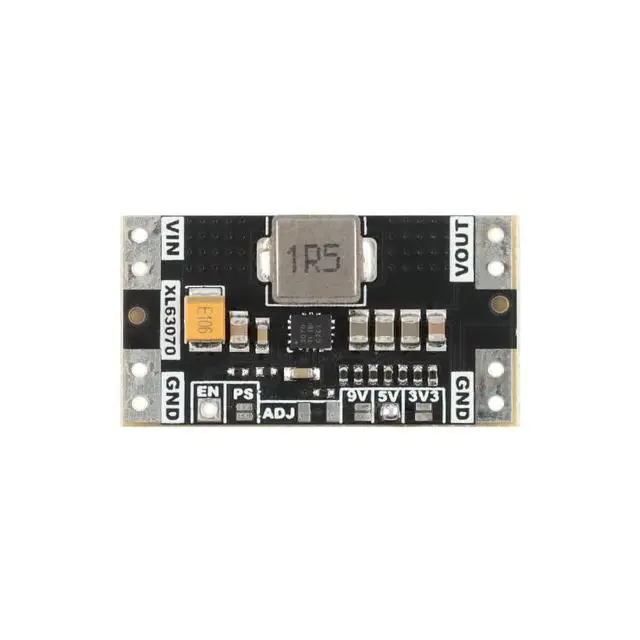

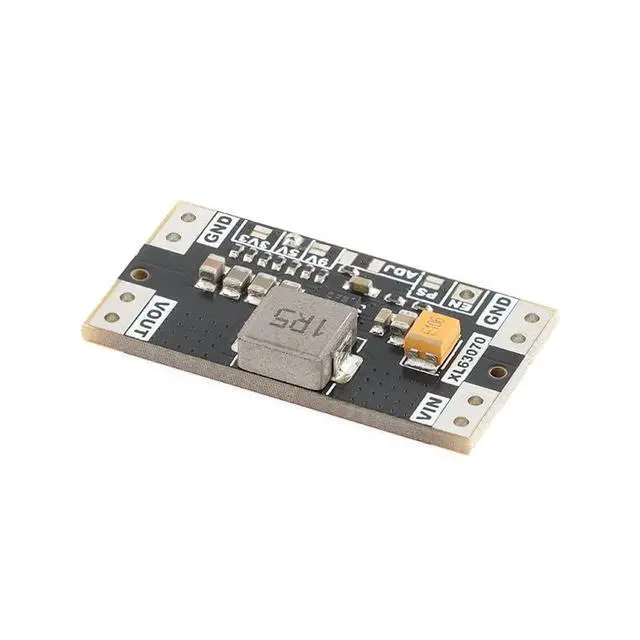

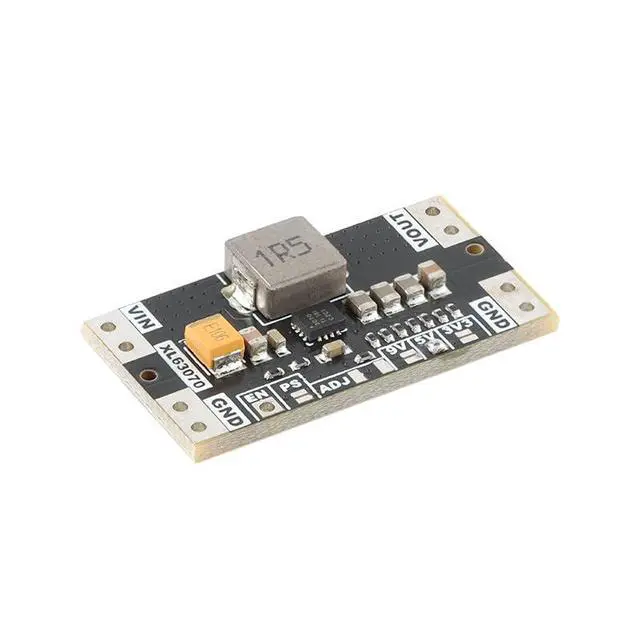

- Product description Product features Core solution: TI TPS63070 chip Ultra-wide input: 2V-16V (support 2V low voltage after startup) Intelligent voltage regulation: three fixed voltage (3.3V/5V/9V) + ADJ custom output (2.5-9V) Dual operating modes PWM mode (performance priority) / PFM mode (light load and power saving) ripple 8-10mV ultra-low noise ( s>30mV) ( >30mV) Product Performance: Capability This Module Average Advantage Input range: 2-16V, support 2V ultra-low voltage startup Full-load ripple: 10mV--3.3V , high-precision ADC circuits are applicable Temperature range: -40~85 Dynamic Response: 100s No restart for sudden load change Product Parameters Size: 16×30mm (industry's lifting solution) Operating Temperature: -40~85 (industrial grade) Switching Frequency: 2.4MHz (HF away from sensitive bands) VIN: Input Positive (2-16V) Connect GND then VIN PS: Shorted = PFM Power Save Mode Default PWM (Performance Mode) EN: Hover = Enable, Ground = Disable Do not touch by mistake when hovering ADJ: Custom Voltage Adjustment Equation: R= (15000 x VOUT)/0.8 - 15000 Q1: How to switch PFM mode from PWM? Q2: Output not allowed after ADJ adjustment? Q3: Is the 9V output a boost or a buck at 12V input? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Solder Wire Buying Options Cu
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Compact Design & Industrial Grade This DC-DC converter module, featuring the advanced TI TPS63070 chip, offers an ultra-wide input range of 2V-16V, making it Suitable for low-voltage applications like IoT devices or portable electronics. Its compact size of just 16x30mm in the industry, ensuring integration into your projects. With an temperature range of -40°C to 85°C, its built to withstand Suitable for outdoor gadgets or rugged setups.; Smart Voltage Regulation & Energy Efficiency Equipped with intelligent voltage regulation, this module supports three fixed outputs ( 3.3V, 5V, 9V) plus adjustable output via the ADJ pin.
The adjustable output allows you to customize voltages between 2.5V and 9V, making it versatile for various applications. In PFM mode, it reduces quiescent current by up to 40%, optimizing energy efficiency for lightweight loadsa must-have for users.; Ultra-Low Noise & High Precision With ripple of only 8-10mV. This precision makes it Suitable for high-end electronics requiring stable power supply, such as single-board computers or audio equipment. Whether youre building a, smart home device, or portable gaming console, this module delivers reliable performance every time.; Automatic Buck-Boost Functionality The automatic voltage r gnition feature intelligently switches between buck and boost modes based on input voltage.
For example, at 12V input, it can step down to 9V or step up to 15V depending on your needs. This adaptability simplifies system design and reduces component count, saving both space and cost while maintaining optimal performance.; Versatile Applications & Easy Integration Designed for flexibility, this module supports dual operating modes: PWM (performance priority) and PFM (power-saving). It also includes jumper pads for easy selection of predefined voltages ( 3.3V, 5V, 9V), allowing quick setup without complex calculations. Whether youre working on a robotics project, device, or consumer electronics, this module provides integration and hassle-free operation.
The adjustable output allows you to customize voltages between 2.5V and 9V, making it versatile for various applications. In PFM mode, it reduces quiescent current by up to 40%, optimizing energy efficiency for lightweight loadsa must-have for users.; Ultra-Low Noise & High Precision With ripple of only 8-10mV. This precision makes it Suitable for high-end electronics requiring stable power supply, such as single-board computers or audio equipment. Whether youre building a, smart home device, or portable gaming console, this module delivers reliable performance every time.; Automatic Buck-Boost Functionality The automatic voltage r gnition feature intelligently switches between buck and boost modes based on input voltage.
For example, at 12V input, it can step down to 9V or step up to 15V depending on your needs. This adaptability simplifies system design and reduces component count, saving both space and cost while maintaining optimal performance.; Versatile Applications & Easy Integration Designed for flexibility, this module supports dual operating modes: PWM (performance priority) and PFM (power-saving). It also includes jumper pads for easy selection of predefined voltages ( 3.3V, 5V, 9V), allowing quick setup without complex calculations. Whether youre working on a robotics project, device, or consumer electronics, this module provides integration and hassle-free operation.
