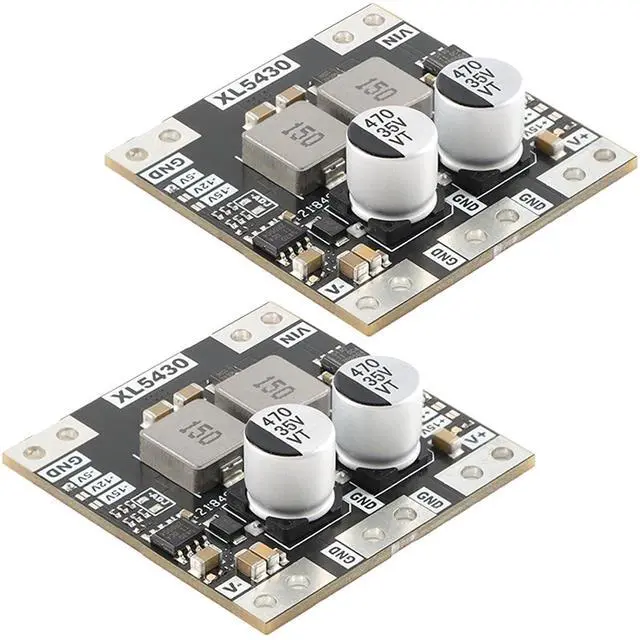

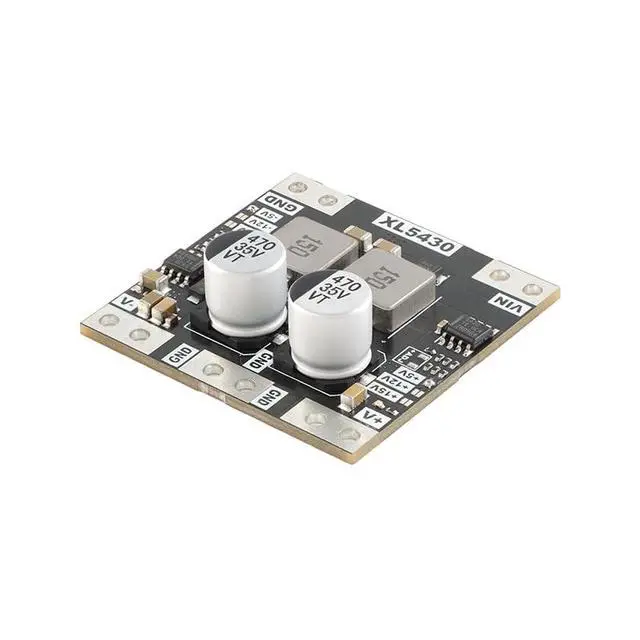

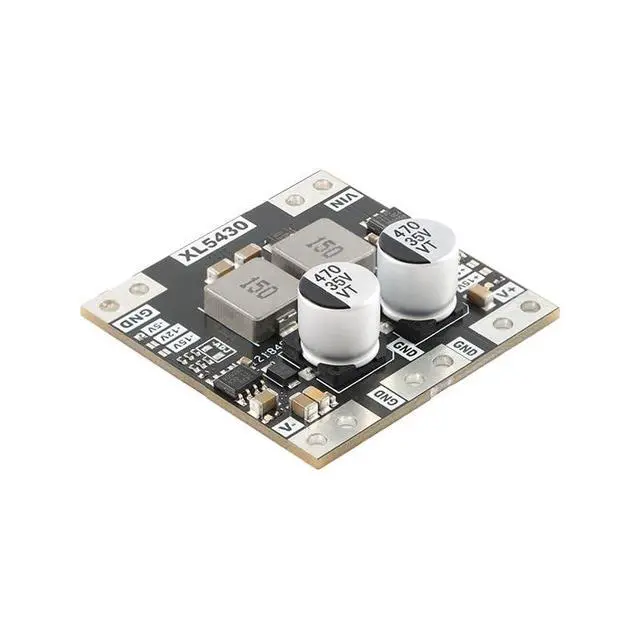

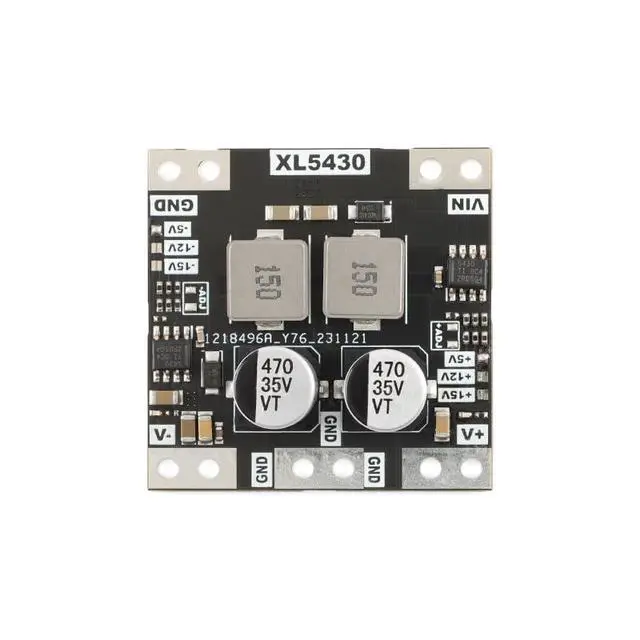

2pcs XL5430 Dual Output DC Power Voltage Module ±5V High Current Low Ripple TPS5430 Solution
Limited time offer, ends 09/19 By Kepler Forge

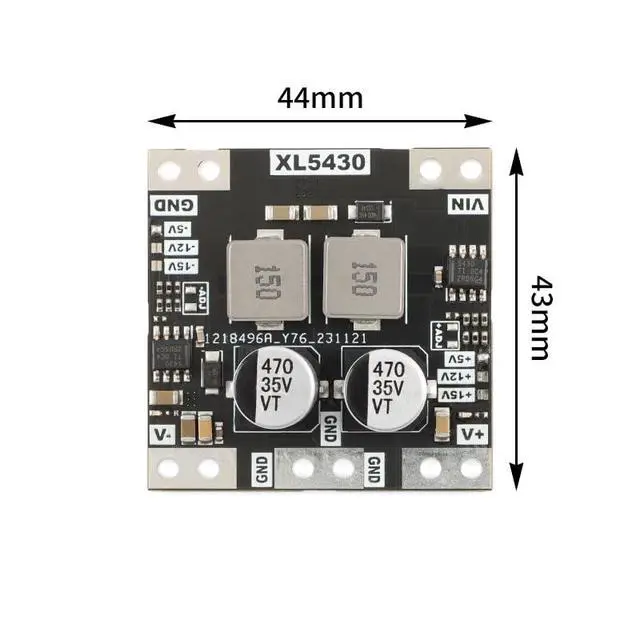

- Product description Product Features Core solution: TI TPS5430 chip Precision negative voltage output: -1.5V to -15V adjustable (four fixed voltage + ADJ fine-tuning) Voltage: Input 6-28V wide-voltage, operating temperature -40~85 Ultra-low noise No-load ripple: 7-10mV WARNINGS Correct order: GND VIN V- Incorrect operation: Hot plug 100% arc burn! Input Voltage:VOUT+3V VIN (e.g. -15V output requires 18V input) Thermal Compulsory Requirement:Output >1.5A must be mounted with heat sink (a hole on the back of the chip to assist in heat conduction). User pain point solution Thermal Design Backside uncovered oil over-hole + heatsink compatible position Jumper Set -5V/-9V/-12V/15V Selection Select 1 gear only! Ne gative voltage circuit design is complicated Plug & Play module instead of discrete components (save PCB area by 70%) equipment voltage fluctuation 6-28V wide voltage input compatible with engine ignition interference Low-temperature lab equipment downtime -40 direct startup without preheating Product Parameter Size: 19.46×35.74mm Full load efficiency: 91% (-12V-------2A) VIN+: Input Positive (6-28V) Connect GND first! V-: Ne gative Voltage Output Negative Load Prohibit Ground ADJ: Voltage Regulation Equation: R=[(5000×VOUT )-6105]/1.221 Q1: How to output -7.5V? Q2: Chip heating at no load? Q3: What is the minimum input voltage for -5V output? Electronic OK Wire & Solder Wire 8-Color Wrapping Wire Add to Cart 30 Gauge 250M OK Wire Add to Cart 63-37 Tin Sol
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
High-Precision Dual Voltage Regulation - Achieve accuracy with our DC power module, delivering ±1% voltage symmetry for both positive and negative outputs. This ensures flawless performance in critical applications like ADC/DAC systems. With an ultra-low ripple of just 6mVpp, its Suitable for high-end audio and video equipment.; Versatile Lab Power Supply - Simplify your lab setup by replacing multiple power supplies with one compact module. Our TPS5430-based solution supports ±5V, ±12V, and ±15V outputs, all adjustable from 1.5V to 15V. Its small size ( 43.36 × 43.13 mm) fits ly into any workspace.
; Extreme Temperature Performance - Designed for rugged, this power module operates reliably between -40°C and 85°C. Featuring advanced electrolytic capacitor technology, it ensures stable performance even during cold starts. Suitable for industrial or outdoor applications where temperature fluctuations are common.; Efficient Energy Conversion - Enjoy up to 92% conversion efficiency with minimal energy loss. Each channel supports up to ±3A output, providing a total power of 90W. Whether you need high current or precise voltage control, this module delivers exceptional performance every time.; Easy Configuration & Customization - Customize your power supply effortlessly using the ±ADJ adjustment pads.
Simply calculate the required resistance based on the desired output voltage (R = [(5000 × VOUT) - 6105] / 1.221 ). Quick and easy setup makes it Suitable for hobbyists and professionals alike.
; Extreme Temperature Performance - Designed for rugged, this power module operates reliably between -40°C and 85°C. Featuring advanced electrolytic capacitor technology, it ensures stable performance even during cold starts. Suitable for industrial or outdoor applications where temperature fluctuations are common.; Efficient Energy Conversion - Enjoy up to 92% conversion efficiency with minimal energy loss. Each channel supports up to ±3A output, providing a total power of 90W. Whether you need high current or precise voltage control, this module delivers exceptional performance every time.; Easy Configuration & Customization - Customize your power supply effortlessly using the ±ADJ adjustment pads.
Simply calculate the required resistance based on the desired output voltage (R = [(5000 × VOUT) - 6105] / 1.221 ). Quick and easy setup makes it Suitable for hobbyists and professionals alike.
