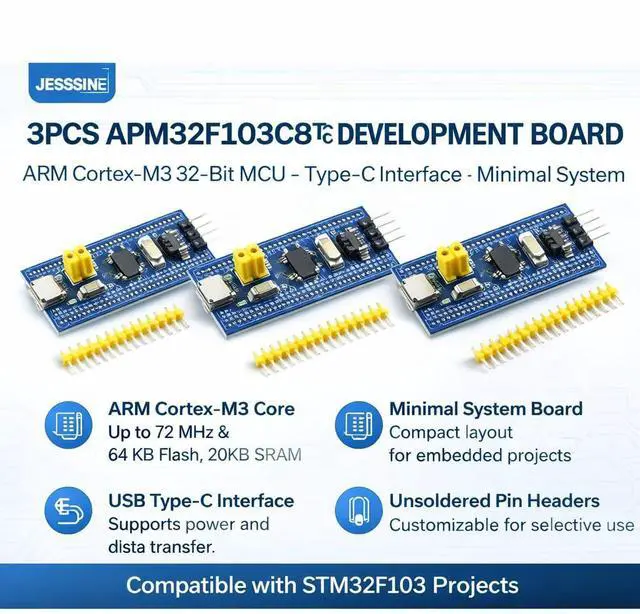

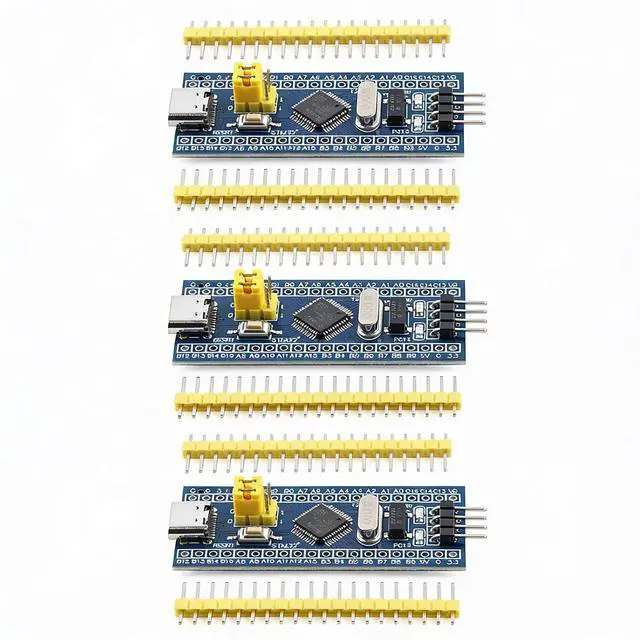

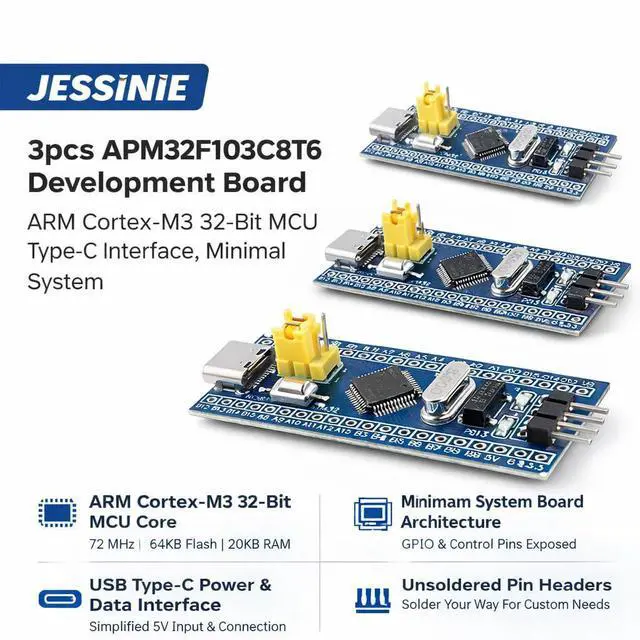

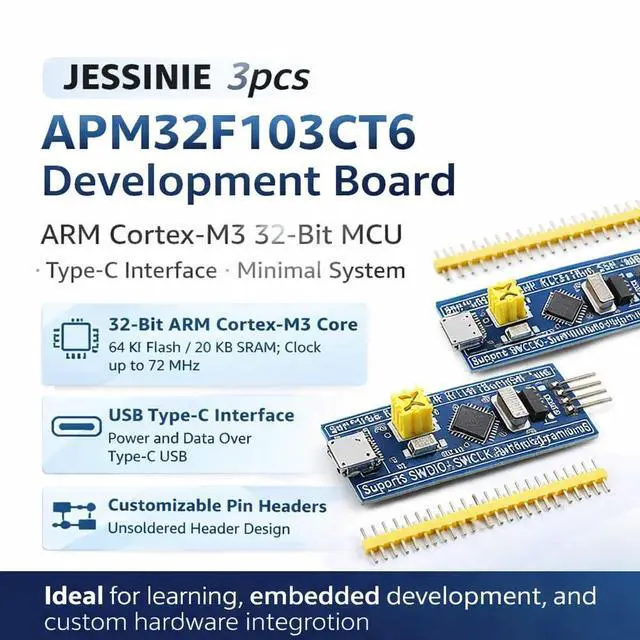

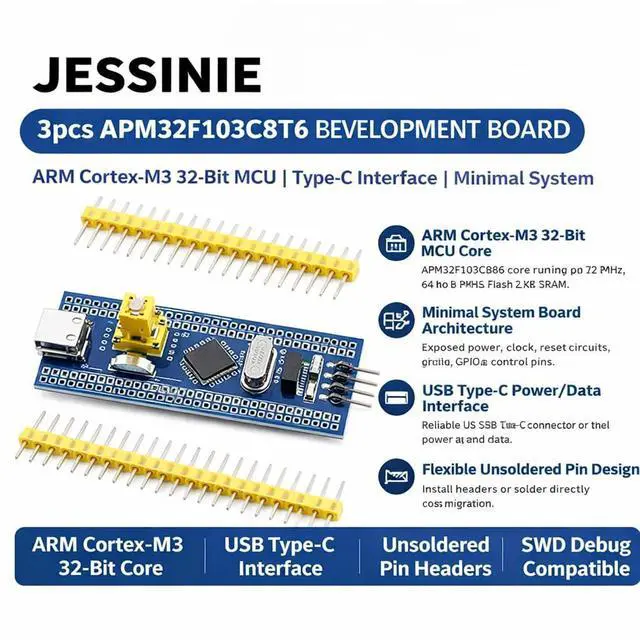

3pcs APM32F103C8T6 Development Board, ARM CortexM3 32Bit MCU, TypeC Interface, Minimal System
- Product Overview APM32F103C8T6 ARM 32bit MCU Development Board, minimal system design with USB TypeC interface. No presoldered headers, ideal for learning, embedded development, and custom hardware integration. Compatible with STM32F103C8T6 class architecture. 1. Product Parameters MCU Model: APM32F103C8T6 Core: ARM CortexM3, 32bit Max Clock Frequency: Up to 72 MHz Operating Voltage: 3.3 V Flash Memory: 64 KB SRAM: 20 KB USB Interface: USB TypeC (power / data) Debug Interface: SWD I/O Voltage Level: 3.3 V logic Board Type: Minimum system development board Soldering: Unsoldered pin headers 2. Pin Function Description 5V: USB TypeC power input 3V3: Onboard regulated 3.3 V output GND: Power ground NRST: MCU reset input SWDIO: Debug data line SWCLK: Debug clock line PAx / PBx / PCx: General purpose GPIO pins 3. Common Questions & Answers (FAQ) Q1: Is this board suitable for beginners? A1: Yes, it is ideal for MCU learning and ARM CortexM3 practice. Q2: Does it come with soldered headers? A2: No, pin headers are not soldered for flexible installation. Q3: How is the board powered? A3: Via USB TypeC or the 5V / 3.3V power pins. Q4: Can it be programmed with common ARM tools? A4: Yes, it supports SWD programming and standard ARM toolchains. Q5: Is it compatible with STM32F103 projects? A5: Yes, it is largely codecompatible with STM32F103C8T6 designs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ARM CortexM3 32Bit MCU Core APM32F103C8T6 development board; ARM CortexM3 32bit core running up to 72 MHz; 64 KB Flash and 20 KB SRAM; supports complex control logic and realtime processing; suitable for MCU learning and embedded firmware development; Minimum System Board Architecture Minimal system design with essential power, clock, and reset circuits; exposes core GPIO and control pins directly; reduces board complexity while keeping full MCU functionality; ideal for users who want clear hardware structure and custom peripheral expansion; USB TypeC Power And Data Interface USB TypeC connector supports stable power input and data connection; modern reversible interface simplifies daily use; provides reliable 5 V input for onboard regulation; convenient for development setups without additional power adapters; Flexible Unsoldered Pin Design Pin headers are not presoldered; allows direct soldering to custom PCBs or selective header installation; improves mechanical flexibility and space utilization; suitable for embedded integration where fixed connectors are not desired; SWD Debug And Code Compatibility Supports SWD programming and debugging via SWDIO and SWCLK pins; compatible with common ARM toolchains; largely codecompatible with for STM32F103C8T6 projects; enables easy migration of examples and learning resources for practice and testing
