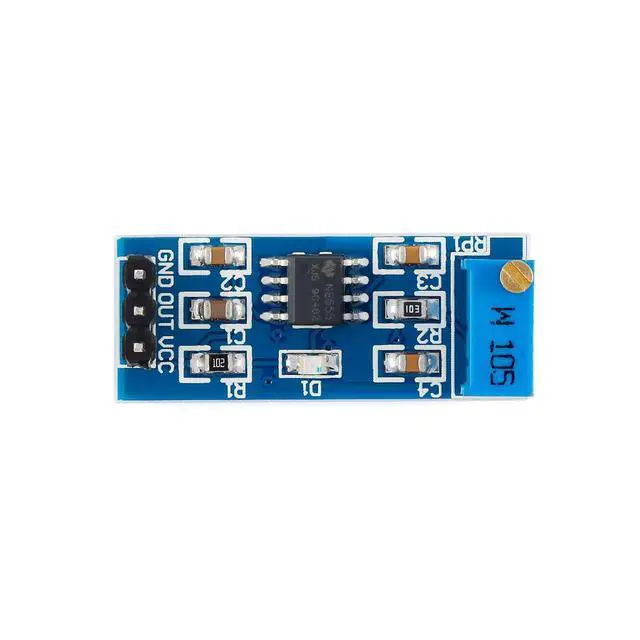

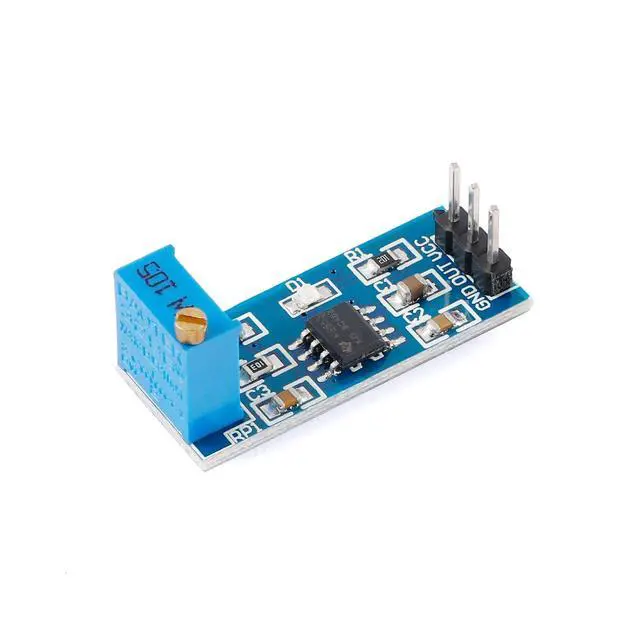

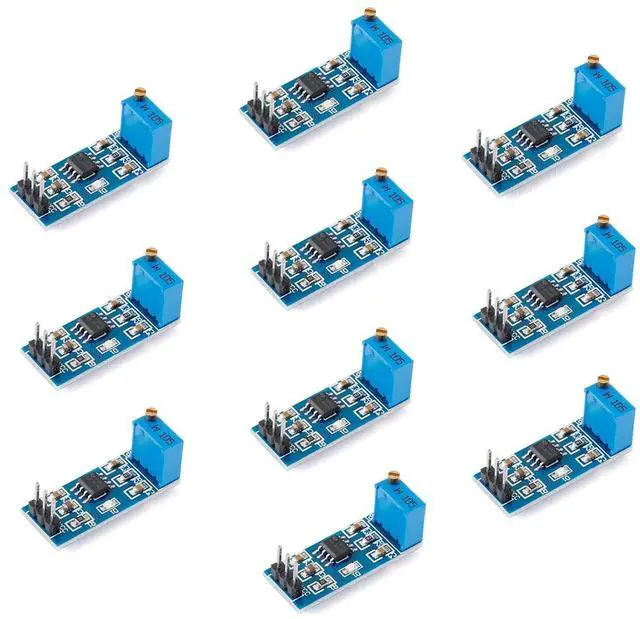

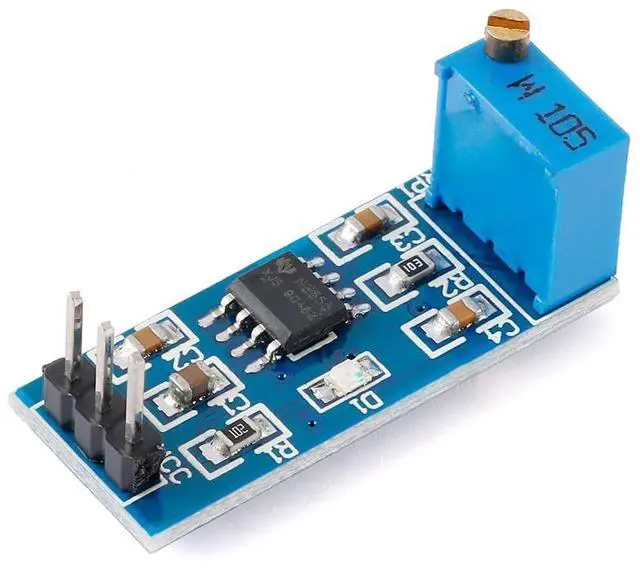

10Pcs NE555 Pulse Generator Square Wave Rectangular NE555 Adjustable Frequency Pulse Generator Module Single Channel Signal Output Frequency Duty Cycle Square Wave Module Board
- Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer,hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer. Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE. Onboard NE555 chip Single signal output, the output duty cycle is about 50% square wave On-board adjustable resistor, adjusting the resistance value can control the output frequency Onboard power indicator Operating voltage: 5~12V Product Description NE555 Pulse Generator is precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Onboard NE555 chip; Single signal output, the output duty cycle is about 50% square wave; On-board adjustable resistor, adjusting the resistance value can control the output frequency; Onboard power indicator;
Operating voltage: 5~12V
Operating voltage: 5~12V
