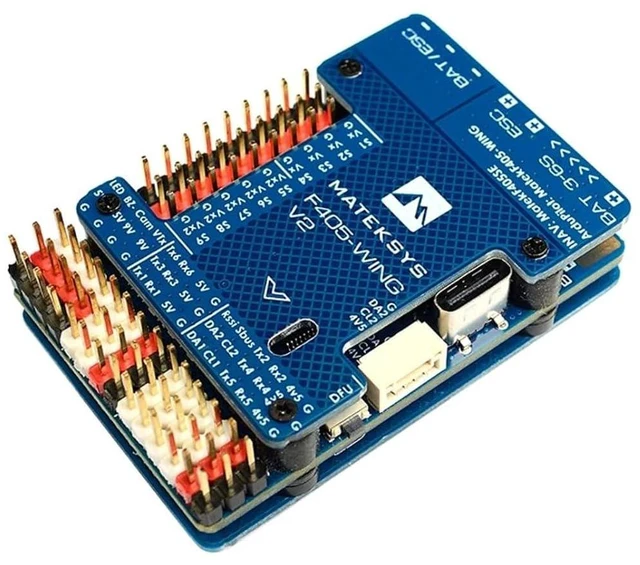

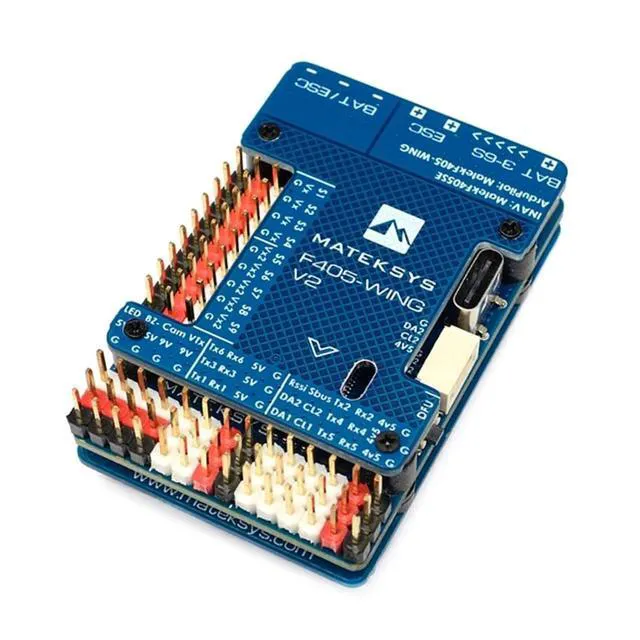

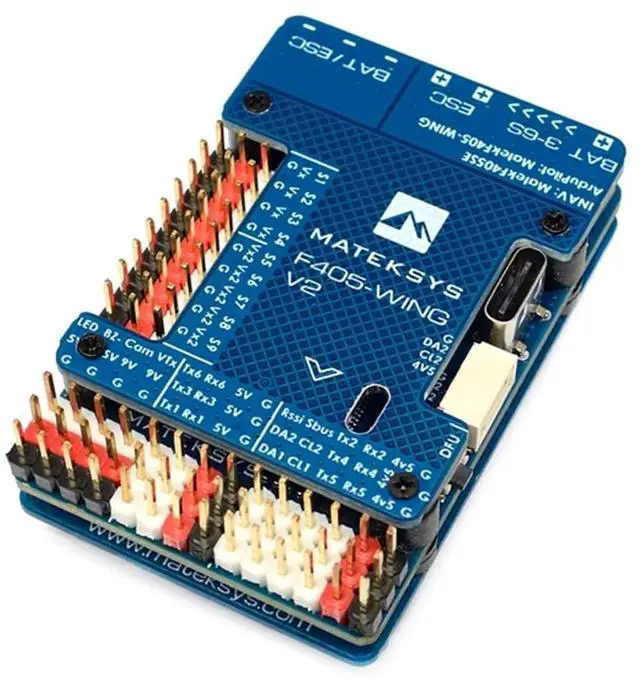

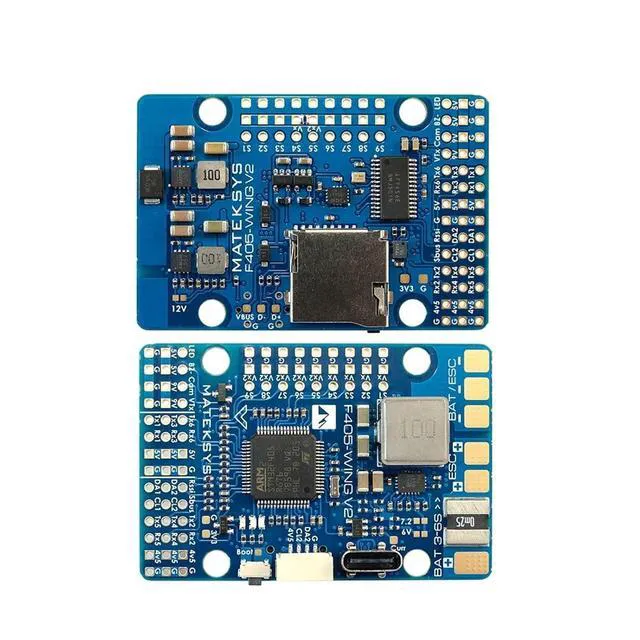

HTLNUZD Mateksys F405 Wing V2 Flight Controller STM32F405RGT6 ICM42688P, OSD, SD Slot ArduPilot/INAV for RC Aircraft
Limited time offer, ends 09/19 By Kepler Forge
- POWERFUL MCU & PRECISE SENSORS: STM32F405RGT6 (168MHz, 1MB Flash) with ICM42688-P IMU, DPS310 baro & AT7456E OSD for stable, accurate flight; VERSATILE CONNECTIVITY: 6 UARTs, 10 PWM outputs, 2 I2C, 3 ADC & SBUS inverter. MicroSD slot for blackbox data logging; COMPATIBLE FIRMWARE: Supports ArduPilot (MatekF405-Wing, 4.4+) & INAV (MATEKF405SE, 6.0+). USB-C for easy setup; ROBUST POWER SYSTEM: 9-30V input (3-6S LiPo) with 220A current sensor. 5V/9V/12V/Vx BECs for peripherals & servos; MULTI-DEVICE SUPPORT: Powers receiver, camera, VTX, GPS & more. 5A Vx BEC (adjustable) for servos; 2A for 5V/9V/12V
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

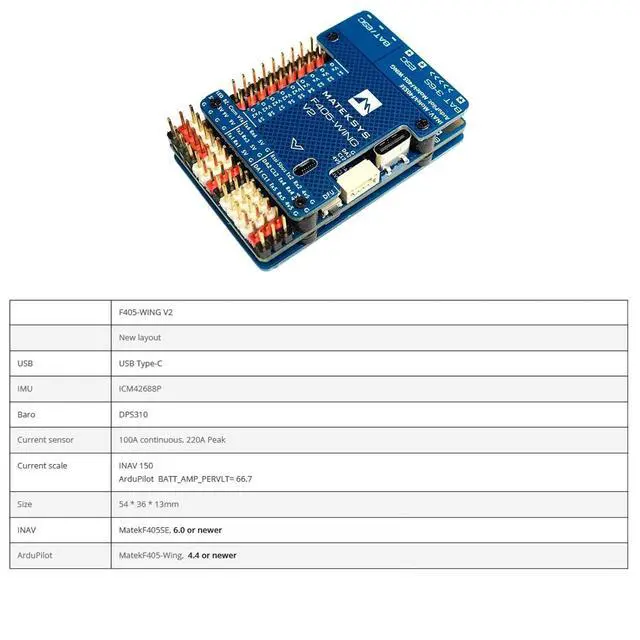

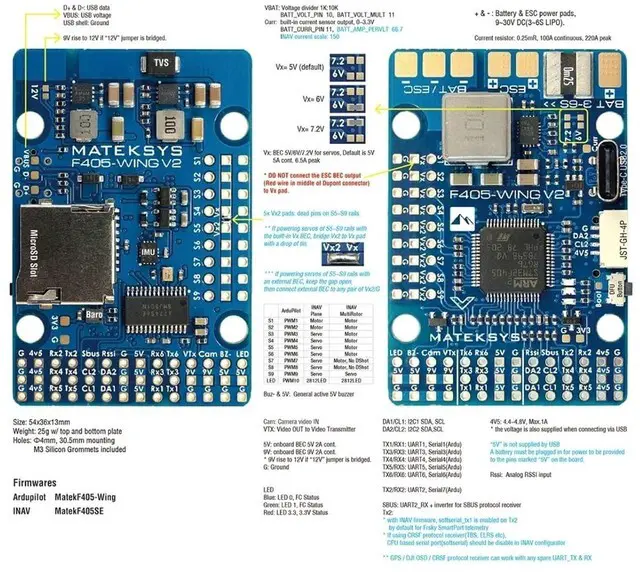

FC Specifications MCU: STM32F405RGT6, 168MHz, 1MB
Flash IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot 6x UAR
Ts, 1x Softserial_Tx option (INAV) 10x PWM outputs 2x I2C 3x ADC (VBAT, Current, RSSI) Built in inverter for SBUS input USB Type-C(USB 2.0 )
FC Firmware ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
INAV: MATEKF405SE (INAV 6.0 or newer) PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A /V)
Sense resistor: 100A continuous, 220A peak
Battery Voltage divider 1K: 10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps BEC 9V /12V output Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps 12V option with Jumper pad for stable 9V/12V output, input voltage should > output voltage +1V BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V options
Continuous current: 5 Amps, 6A Peak for stable Vx output, input voltage should > Vx voltage +1V BEC 3.3V output Designed for external 3.3V peripherals
Linear Regulator Continuous current: 200mA
Physical Mounting: 30.5 x 30.5 mm, 4mm with Grommets 3mm

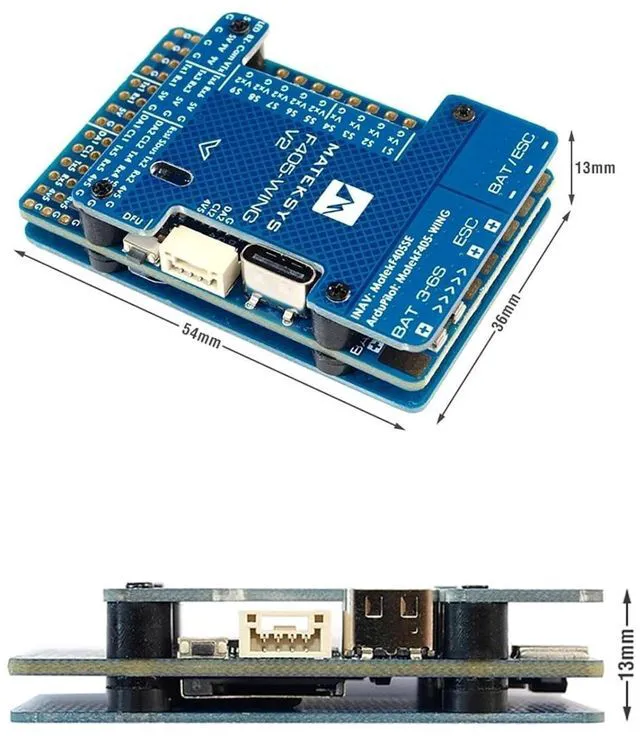

Dimensions: 54 x 36 x 13 mm
Weight: 25g Including 1x F405-Wing-V2 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port Dupont 2.54 pins (Board is shipped unsoldered)
Flash IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot 6x UAR
Ts, 1x Softserial_Tx option (INAV) 10x PWM outputs 2x I2C 3x ADC (VBAT, Current, RSSI) Built in inverter for SBUS input USB Type-C(USB 2.0 )
FC Firmware ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
INAV: MATEKF405SE (INAV 6.0 or newer) PDB
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A /V)
Sense resistor: 100A continuous, 220A peak
Battery Voltage divider 1K: 10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) BEC 5V output Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps BEC 9V /12V output Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps 12V option with Jumper pad for stable 9V/12V output, input voltage should > output voltage +1V BEC Vx output Designed for Servos Voltage adjustable, 5V Default, 6V or 7.2V options
Continuous current: 5 Amps, 6A Peak for stable Vx output, input voltage should > Vx voltage +1V BEC 3.3V output Designed for external 3.3V peripherals
Linear Regulator Continuous current: 200mA
Physical Mounting: 30.5 x 30.5 mm, 4mm with Grommets 3mm
Dimensions: 54 x 36 x 13 mm
Weight: 25g Including 1x F405-Wing-V2 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port Dupont 2.54 pins (Board is shipped unsoldered)
