RadioMaster GX15 MAX ELRS Gemini AG02 CNC Touch FPV Transmitter
Limited time offer, ends 09/19 By Kepler Forge
- Dual SX1281 chips + dual antennas for 1W output, ultra-low latency, and strong interference rejection confident long-range FPV; Dual SX1281 chips + dual antennas for 1W output, ultra-low latency, and strong interference rejection confident long-range FPV; Front-mounted 600-nit display, 480×320 resolution clear in direct sun, simplifies EdgeTX tuning and telemetry monitoring; STM32H750 processor + built-in fan and aluminum heatsink maintain full output during extended sessions without overheating; USB-C charging supports 2S LiPo, 18650, 21700; JR bay for Crossfire/R9; 32GB SD card for models and logs
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

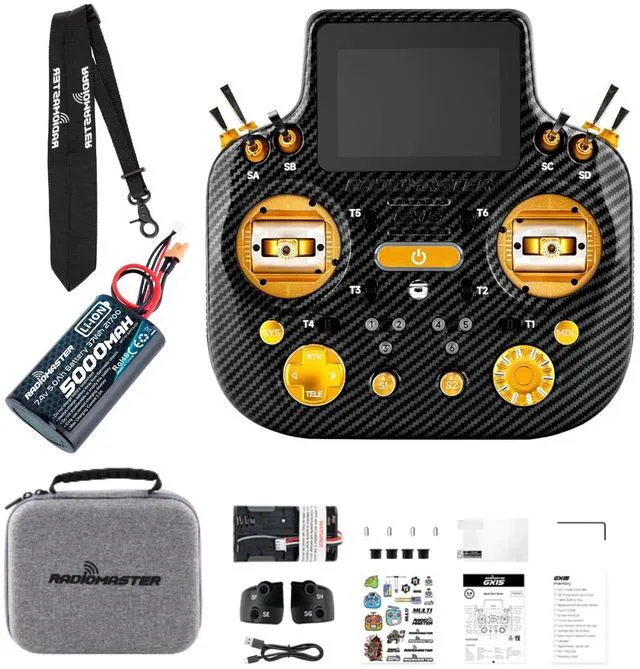

Product Description RadioMaster GX15 MAX The RadioMaster GX15 MAX is a flagship ExpressLRS transmitter for FPV pilots who demand performance, precision, and reliability. Powered by EdgeTX opensource firmware and premium hardware, it delivers prograde control for racing, longrange, and freestyle flying. Key Features Gemini Dual RF System Dual SX1281 RF chips + dual antennas deliver 1W output, ultralow latency, and strong interference rejection for a rocksolid link fly far and fast with confidence. AG02 CNC Hall Gimbals CNCmachined with four precision bearings and contactless Hall sensors, these gimbals offer zero wear, no drift, and silkysmooth control.
Adjustable tension and RGB lighting let you personalize feel and style. 3.5 IPS Touchscreen The frontmounted 600nit display stays readable in direct sunlight. Its responsive touch interface makes EdgeTX tuning, model setup, and telemetry monitoring quick and effortless. Active Cooling System A builtin fan paired with an aluminum heatsink keeps the RF module cool during extended highpower sessions so you never lose performance when it matters most. Flexible Power & Expansion USBC charging supports 2S LiPo, 18650 (5000mAh / 6200mAh optional), and 21700 batteries. The JRsize external module bay accepts Crossfire, R9, and other thirdparty modules.
A 32GB SD card slot provides ample storage for model profiles and telemetry logs.
MAX Colors: Black, Charcoal, Red, Gold, Blue
Operating Voltage: DC 6.6V 8.4V
Max Current: 850mA
Dimensions: 178 × 168 × 81mm
MCU: STM32H750
RF Protocol: ExpressLRS 2.4GH z
Gemini RF Chip: Dual
SX1281 Channels: Up to 16 (RXdependent)
Display: 3.5 IPS touchscreen, 480×320, 600 nits
Gimbals: AG02 CNC Hall (4 bearings)
Storage: 32GB SD card (FAT32)
Module Bay: JRsize external bay
Battery Support: 2S LiPo / 18650 (5000mAh / 6200mAh) / 21700
Charging: USBC
Firmware: EdgeTX v 2.12. 0+ What's in the Box GX15 MAX Transmitter USBC Cable User Manual Gemini dual RF for unmatched link stability AG02 CNC Hall gimbals for precision and durability Sunlightreadable touchscreen for effortless field tuning Active cooling for consistent highpower output Multibattery flexibility and JR module bay for futureproof expansion
Adjustable tension and RGB lighting let you personalize feel and style. 3.5 IPS Touchscreen The frontmounted 600nit display stays readable in direct sunlight. Its responsive touch interface makes EdgeTX tuning, model setup, and telemetry monitoring quick and effortless. Active Cooling System A builtin fan paired with an aluminum heatsink keeps the RF module cool during extended highpower sessions so you never lose performance when it matters most. Flexible Power & Expansion USBC charging supports 2S LiPo, 18650 (5000mAh / 6200mAh optional), and 21700 batteries. The JRsize external module bay accepts Crossfire, R9, and other thirdparty modules.
A 32GB SD card slot provides ample storage for model profiles and telemetry logs.
Specifications
Model: GX15MAX Colors: Black, Charcoal, Red, Gold, Blue
Operating Voltage: DC 6.6V 8.4V
Max Current: 850mA
Dimensions: 178 × 168 × 81mm
MCU: STM32H750
RF Protocol: ExpressLRS 2.4GH z
Gemini RF Chip: Dual
SX1281 Channels: Up to 16 (RXdependent)
Display: 3.5 IPS touchscreen, 480×320, 600 nits
Gimbals: AG02 CNC Hall (4 bearings)
Storage: 32GB SD card (FAT32)
Module Bay: JRsize external bay
Battery Support: 2S LiPo / 18650 (5000mAh / 6200mAh) / 21700
Charging: USBC
Firmware: EdgeTX v 2.12. 0+ What's in the Box GX15 MAX Transmitter USBC Cable User Manual Gemini dual RF for unmatched link stability AG02 CNC Hall gimbals for precision and durability Sunlightreadable touchscreen for effortless field tuning Active cooling for consistent highpower output Multibattery flexibility and JR module bay for futureproof expansion
