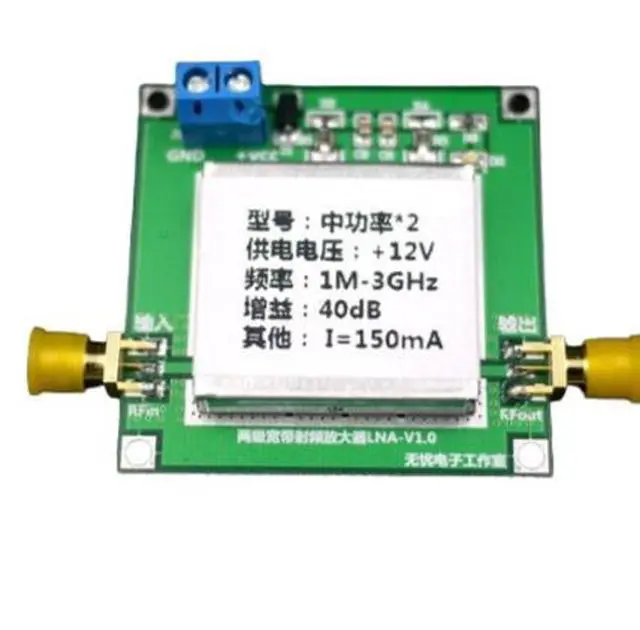

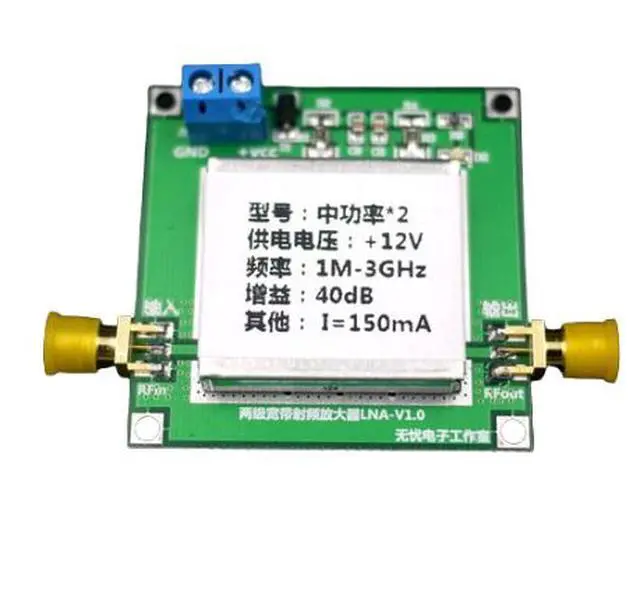

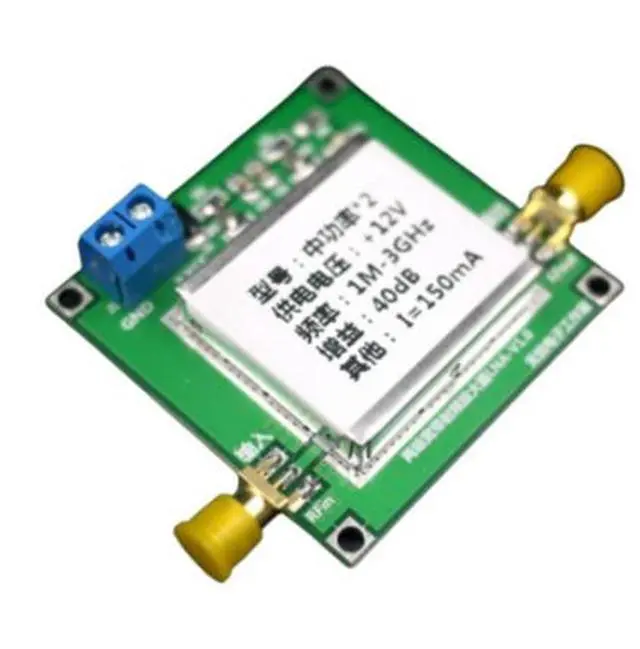

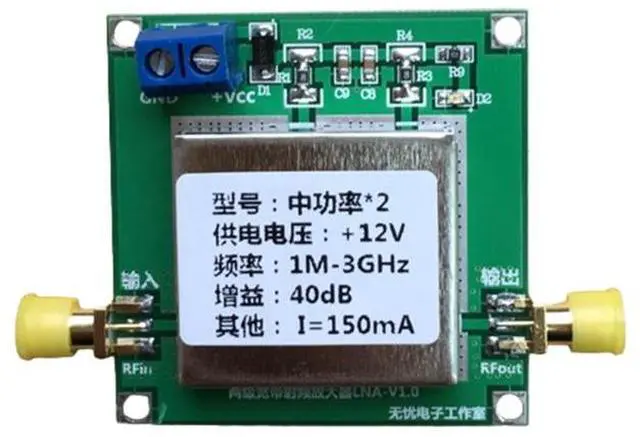

Radio frequency wideband high-power amplifier LNA (gain: 40dB, frequency range: 1 MHz - 3 GHz)
- Radio frequency wideband high-power amplifier LNA (gain: 40dB, frequency range: 1 MHz - 3 GHz)Power supply voltage: 12V direct current (typical current value: 150MA)
- 2. Gain: 39 dB Input and output impedance: 50 ohms
- 3. Maximum output power: 19.5 dBm (6 VPP / 50 ohm load)
- 4. Input signal: <= -20DBM (When the input exceeds -20dBm, the output signal will become distorted)
- 5. Bandwidth: 1 MHz to 3 GHz (The gain varies at different frequencies. For specific details, please refer to the S21 curve indicators)
- 6. Noise Figure: 2 dB (measured at 1.5 GHz)
- 7. With a metal casing for shielding
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Radio frequency wideband high-power amplifier LNA (gain: 40dB, frequency range: 1 MHz - 3 GHz)
Power supply voltage: 12V direct current (typical current value: 150MA)
2. Gain: 39 dB Input and output impedance: 50 ohms
3. Maximum output power: 19.5 dBm (6 VPP / 50 ohm load)
4. Input signal: <= -20DBM (When the input exceeds -20dBm, the output signal will become distorted)
5. Bandwidth: 1 MHz to 3 GHz (The gain varies at different frequencies. For specific details, please refer to the S21 curve indicators)
6. Noise Figure: 2 dB (measured at 1.5 GHz)
7. With a metal casing for shielding
