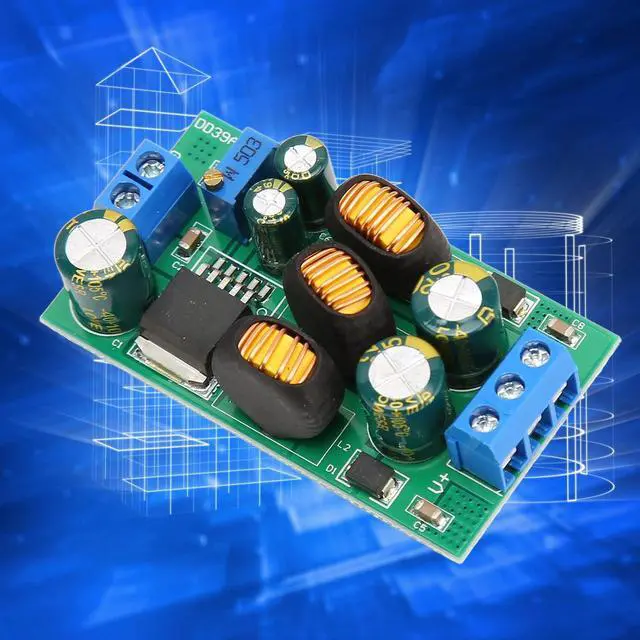

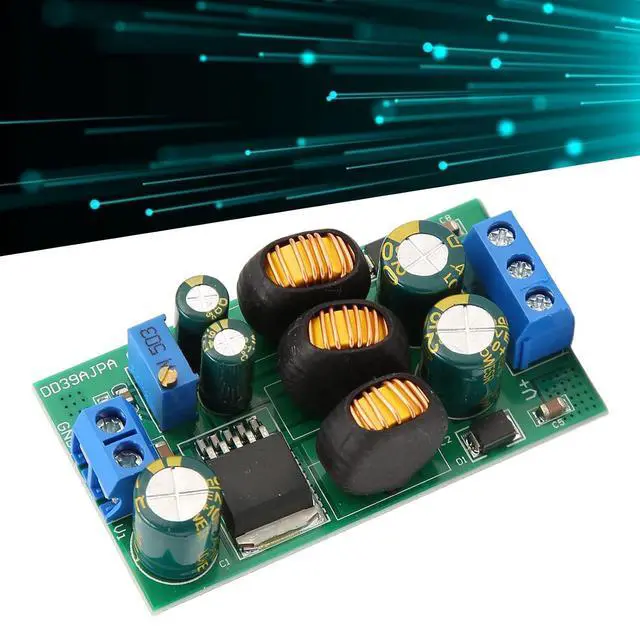

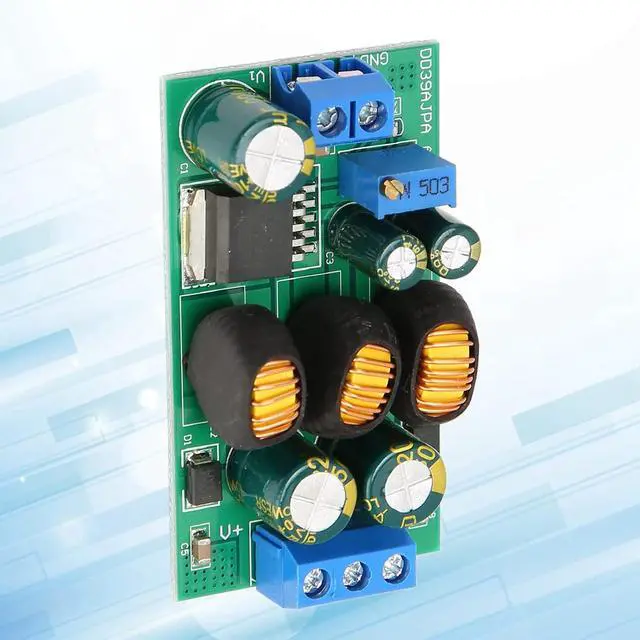

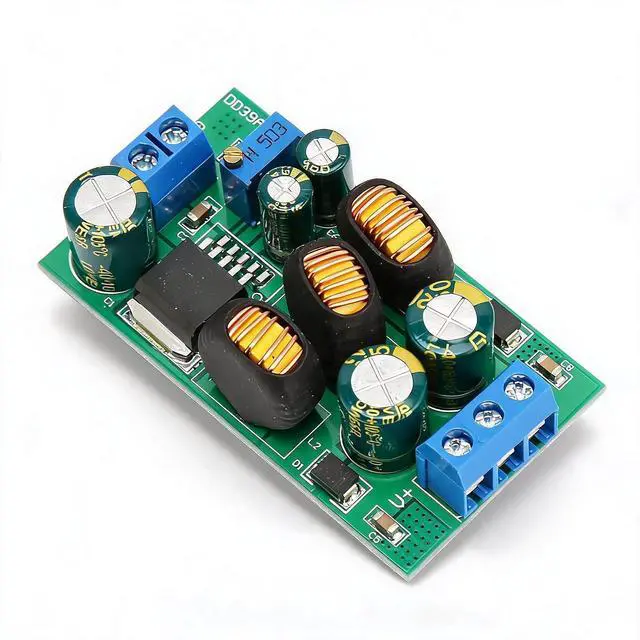

Boost Voltage Regulator, 20W DC DC 3.6V30V Boost Converter, 2 Modes PCB Dual Output Power Voltage Module for Power Supply

1.

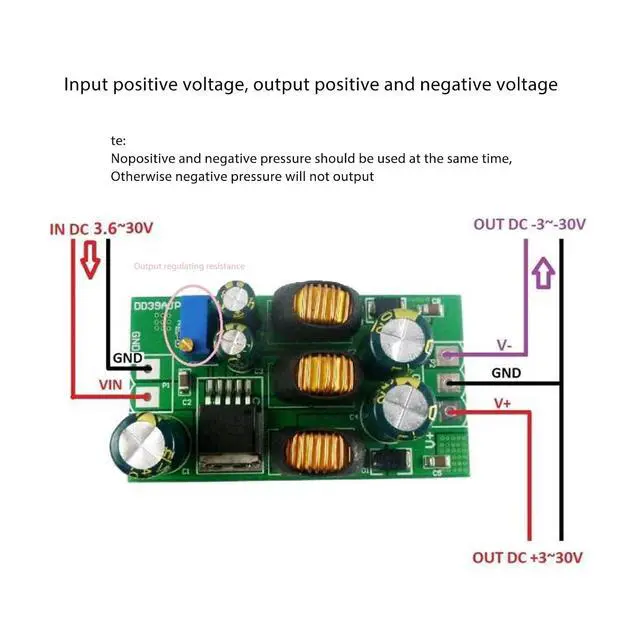

Work Mode 1: Input positive voltage and output positive and negative voltage. Positive and negative voltage should be used at the same time, otherwise negative pressure will not output.
2.

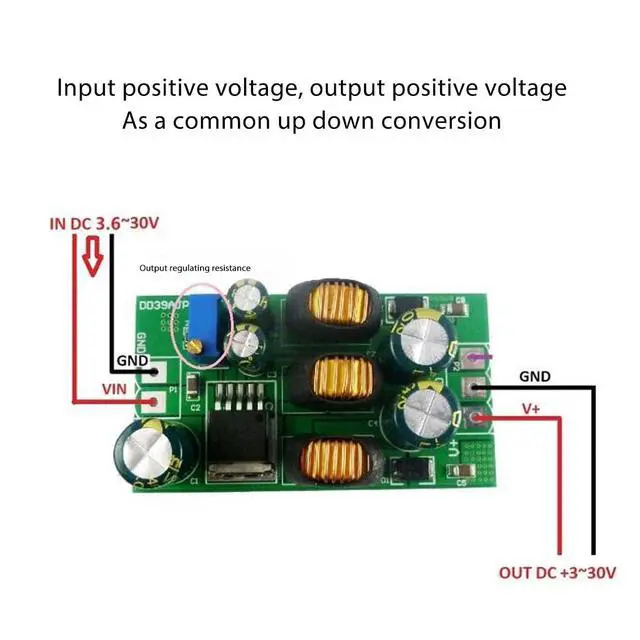

Work Mode 2: Input positive voltage, output positive voltage, as a common boost converter. 3.
PCB Board: The PCB board makes the module strong and, ensuring a better user experience and a long life span.
4.

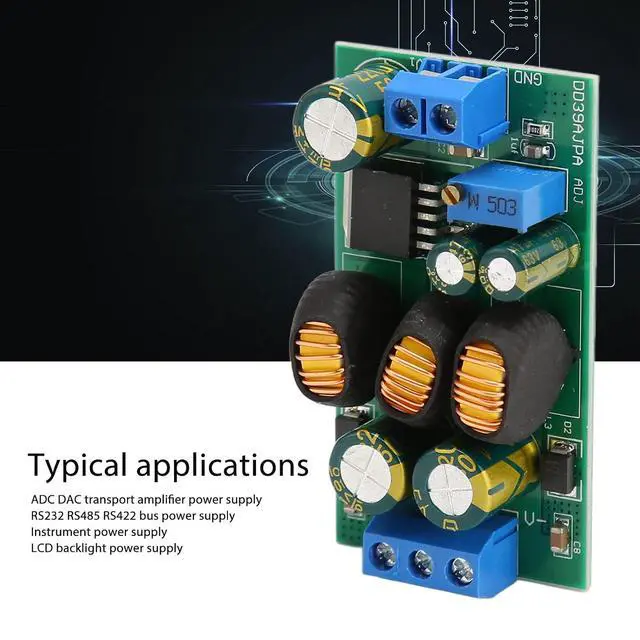

Wide Application: This power module is mainly used for car power supply, instrument power supply, LCD backlight power supply, etc.
5.
Easy to Install: Boost Voltage Regulator Comes with a compact size and a light weight as well, the easy installation can be quickly completed.
Specification: Item
Type: Dual
Output Power Module Material: PCB
Input DC: 3.6 -30V Output DC ± 3-30V adjustable Maximum
Output Power: 20W (output power is different under different conditions)
Maximum Conversion Efficiency: 68 to 89%
Static Working Current: 2.5 mA How to
Use:
Q1: Why is the output voltage less than the nominal voltage?: This may be because the load is too large or the power supply is too small.
Q2: Why is the negative voltage not output or the output too low?: Negative voltage cannot be used alone. When using negative voltage, the same load must be applied at the positive voltage end.
packing list: 1 xDual Output Power Module
