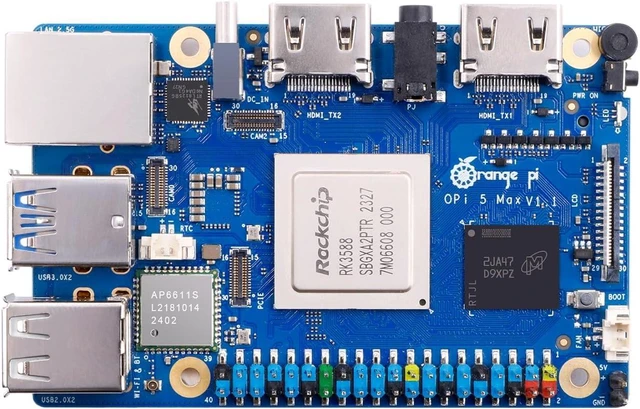

Pi 5 Max 6GB/8GB/16GB LPDDR5 Rockchip RK3588 8-Core 64-Bit Single Board Computer with eMMC Socket, Wi-Fi 6E/Bluetooth 5.3/BLE, Development Board Run Linux/Ubuntu/Debian/Android(6GB)

Size: 6 GB

[LPDDR 5 Memorry Standard]: Orange Pi 5 MAX is equipped with a Rockchip RK3588 8-core 64-bit processor. It offers 8GB, or 16GB of LPDDR5 RAM and supports an eMMC socket for connecting 32GB, 64GB, or 256GB eMMC module.
[Efficient Artificial Intelligence NPU]: Equipped with a built-in 6TOPS NPU, it supports INT4/INT8/INT16 hybrid computing, making it ideal for developing AI applications. Whether it's image recognition, natural language processing, or machine learning, this board provides robust support.
[Powerful Wireless Communication]: Supporting Wi-Fi 6E and Bluetooth 5.3, it offers faster wireless transmission speeds and more stable connectivity. Additionally, it supports low energy Bluetooth (BLE), meeting various wireless communication needs.
[Rich Display Interfaces]: With dual HDMI 2.1 ports supporting up to 8K@60FPS resolution and a 4-Lane MIPI DSI interface, its suitable for high-end applications such as VR cameras and deep vision. Dual 4-Lane MIPI CSI interfaces and MIPI D-PHY provide more options for camera connections.
[Versatile Application Scenarios]: Ideal for a range of applications including AI teaching and training, algorithm verification, intelligent carts, robotic arms, edge computing, drones, cloud computing, AR/VR, smart home technology, and intelligent transportation.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Hardware Parameters

Master ChipRockchip RK3588 (8nm LP process)
CPU: 8-core 64-bit processor 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz
GPU: Integrated ARM Mali-G610 Built-in 3D GPU Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2.
NPU: Embedded NPU supports INT4/INT8/INT16/FP16 hybrid computing with up to 6TOPS.
PMU: RK806-1
RAM: LPDDR5 4GB8GB16GB optional
Memory: eMMC Flash Sockets(default) eMMC socket support: 32GB, 64GB, 128GB, 256GB optional QSPI Nor FLASH: 16MB MicroSD card slot M.2 M-KEY slot: Support NVMe SSD (PCIe 3.0 4Lane)
USB: 2USB3.0;2USB2.0;
Video: 2* HDMI 2.1, up to 8k@60FPS 1* MIPI DSI TX 4 Lane
Camera: 2* MIPI CSI 4 Lane 1* MIPI D-PHY RX 4 Lane
AudioCODEC: ES8388 1* Audio 3.5mm jack with mic 1MIC In 1HDMI 2.1 eARC
Ethernet: 1PCIe 2.5G LAN(RTL8125BG )
Wi-Fi+BT Module: Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611Wi-Fi interface: SDIO3.0BT interface: UART/PCM
Expansion Port: Dual-row pin: 2.54mm 40PinSupports DC 5V and 3.3V power outputConfigurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1 BOOT key, 1 * On/Off key
Power Source: Supports Type-C power supply, 5V @ 5A
LED: RGB LED Side Illumination
FAN: 5V 2PIN 1.25mm socket
RTC: 3V 2PIN 1.25mm socket
Debugging: Debug serial UART included in 40PIN expansion port
Supported OS: Orangepi OS(Droid), Orangepi OS(Arch), Orangepi OS(OH), Ubuntu, Debian, Android12
