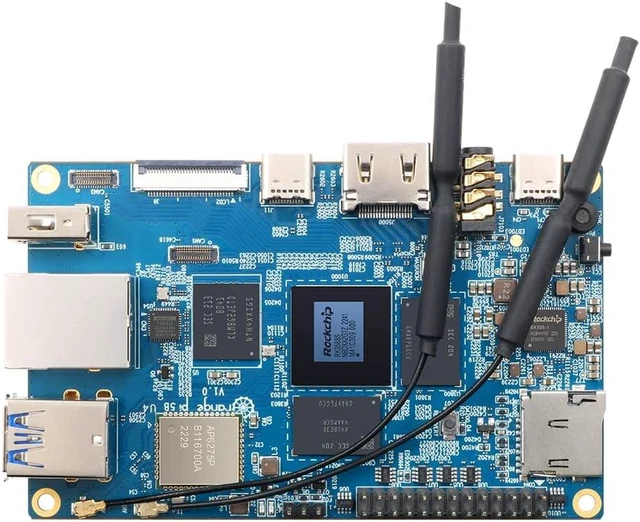

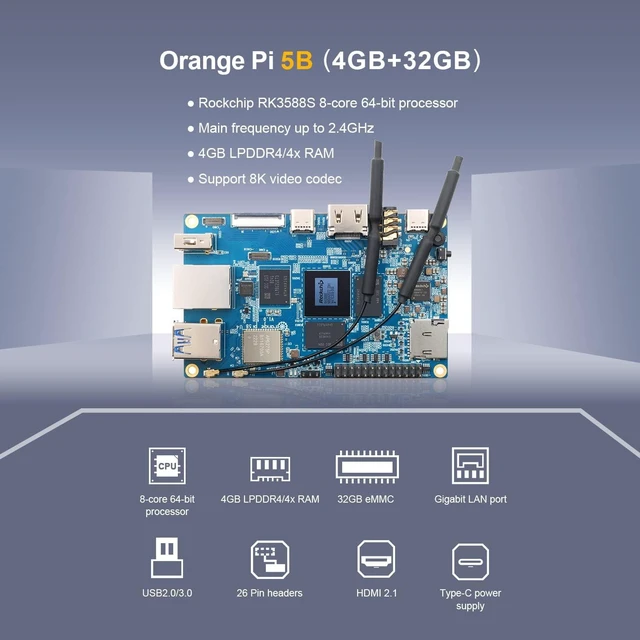

Pi 5B 4GB/8GB/16GB LPDDR4/4X Rockchip RK3588S 8-Core 64 Bit Single Board Computer with Onboard 32GB eMMC Flash, Run Linux/Debian/Ubuntu/Android OS(4GB+32GB)

Size: 4GB + 32GB

[High-Performance Processing]: Orange Pi 5B is powered by a Rockchip RK3588S 8-core processor, featuring 4 Cortex-A76 cores and 4 Cortex-A55 cores, with a maximum frequency of up to 2.4GHz. Along with a built-in NPU offering 6 TOPS of AI computing power. Available with 4GB, 8GB, 16GB of LPDDR4/4x memory, and 32GB, 64GB, or 256GB of eMMC storage, this board supports dual-band Wi-Fi 6, Bluetooth 5.0, and up to 8K display processing capabilities.
[Enhanced Connectivity Over Orange Pi 5]: Orange Pi 5B adds advanced wireless communication features, including Wi-Fi 6 and Bluetooth 5.0 to the Orange Pi 5. The Wi-Fi supports 2T2R 802.11 ax/ac/a/b/g/n, utilizing both 2.4GHz and 5GHz bands with MIMO standard, using PCIe 2.1 interface. Bluetooth 5.0 uses UART/PCM interface. Additionally, the Orange Pi 5B can be equipped with 32GB, 64GB, 128GB, or 256GB of eMMC storage, enhancing its performance and versatility.

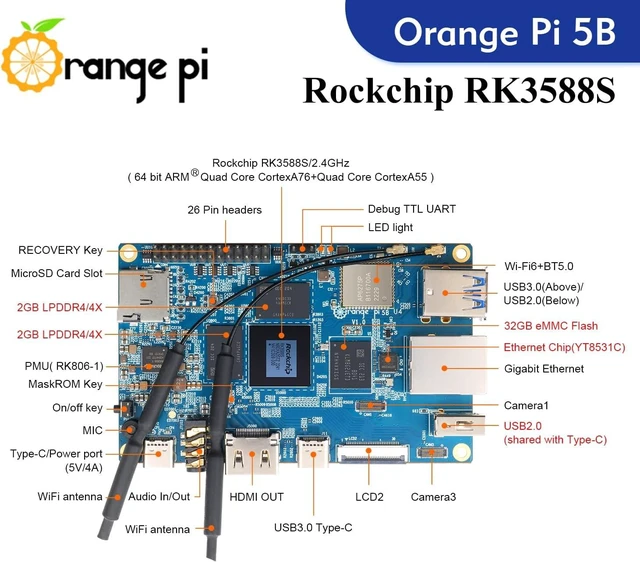

[Versatile Application Scenarios]: Orange Pi 5B single-board computer offers a rich set of interfaces, including HDMI output, a GPIO interface, USB Type-C port, Gigabit LAN port, 2 USB 2.0 ports, and 1 USB 3.0 port. It is designed for a wide range of applications, including tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home systems, and various AIoT industries.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Product parameter

SoC: Rockchip RK3588S(8nm LP process)
CPU: 8-core 64-bit processor Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU: Arm Mali-G610 MP4 Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB(LPDDR4/4X)
Memory: 32GB/64GB/128GB/256GB eMMC MicroSD (TF) Card Slot
USB: USB3.1 * 1USB2.0 * 2Type-C (USB3.1) * 1
Video Output: HDMI2.1, up to 8K@60Hz DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera: MIPI CSI 4Lane 2 * MIPI D-PHY RX 4Lane
AudioCODEC: ES8388 3.5mm headphone jack audio input/output Input: Onboard MIC HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet

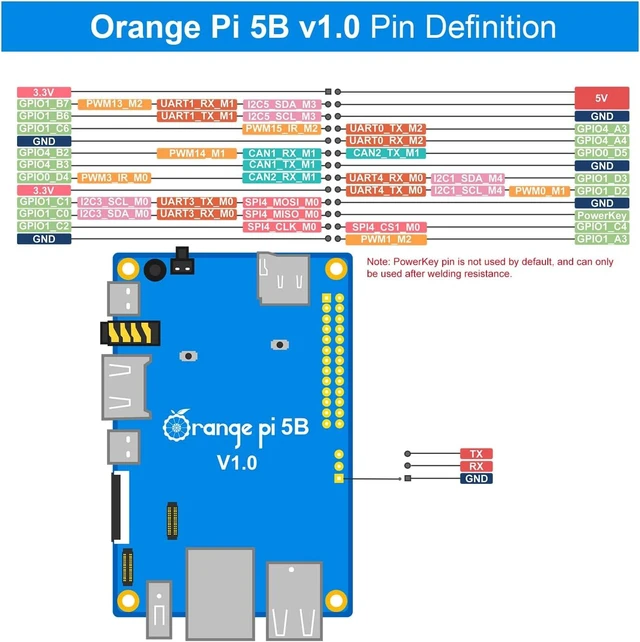

Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces
Wi-Fi+BT module: On-board Wi-Fi6+BT 5.3 module, Wi-Fi6 interface: PCIe, BT interface: PCM+UART
Button: 1*MaskROM key, 1Recovery key, 1*On/Off key
Power Source: Support Type-C power supply, 5V@4A
LED: Power indicator: redStatus indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid),Orangepi OS(Arch), Debian11, Ubuntu22.04, Ubuntu20.04, Android12

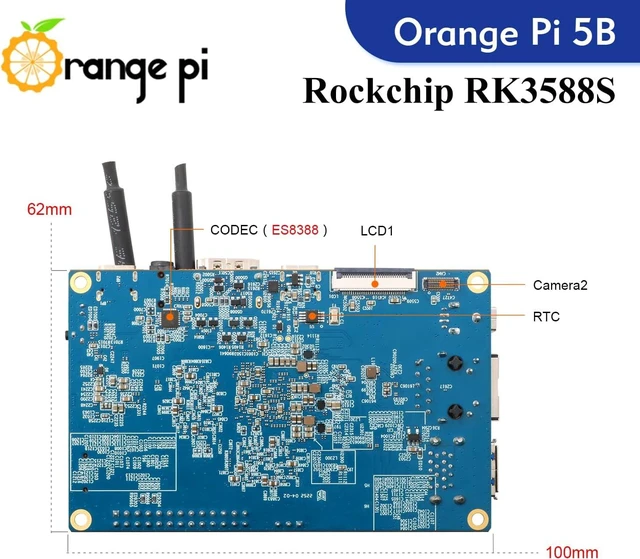

Dimension: 62mm100mm
Weight: 52g
