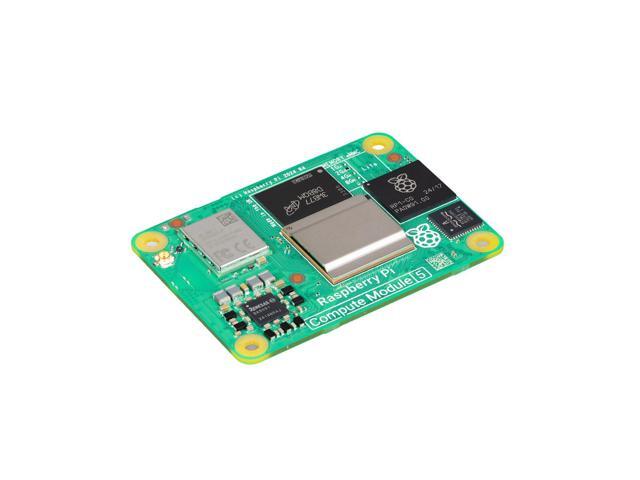

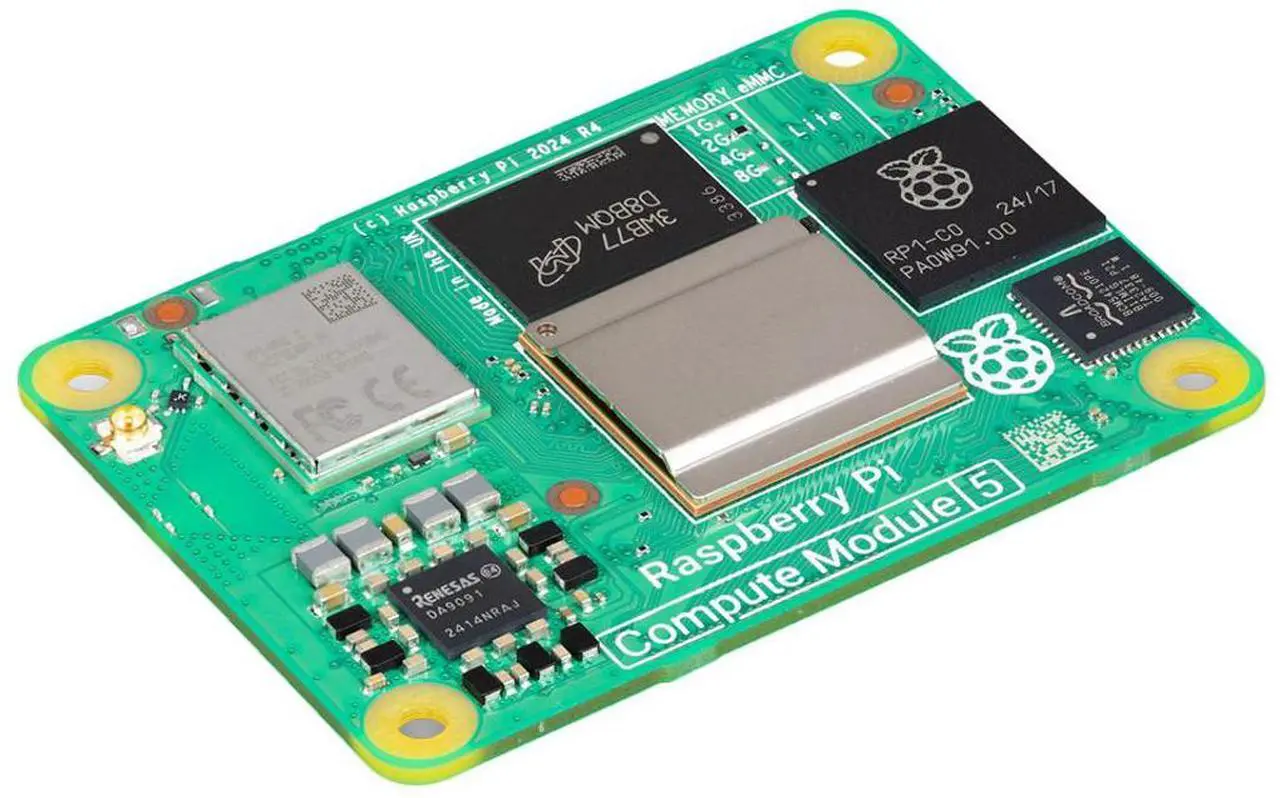

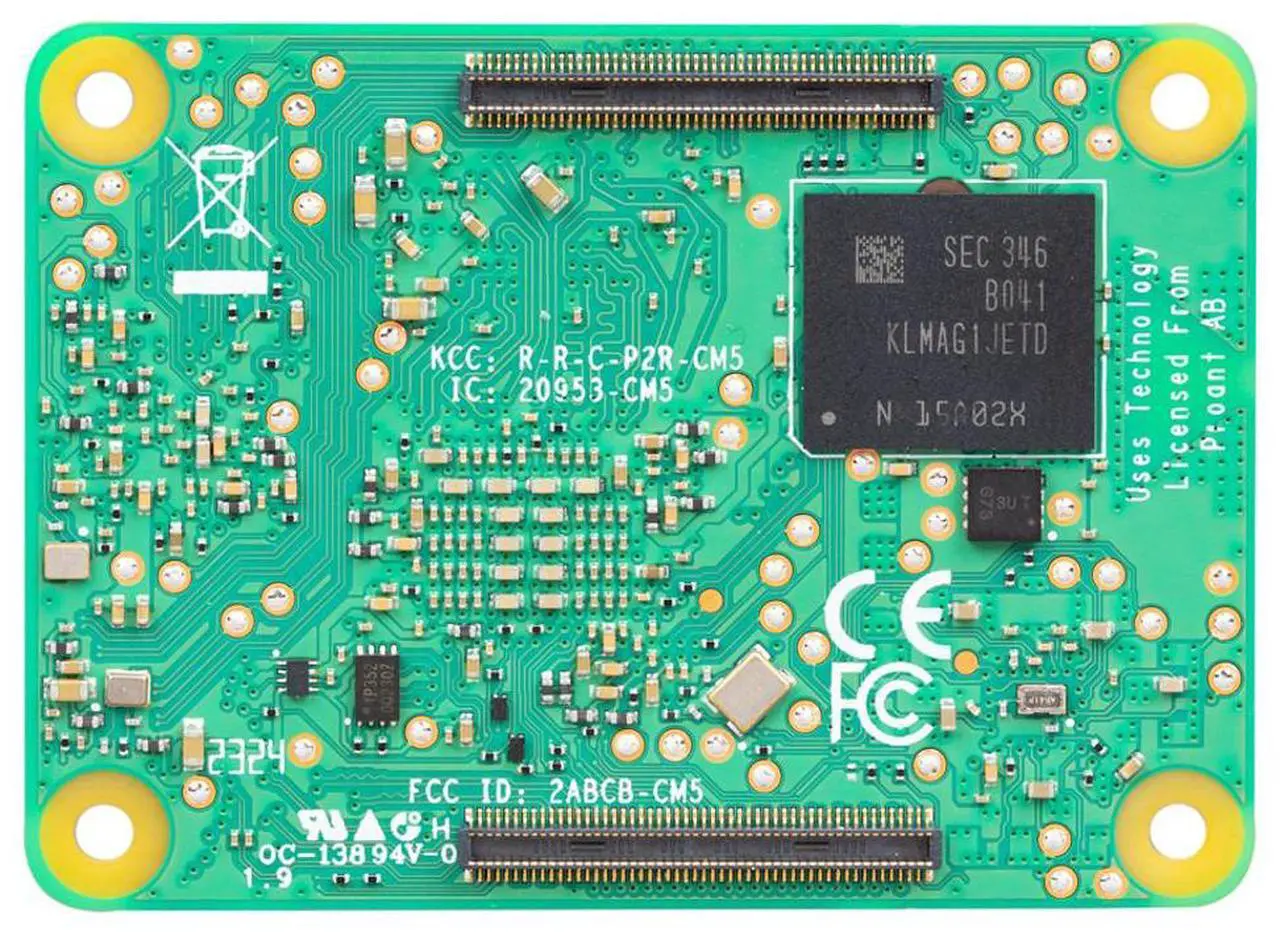

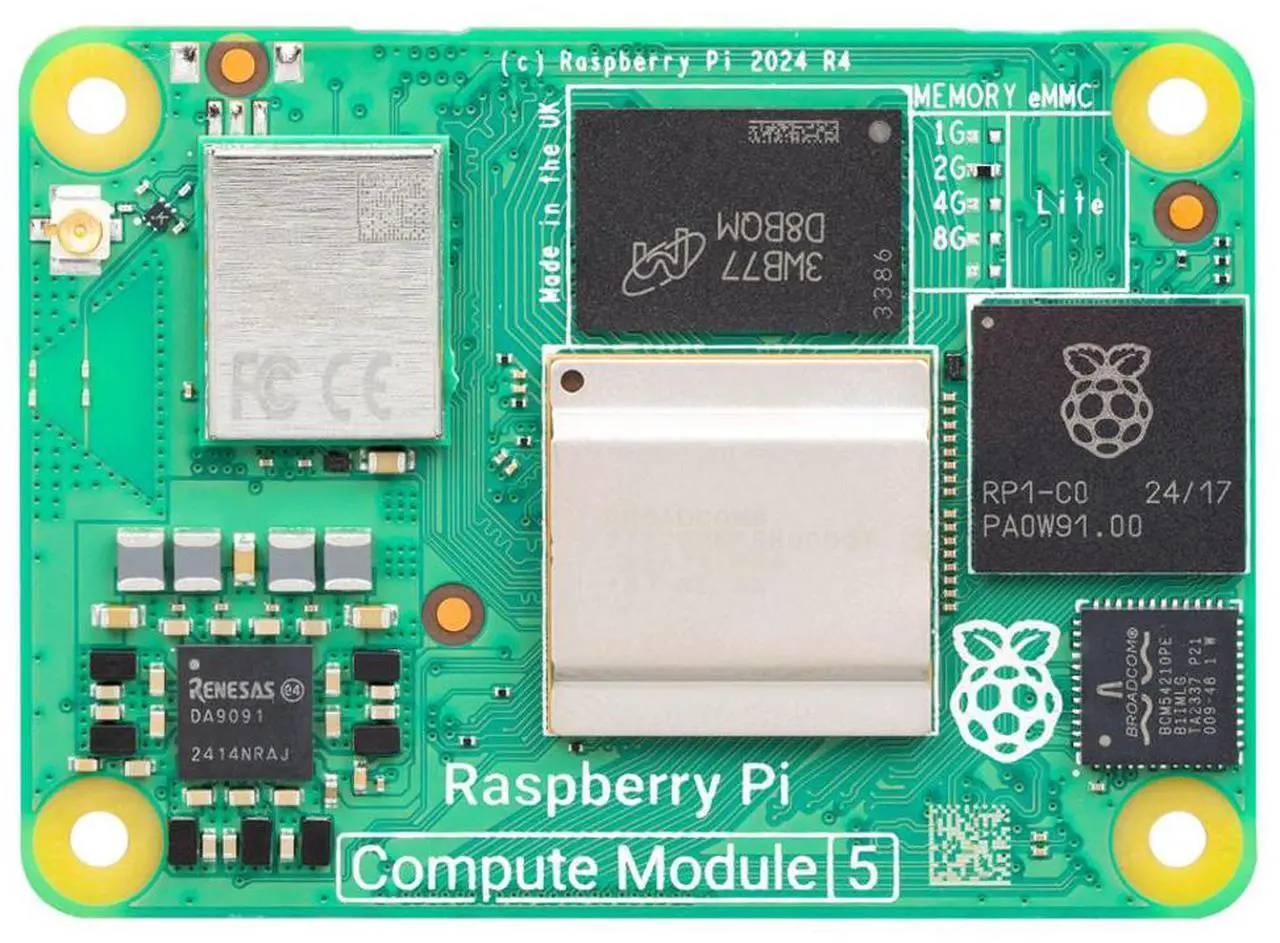

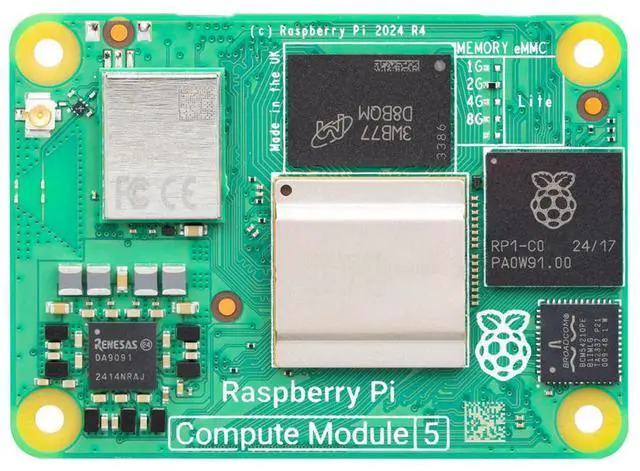

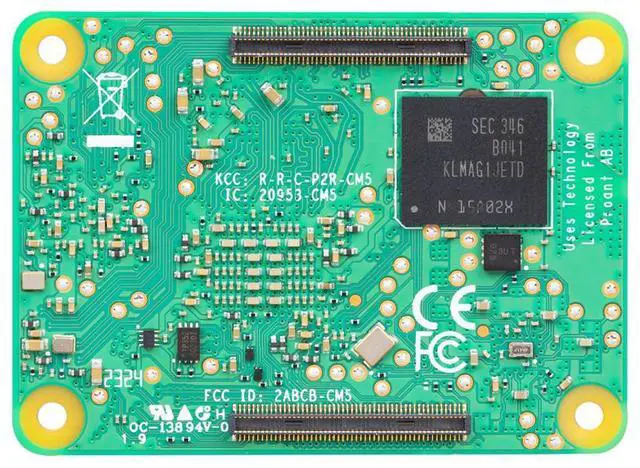

CM5102032 Raspberry Pi Compute Module 5, Wireless, 2GB RAM, 32GB eMMC
- Form Factor: 55 mm × 40 mm × 4.7 mm module, 4 × M2.5 mounting holes
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz
- Memory: 2GB RAM, 32GB eMMC
- Connectivity:
- Certified radio module containing:
- 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless
- Bluetooth 5.0, BLE
- On-board electronic switch to select between PCB trace or external antenna
- Gigabit Ethernet PHY supporting IEEE 1588
- 1 × PCIe x1 root complex, Gen 2 (5Gbps)
- 1 × USB 2.0 port (high speed)
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:
- Up to 5 × UART
- Up to 5 × I2C
- Up to 5 × SPI
- 1 × SDIO interface
- 1 × DPI (parallel RGB display)
- 1 × I2S
- Up to 4 × PWM channels
- Up to 3 × GPCLK outputs
- Video:
- 2× HDMI 2.0 ports(supports up to 4Kp60 on both ports simultaneously)
- 2× 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port)
+
+
Overview
Specs
Reviews
CM5102032 Raspberry Pi Compute Module 5, Wireless, 2GB RAM, 32GB eMMC
Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5s powerful hardware and optimized software stack in your own custom systems and form factors. In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design.
To assist product designers, the Raspberry Pi Development Kit for Compute Module 5 offers an ideal environment for prototyping embedded solutions. This comprehensive kit includes a Compute Module 5 and Compute Module 5 IO Board, together with all the essential accessories to kick-start your product design.
Raspberry Pi Compute Module 5 is a system on module that delivers the power of Raspberry Pi 5 in a form factor ideal for embedded applications. Featuring a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity, and a variety of RAM and eMMC flash options, Compute Module 5 enables you to leverage Raspberry Pi 5s powerful hardware and optimized software stack in your own custom systems and form factors. In comparison with its predecessor, Compute Module 5 features additional I/O interfaces, allowing even more flexibility and providing a greater breadth of options for product and application design.
To assist product designers, the Raspberry Pi Development Kit for Compute Module 5 offers an ideal environment for prototyping embedded solutions. This comprehensive kit includes a Compute Module 5 and Compute Module 5 IO Board, together with all the essential accessories to kick-start your product design.
