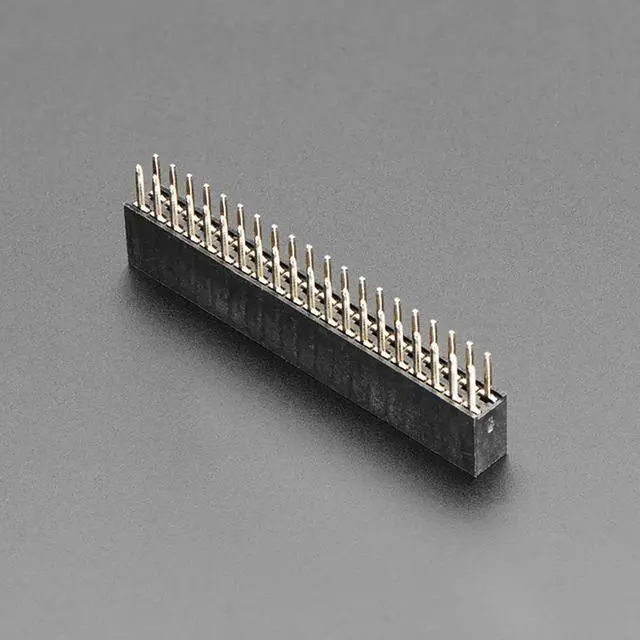

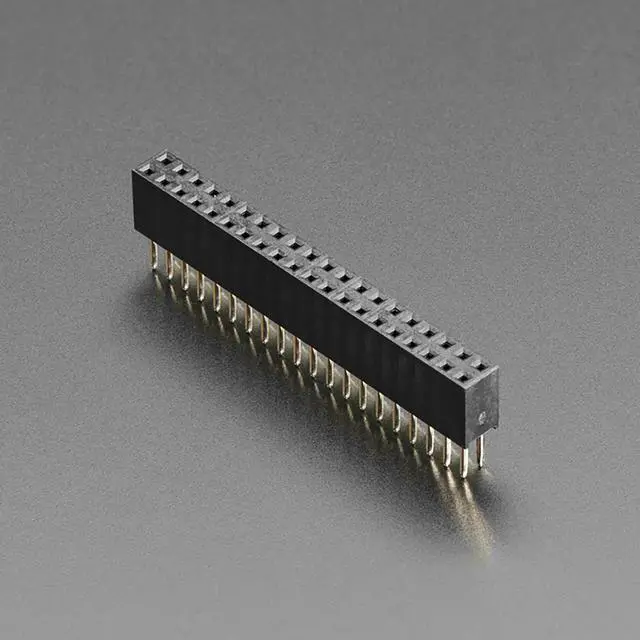

Adafruit 2x20 Socket Riser Header for Raspberry Pi HATs and Bonnets
- 6mm pin length
- 2x20 female socket header
- Works with older USB pin usage
- Fits securely into male-pin socket headers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key Features
- 2x20 female socket header
- 6mm pin length
- Works with Raspberry Pi
- Fits securely into male-pin socket headers

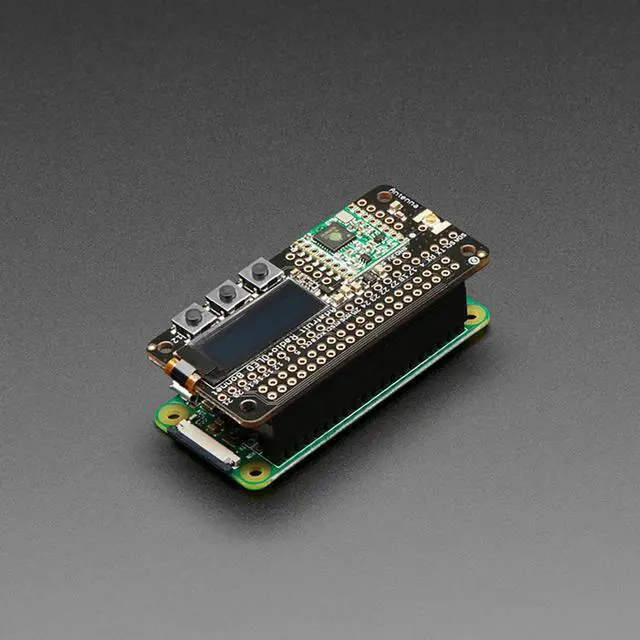

Give yourself a lift with this 2x20 female socket header that hasKEY_TAB slightly longer than usual pins. You can plug this into your Raspberry Pi GPIO port and then plug a HAT or Bonnet or Phat on top.
Especially useful for Bonnets that have slim headers on the bottom, but you want them to clear some of the components on the Pi, or fit into a case nicer.

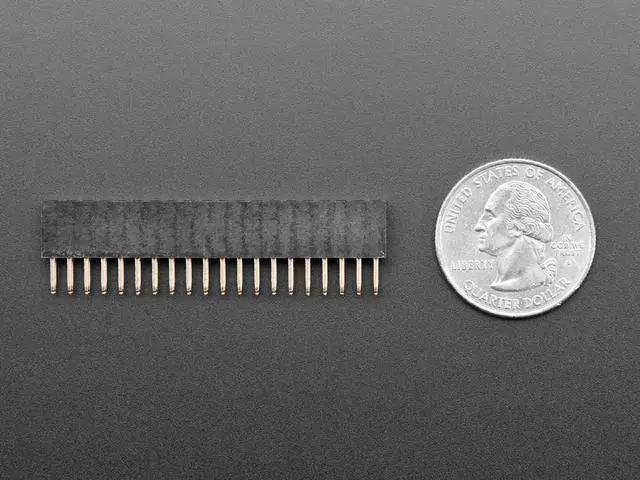

The header body is a standard 8.5mm. The pins areKEY_TAB 6mm tall, so they're securely plug into socket headers like male-pin type ones.
Item Specifics
1 - 2x20 riser header
Body Height: 8.5mm
Pin Length: 6mm
Pin Spacing: 2.5mm
Pin Thickness: 0.6mm
Size: 51.5mm x 14.0mm x 5.0mm
Weight: 4.1g
