XKC-C352-3P 10M Non-contact Water Pump High and Low Water Level Sensor Water Level Switch Controller

>>>Manual: Click here to open<<<

Overview:

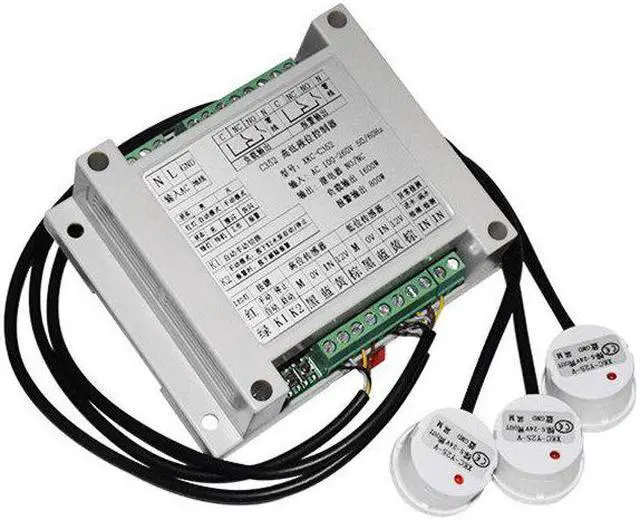

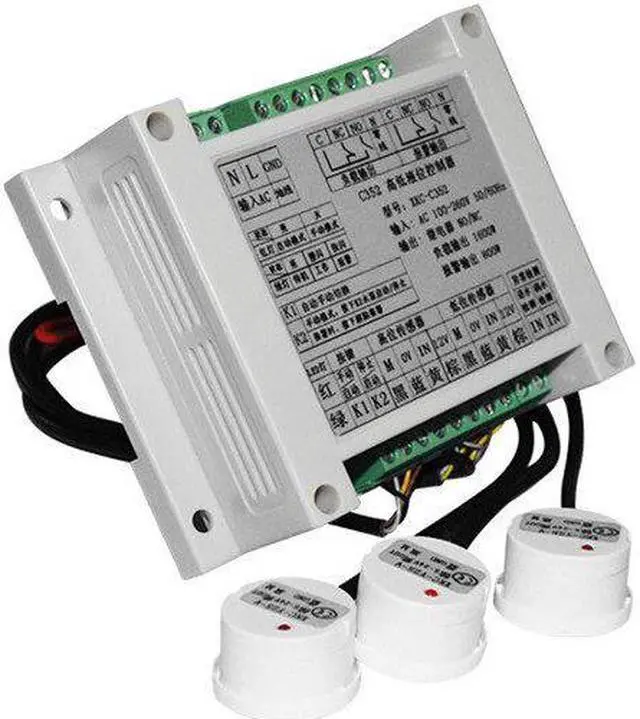

The XKC-C352 high and low liquid level controller can be used in conjunction with the XCK-Y25 non-contact liquid level sensor, or it can be used with other liquid level sensors such as floats to realize the low liquid level alarm sent by the liquid level sensor when the container liquid level is too low When the signal is signaled, the water pump automatically starts to add the liquid level, and when the liquid level reaches a certain height, the high liquid level sensor sends a signal to automatically stop the water pump, thereby realizing the automatic control function of the container liquid level. The controller has strong self-check protection ability, with water pump dry stop detection, high overflow detection, pumping overtime detection; diversified control, can control the pump in manual mode, or control the pump in automatic mode; multiple output modes, one load output, high control power It can reach 1600W, one alarm output control can reach 800W, there is a relay normally open output, and it can also output 110V or 220V. The controller has comprehensive functions and is suitable for a variety of applications.

Features:

1. Strong compatibility, can use a variety of liquid level sensor input control;

2. Strong protection, with waterproof pump idling protection and water level overflow detection output, with 4 hours overtime pumping alarm;

3. Relay dry node output, suitable for multiple load control;

4. The control is diversified, and the pump can be controlled in manual or automatic mode;

5. The installation is simple and convenient. It can be installed with screws or electric box tracks;

Electrical parameters:

Model

XKC-C352-3P

Name
