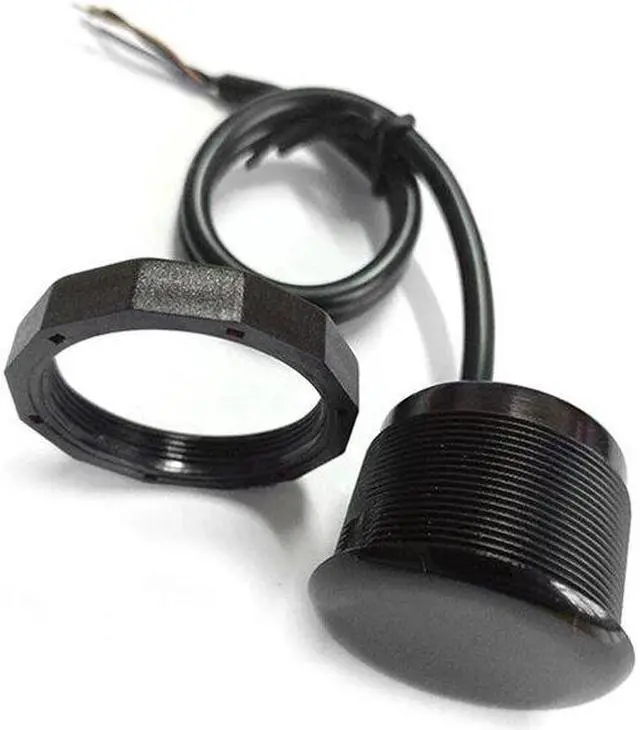

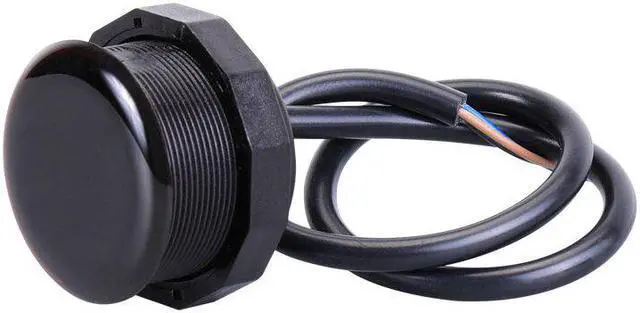

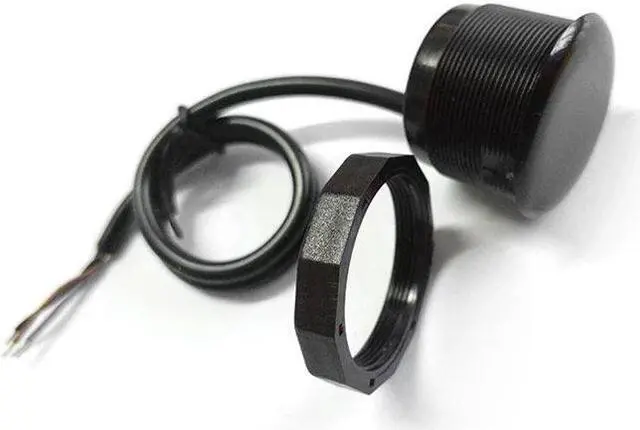

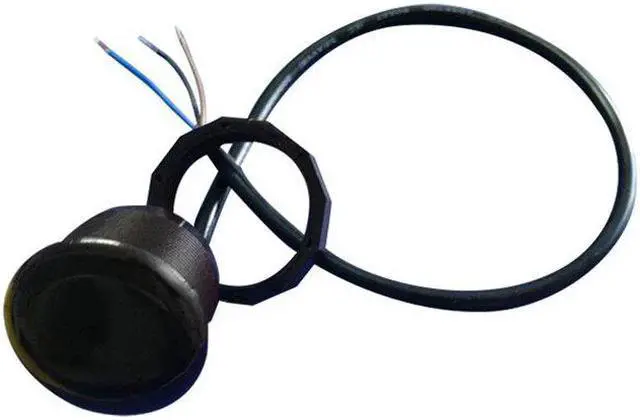

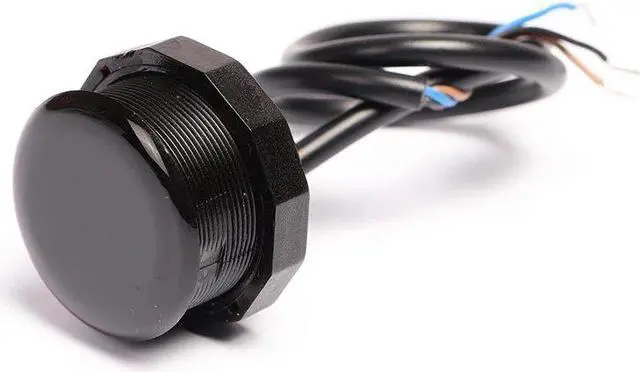

XKC-KD200-M DC5-24V Infrared Sensor Intelligent Photoelectric Human Distance Measurement Motion Sensor Switch

>>>Manual: Click here to open<<<

Description:

XKC-KD200X is an intelligent non-contact sensor switch. The sensor uses the principle of diffuse reflection of infrared light on the object. When a person or object enters the sensing range directly in front of the sensor, the sensor immediately judges that there is a sensor, thereby controlling the output signal; After the person or object leaves the sensing range, it is immediately judged that there is no sensing, and the output signal is released to achieve the purpose of intelligent control (reverse output can also be customized) .

XKC-KD200M

---Relay

normally open(NO)

5V -24V output;

XKC-KD200MC---

Relay normally closed(NC)

5V -24V output

Technical Parameters:

1.Operating Voltage: DC 5V~24V

2. Sensing distance: The distance is adjustable from 0cm to 200cm (the sensing distance and the obstacle color have a certain error, light color is far, dark color is close)

3. Sensing angle: 30-40°cone angle

4.Induction method: Proactive approach

5.Quiescent Current: <3.5 mA

6.Load current: <1A

7.Working temperature: -2085

8.Line length: 30cm (±10MM)

9.Material: PC-V0 fireproof material

10.Waterproof performance: IP67

11.Safety standard certification: CE

12.Environmental certification: ROHS-2.0

Package included:

1 x DC5-24V Infrared Sensor

Wiring diagram:

Working principle of relay NC

point output:

1. When the black wire is connected to VCC:

When liquid is sensed, the relay is closed and the relay NC point is disconnected;

When no liquid is sensed, the relay is disconnected, the NC point of the relay is turned on, and the VCC voltage is output;

2. When the black wire is connected to GND:
