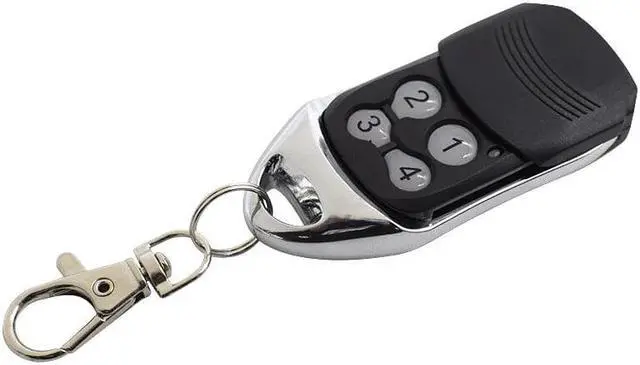

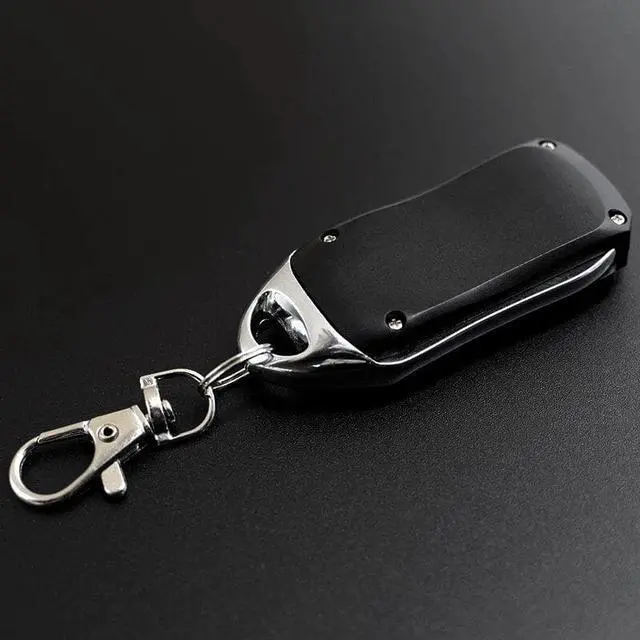

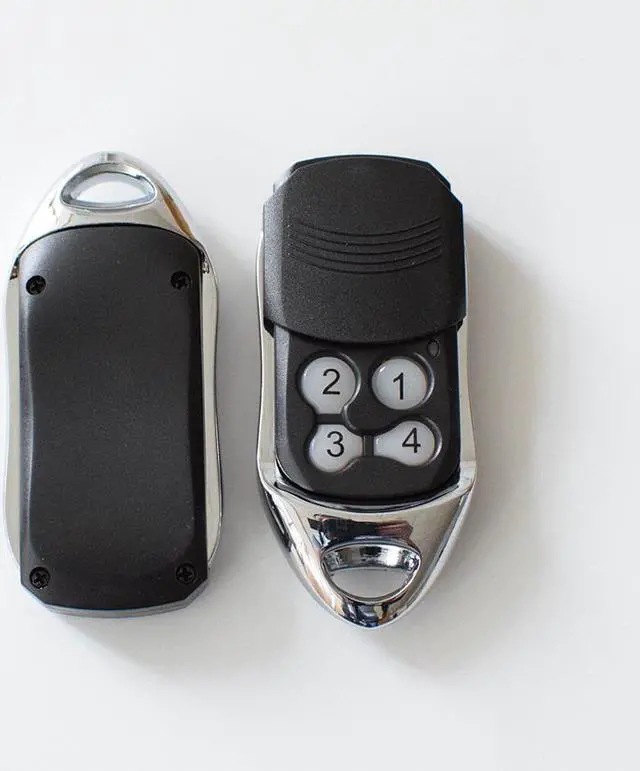

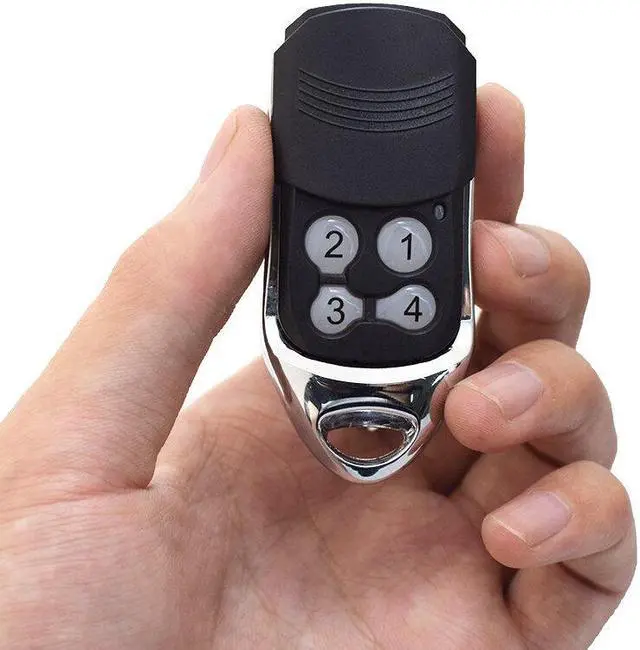

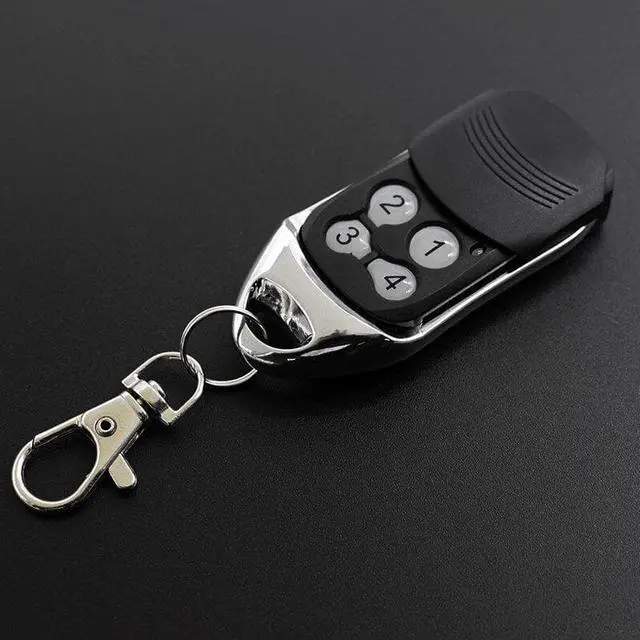

868.35MHz Remote Garage Rolling Code 4026 TX03-868-2 4020 TX03-868-4 Garage Door Remote Controller

Features:

1. Coding Instructions

2. Key chain

3. Heavy Duty Design

4. Button Protector

Specification:

Material: ABS

Size: 70 x 33 x 12mm

Product weight: 50 g

Voltage: 12V 27A

Type of programming: Programming with the receiver

Number of channels: 4

Code: rolling code

Frequency: 868.35MHz

Working Range: 10-50 m (open space)

Power supply: CR2032 Battery (Not included)

Compatible Model: Only RTS

Telis 1 RTS Telis Soliris RTS Telis 4 RTS Telis 4 Soliris RTS Telis 1 MODULIS RTS Telis 4 MODULIS RTS Telis 1 MODULIS Soliris RTS Telis 4 MODULIS Soliris RTS Keytis NS 2 RTS Keytis NS 4 RTS Keytis 2 RTS Keytis 4 RTS KeyGo 4 RTS Centralis RTS Keytis 4 Smoove RTS Compatible with SMFY receivers and gate openers like: AX24ns, AC230ns, Axovia, Elixo, Ixengo, Axorn, AxRoll, Passeo, Dexxo, FreRoll, Oximo RTS, Orea RTS, Altus RTS, LT CSI RTS

Programming Manual:

Programming Black Smfy Keytis

1. Open the casing of your receiver. It is located next to your motor.

2. On the receiver circuit board, press the programming button Prog 1 until the LED light L1 on the receiver illuminates.

3. Press a button on your new remote control. The LED light on the receiver blinks and then turns off.

4. Wait 10 seconds. Your new remote control is programmed.

Programming White Smfy Telis with hidden button

1. Press and hold the hidden button 2-3 seocnds on the original remote.

2. Press button 1 and 2 of the new remote about 1-2 Second at the same time, then press button 4 for 1-2 second, then it's ready to work now.

Package included:

1 x Remote Controller (Not included battery)

1 x Key chain

1 x English Manual
