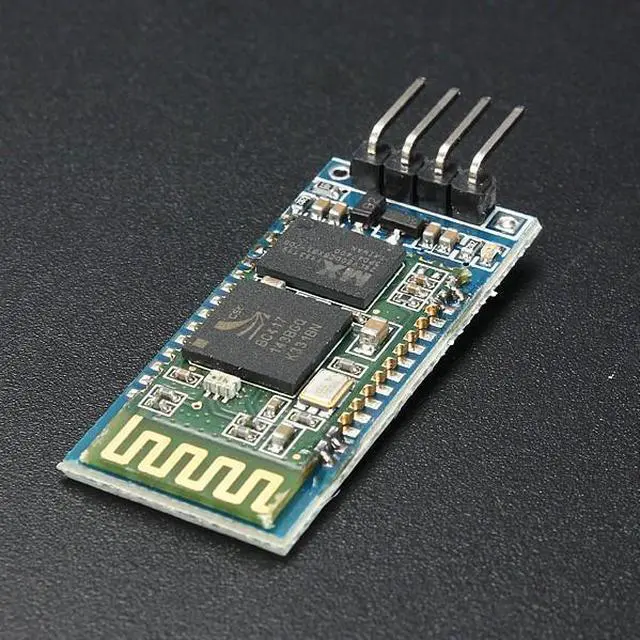

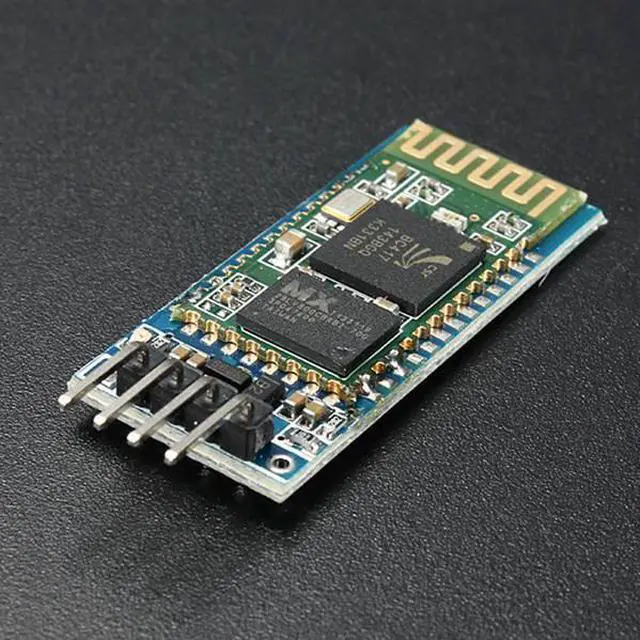

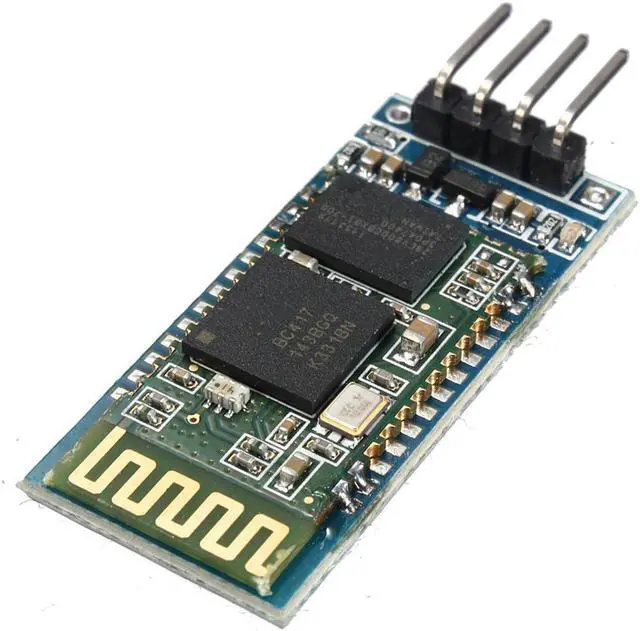

3Pcs HC-06 Wireless bluetooth Transceiver RF Main Module Serial

Description:

Note: This module does not suitable for IOS system.

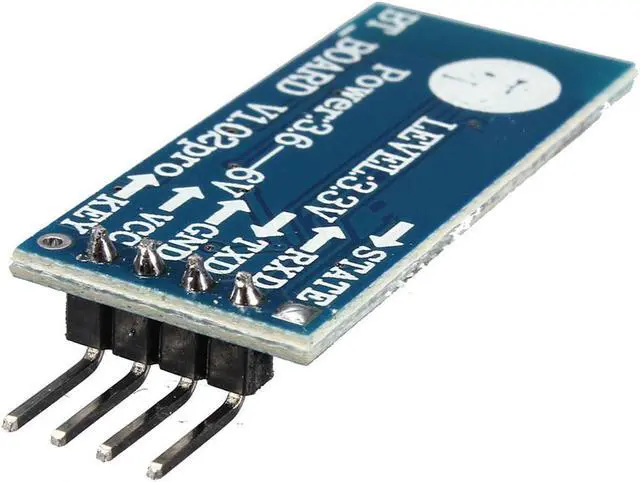

The core module HC-06 main modules, leads the interface includes VCC, GND, TXD, RXD, KEY pin high trigger to clear the pairing information re search

led indicate bluetooth connection status, flash unpaired slow flash indicates paired but not slave connection, Always follow machine connected

Backplate settings LDO input voltage of 3.6~~6V unpaired current is about 30mA, paired 10mA, input voltage prohibit more than 7V absolute prohibition of reverse power!

Interface level 3.3V, can be directly connected the various (51, AVR, PIC, ARM, MSP430, etc.), the 5V MCU also can be connected directly, without MAX232 can not go through the MAX232!

Open to effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure

The pair later when full-duplex serial use, do not need to know anything about the bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is the most commonly used communication format does not support other formats.

Support to establish a bluetooth connection through AT commands set the baud rate, passkey, set parameters are saved after. bluetooth connection is automatically switched to the pass-through mode.

Wireless serial bluetooth port with extension cable.

With transparent shrink tube, dust and beautiful, and there is a certain degree of anti-static capabilities.

Size:3.57cm x 1.52cm

Tips:

TXD: the sender, usually expressed as its sender, the normal communication must be connected to another device RXD.
