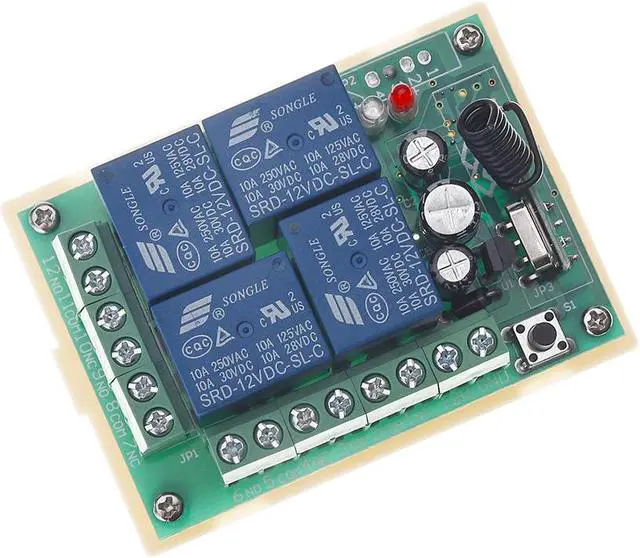

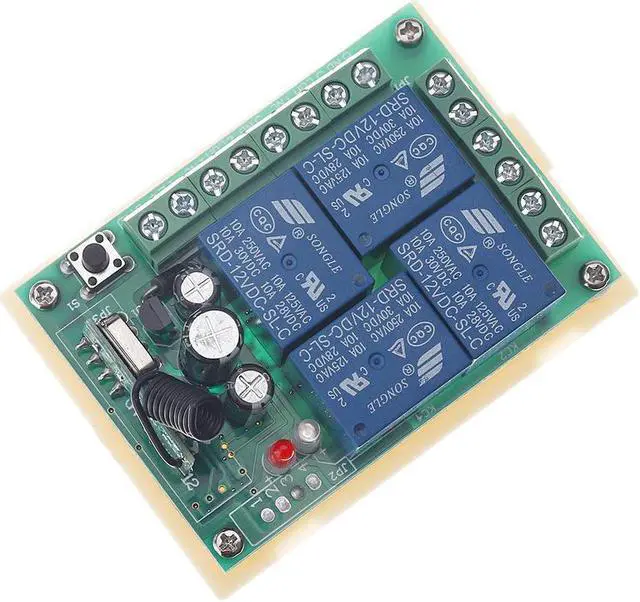

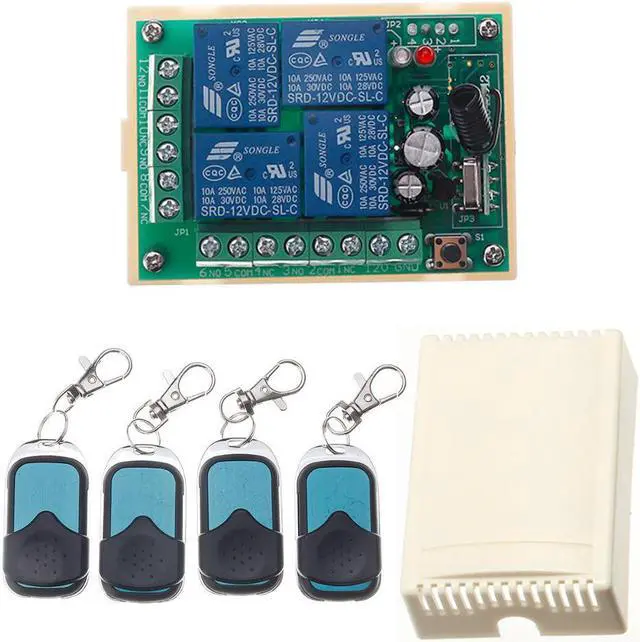

HCS301 433MHz Rolling Code Remote Control Switch Wireless Power Supply Relay Receiver Module

If you need more Transmitter, please buy

ID: 1867910

Description:

Operating voltage: DC12V

Operating frequency: 433/

315

MHz

Maximum load: 10A

Receiver sensitivity: -100dB

Encoding type: Rolling Code

Work: Jog, interlock, self-locking (with hooded optional.)

Output mode: four sets of switching signals

Remote distance: 20-100 meters

Features:

1. The remote control switch for the rolling code remote control switch, confidentiality is absolutely reliable, to prevent the decoder on the market crack, such as self-locking function, the jump cap inserted row pin on the line. If you want to interlock function, the jump cap inserted into row of needle on the line. If you want to unlock the function, the jump cap is not inserted on the line. Easy to use, easy to operate.

2. With a buzzer instructions to facilitate the determination of the switch working status

3. Use learning key function, such as remote control is lost, and I can roll the remote control and then learn.

Four sets of relay output empty contacts, can be connected to 4000W load.

How to change the working mode?

The indicator flashes 1-2-3, which are three working modes. No need cap to change the mode.

T

here is a learning button on the receiving board to learn.

How to set and learning code:

1) Output mode selection and learning method:

Press any key of the remote control, the learning indicator should flash continuously, otherwise the controller cannot learn the remote control. First select the output mode and then learn the remote control.

2) Selection of output mode:
