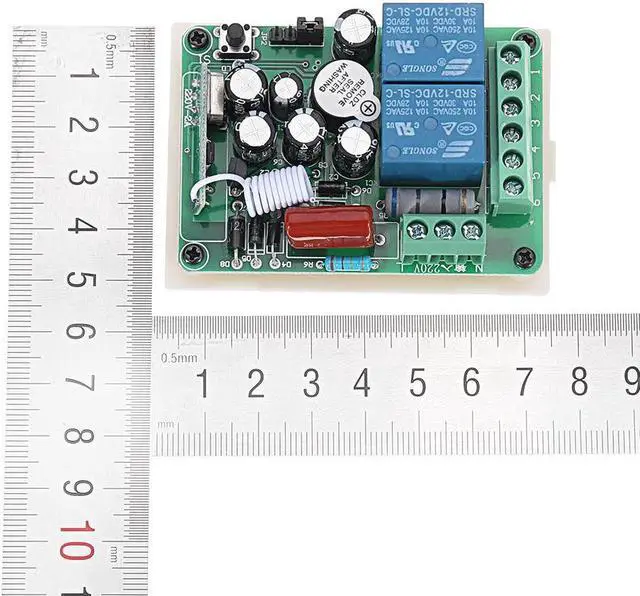

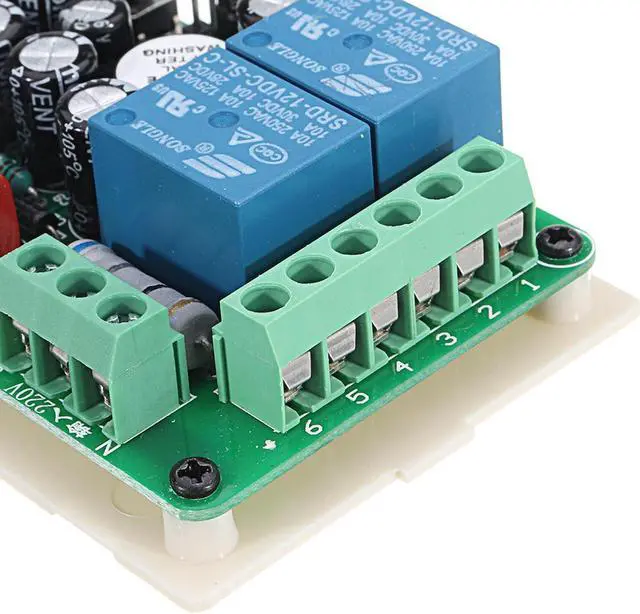

315MHz AC 220V 2 Channel RF Wireless Remote Control Switch System Module for Smart Home

Specifications:

Working Voltage: AC220V-+10%

Max Current : 10A (have better lower than 7A )

Channel: 1CH

Working Frequency : 315MHZ

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way: Momentary. Toggle .Latched  adjusted by

Code type: Learning code Add Controller by the Learning Button on the receiver

Output State:

It is adjusted by the on the Receiver Board, (before you change it .you need turn OFF the power. Until you have changed it, then turn ON the power again, or the State will not be changed)

A: Momentary-----------Put the on M&G.

B: Toggle------------put the on T&G

C: Latched------------- Take way the or put the on any 1 Pin.

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF,

Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,

Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.

Learning Method:

Input AC220V for the Receiver .Press the Learning Button until the Led indicator ON. Then press transmitter A, the Led indicator flash fast, Press the transmitter B , the Led indicator flash fast it mean learning successfully.

Clearing Code:

Press the learning Button and hold ,until the indicator from ON to OFF to flash fast,it mean the code have been cleared successfully.

Package Included:

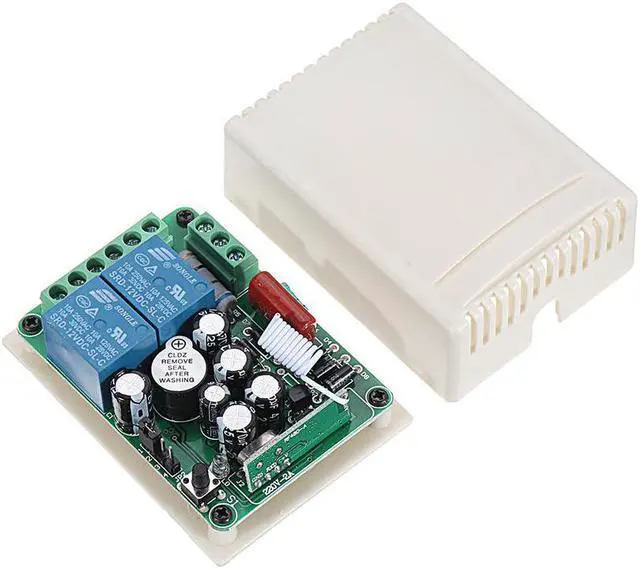

1 x 315MHz AC 220V 2 Channel RF Wireless Remote Control Switch
