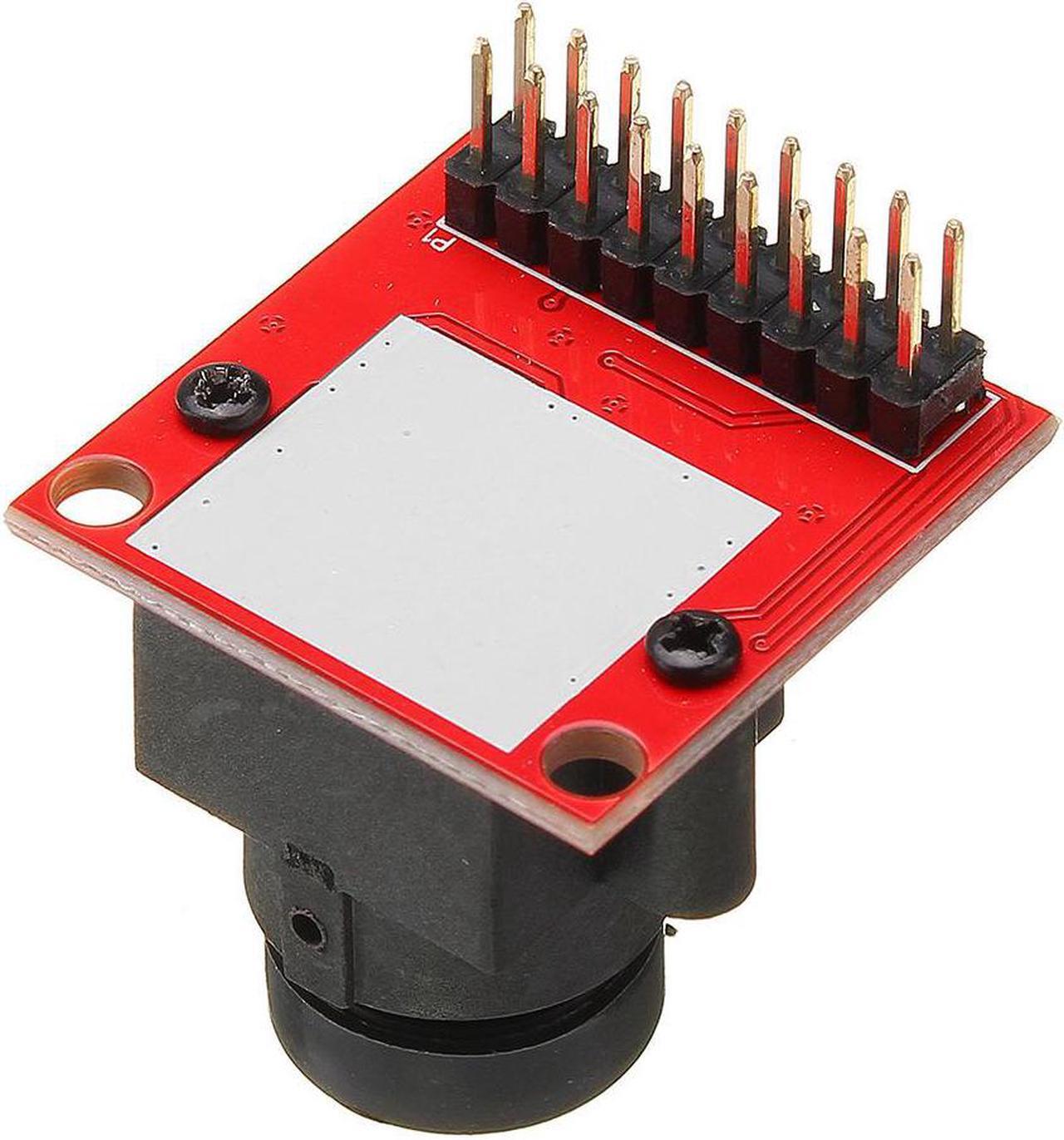

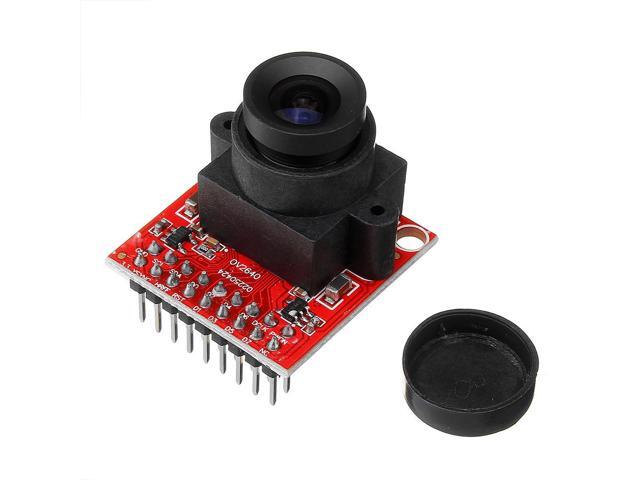

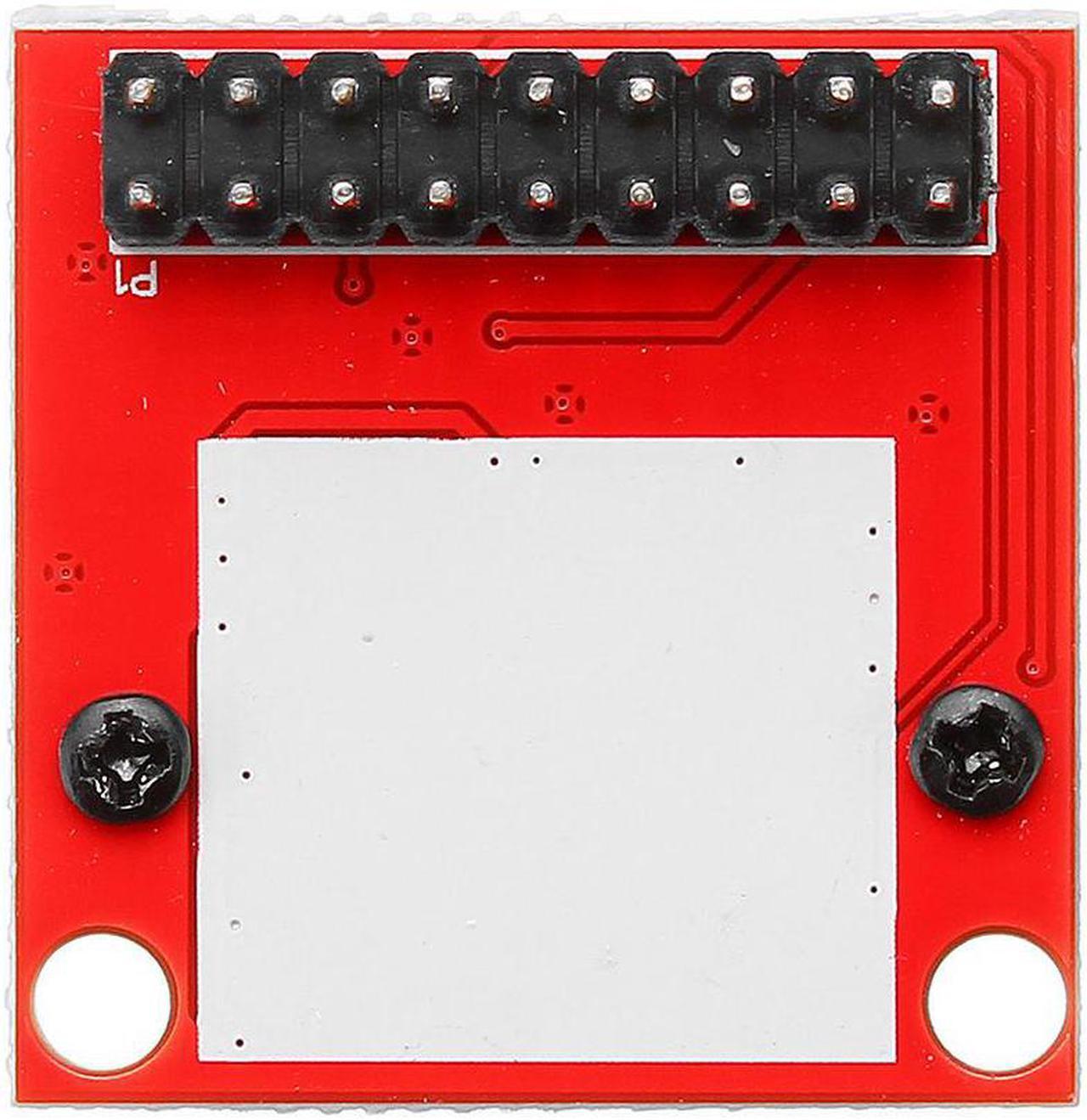

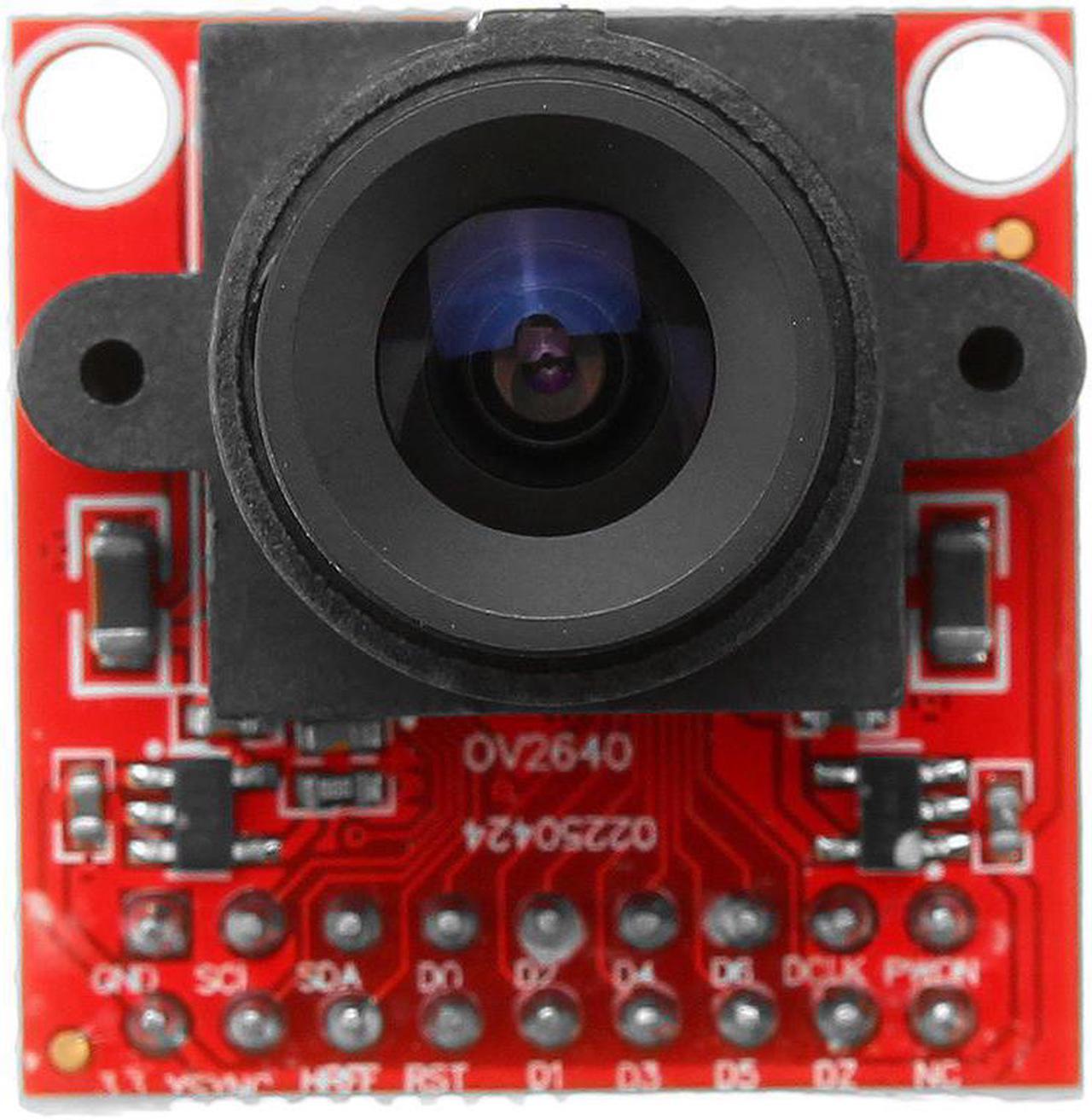

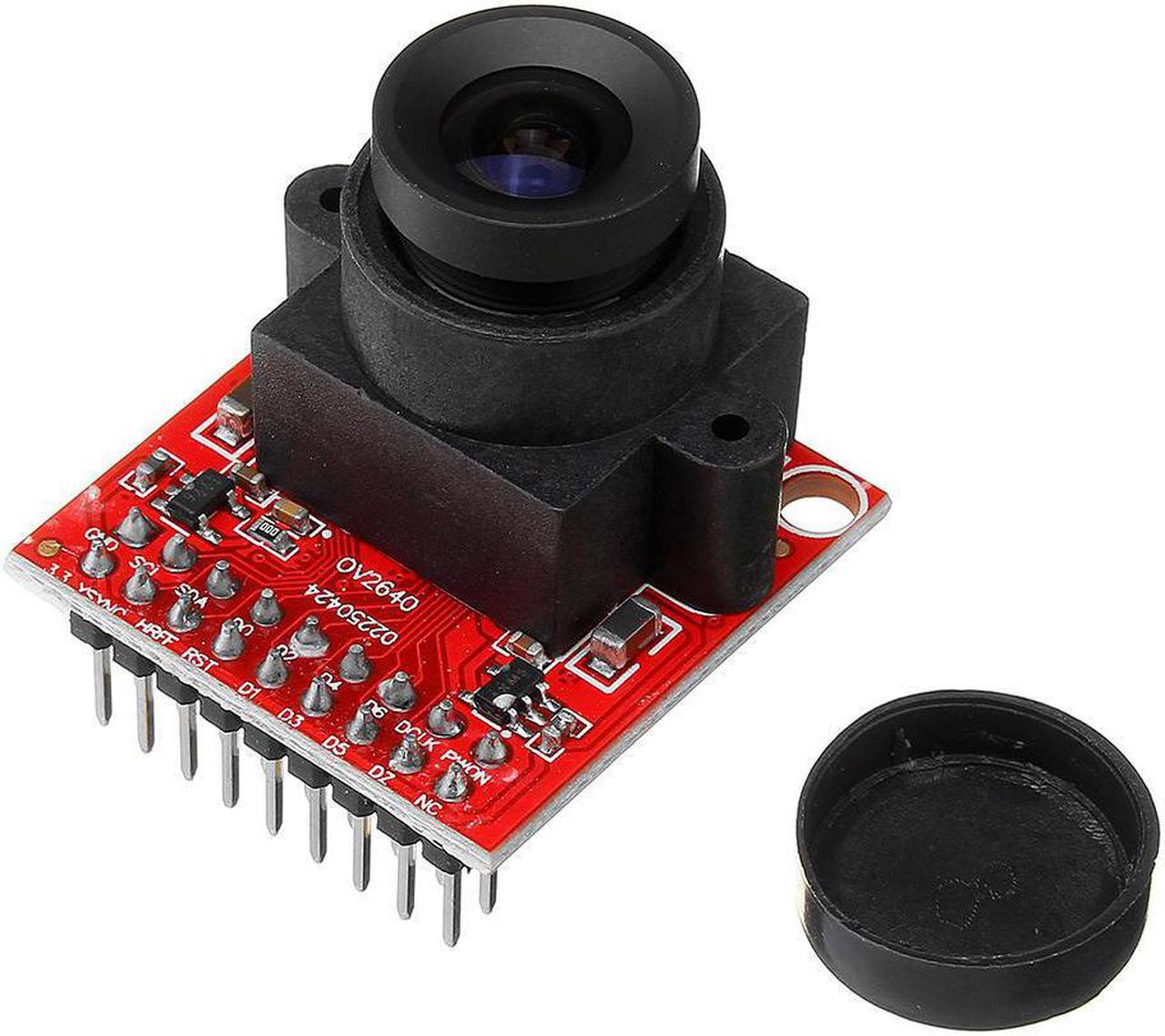

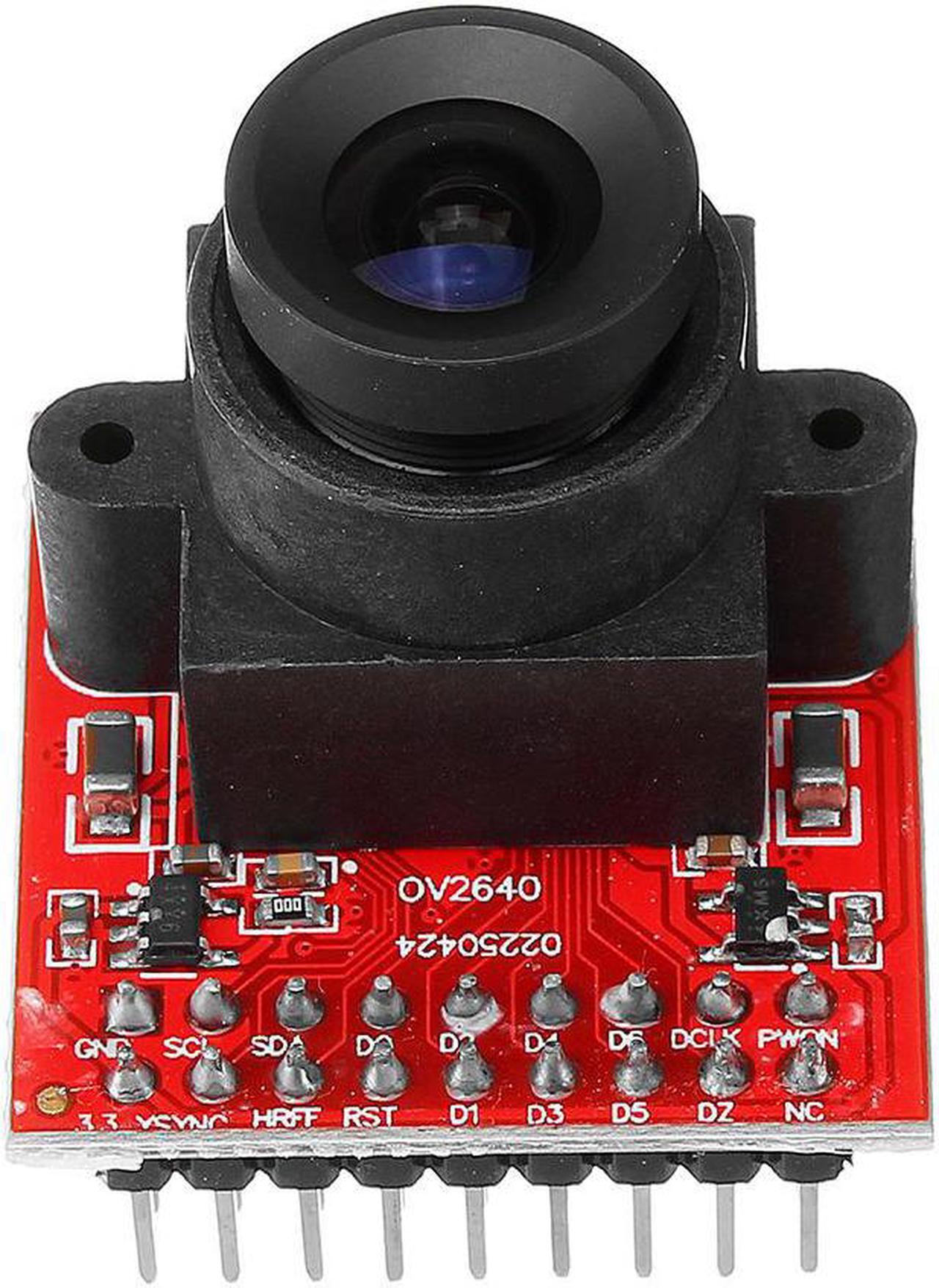

XD-95 OV2640 Camera Module 200W Pixel STM32F4 Driver Support JPEG Output

>>>Manual: Click here to open<<<

The Module Introduction:

This product adopts OV2640 sensor as the core component, integrated active crystals and they, simple interface, use very convenient.

200 w pixel OV2640 camera module latest STM32F4 drive source support JPEG output standard camera lens focal length is 3.6 mm, other high-grade megapixels camera is optional.

OV2640 camera module, using the 1/4 inch OV2640 millions of hd CMOS sensor.High sensitivity, high flexibility and support JPEG output etc.And can support exposure, white balance and chroma, saturation, contrast, and many other parameters setting, support JPEG/RGB565 format output, can meet the demand of different occasions.

Specifications:

Sensor size: 1/4 inch

Pixel: 1600 * 1200 (200W)

The output format: RGB565 / JPEG/YUV/YCbCr, etc

Control interface: SCCB

Working voltage: 3.3 V

Module size: 27 mmx27mm

Features:

1. OV2640 image sensor has 200W pixels (1632 x1232 pixels), its small size, low work voltage, monolithic UXGA camera and image processor provide all the functionality.

2. Can be output by SCCB bus control, the whole frame, sampling, take the way such as window resolution of 10 sampling data.The product UXGA image to a maximum of 15 frames per second.Users can complete control of image quality, data format and transmission mode.

3. All the process of image processing functions, including gamma curve, white balance, saturation and chroma can be through the SCCB programming interface.OmmiVision image sensor application of sensor technology, unique to reduce or eliminate the optical or electronic defect such as fixed pattern noise, tail, float away, etc., improve the quality of the image, get clear and stable color images.
