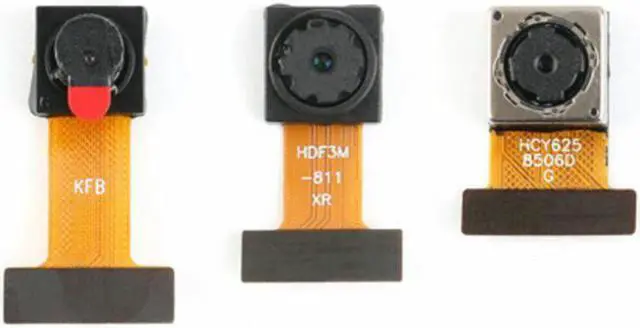

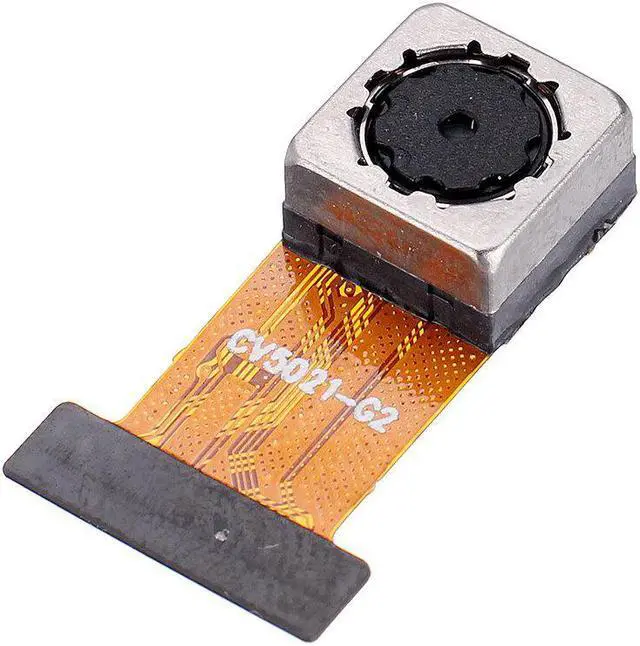

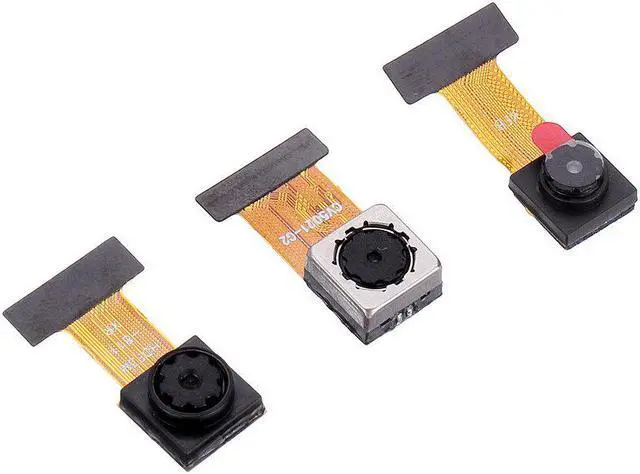

Mini OV7670 / OV2640 / OV5640-AF Camera Module CMOS Image Sensor Module

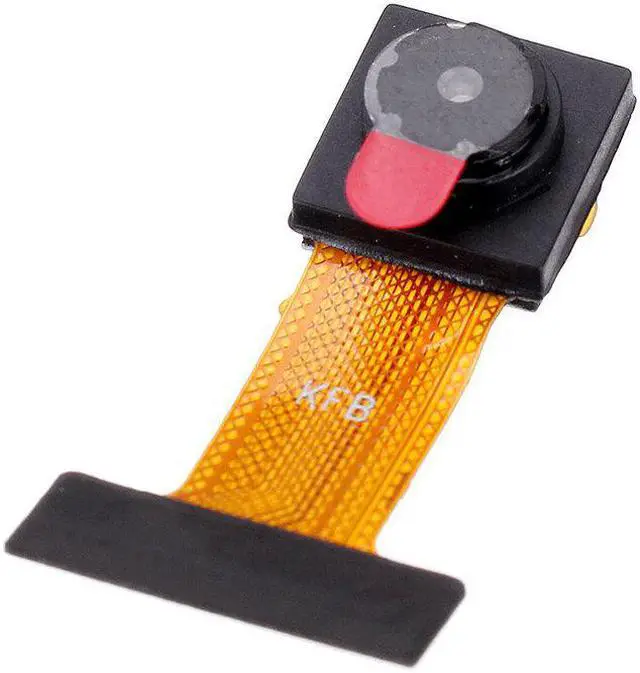

OV7670: Camera

Click to download document: OV7670

Features:

1. The OV7670 image sensor, small in size and low in operation, provides all the features of a single VGA camera and image processor. Through the SCCB bus control, it can output various resolution 8-bit image data in the whole frame, sub-sampling, and window.

2. The product has a VGA image of up to 30 frames per second. Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed via the SCCB interface.

3. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating.

Note:

This camera module only leads to some pins of the BGA package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself.

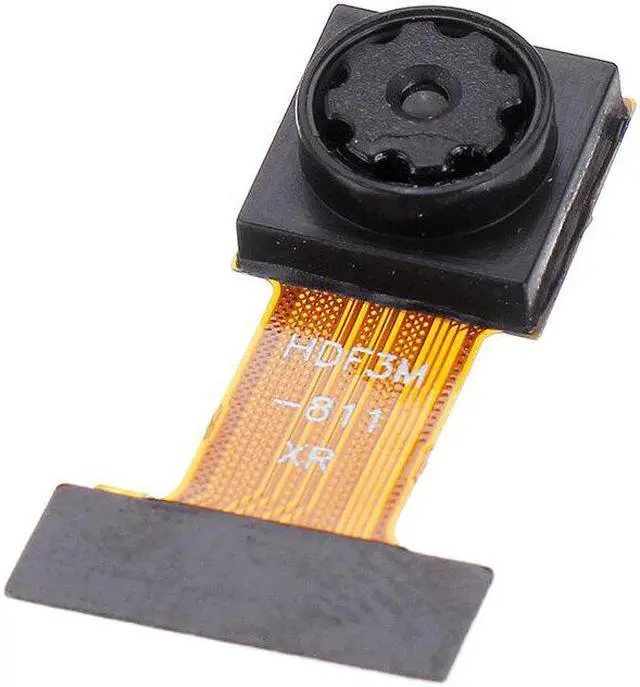

OV2640 Camera

Click to download document: OV2640

Features:

1. The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.

2. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission.
