M5StickC YUN HAT SHT20 Temperature and Humidity BMP280 Pressure Sensor 14 x SK6812 RGB LED Multi-Function Environment Informationfor Arduino - products that work with official Arduino boards

If you want to buy M5Stick click here:

ID: 1476576

Description:

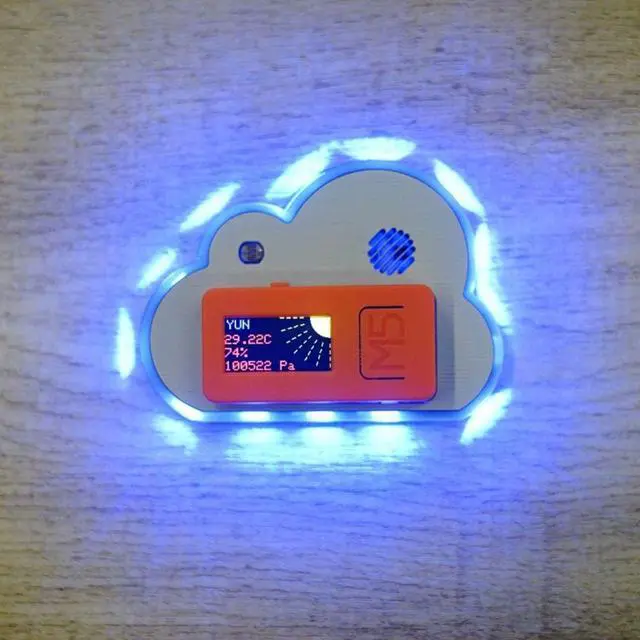

YUN HAT

is a cloud-shaped multi-function environment information measurement base. Built-in temperature and humidity sensor SHT20

, air pressure sensor BMP280

, photoresistor. 14 RGB LEDs. The board is build with Embedded Microprocesser * STM32F030F4** , which implenmented a consice and efficient program APIs.

YUN HAT features a pretty appearance which could be used as a decration for your space.

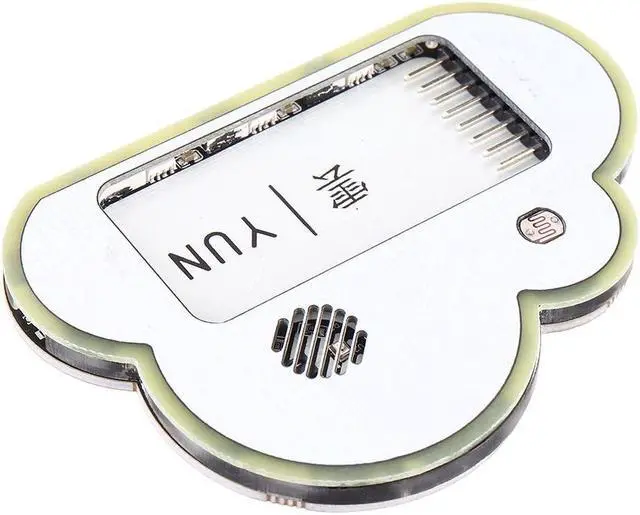

The base is designed for the M5StickC, like other HAT devices, it is compatible with top socket of M5StickC. The overall structure adopts a three-layer design, and the upper and lower PCB boards serve as fixed structure and main circuit respectively, which is beneficial to the circuit conduct long hours of work.

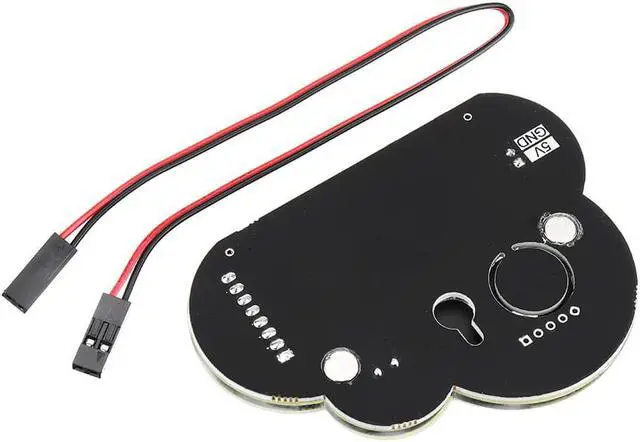

the board also provides an independent external power interface.

The middle layer is a light-guided acrylic component. To achieve a better light display effect, The acrylic outer contour cutting surface is partially polished, and the purpose is to effectively reduce the scattering of light, making it evenly saturated with light effects.

One hook hole and two 6

4mm magnet mounting positions are reserved on the board, so users can easily magnet or hang in any corner of space.

Product Features:

Compatible with M5StickC

On-board Microprocessor STM32F030F4

Temperature and Humidity SensorSHT20

Air pressure sensorBMP280

Photoresistance

14 x SK6812 4020 RGB LED

Three-layer structure design: 1 x hook hole

2 x 6*4mm magnet mounting position

1 x finishing Acrylic profile surface

Development platform: , UIFlow(Blockly, Python)

Package Included:

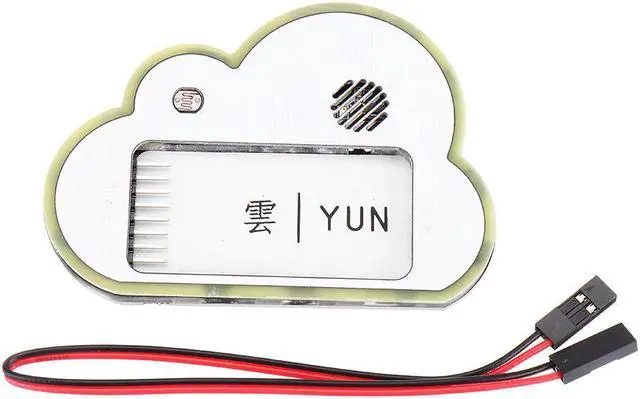

1x YUN HAT

2x Dupont

Application:
