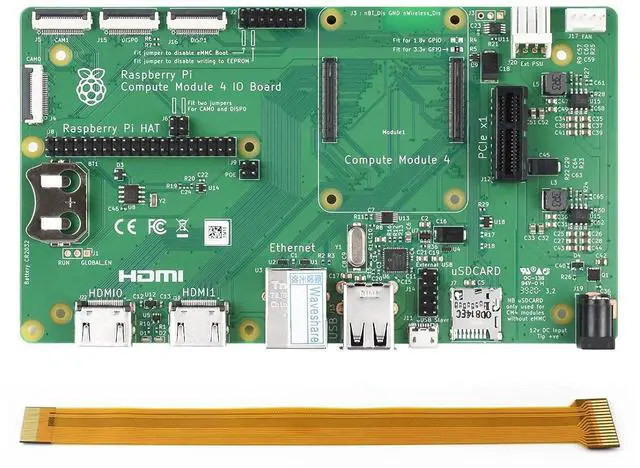

Waveshare Compute Module 4 IO Board Pack with RPi Zero V1.3 Camera Cable 15 CM (No WiFi) Compatible with Raspberry Pi Compute Module 4

Product description The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products. The IO board is designed to allow you to create systems quickly using off-theshelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple. Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.

Specifications

CM4 SOCKET suitable for all variants of Compute Module 4 CONNECTORS Standard Raspberry Pi HAT connectors with PoE support CONNECTORS Standard PCIe Gen 2 x1 socket CONNECTORS Various jumpers to disable specific features, e. g. wireless connectivity, EEPROM writing RTC Real-time clock with battery socket and ability to wake Compute Module 4 VIDEO 2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable) CAMERA 2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable) USB 2 x USB 2.0 connectors/ Micro USB socket for updating Compute Module 4 ETHERNET Gigabit Ethernet RJ45 with PoE support STORAGE SOCKET MicroSD card socket for Compute Module 4 Lite (without eMMC) variants FAN Standard fan connector POWER INPUT 12V / 5V DIMENSIONS 160 × 90mm
Wiki: waveshare. com/wiki/Compute-Module-4? amazon See More
