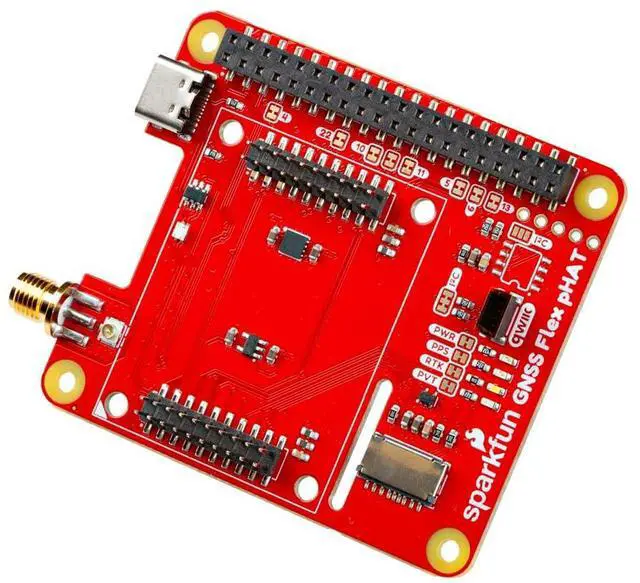

GNSS Flex pHAT - Raspberry Pi Carrier for SparkPNT GNSS Flex Modules - 40-Pin Socket - USB-C - microSD - Qwiic - U.FL/SMA Antenna Bridge - PPS/RTK/PVT LEDs
- Modular carrier: solderless Raspberry Pi pHAT for SparkPNT GNSS Flex modules; standardized ecosystem uses two 2×10, 2 mm headers between module and carrier; Note: Board only; Module and accessories sold separately; Easy stacking: pre-soldered headers mate with a 40-pin SBC header; default UART uses GPIO14/15 on Raspberry Pi, with other interfaces available; Connectivity options: breakouts provide USB data, 4× UART, I2C, SD card, PPS/event signals; USB-C connects directly to the GNSS Flex module; Antenna & expansion: U.FL-to-SMA antenna bridge, microSD socket for logging, Qwiic connector, and status LEDs for PWR, PPS, RTK, and PVT; Configuration control: 24 jumpers for GPIO isolation, LED power isolation, and I2C pull-up selection; designed for Pi/Jetson/Coral-style 40-pin SBCs
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The SparkFun GNSS Flex pHAT is a Raspberry Pi pHAT that functions as a carrier board for our SparkPNT GNSS Flex modules. With pre-soldered headers, no soldering is required to stack the pHAT on the headers of a Raspberry Pi or other single-board computer with a similar 40-pin header. The GNSS Flex pHAT also comes with two sets of 2x10-pin, 2mm pitch male headers for attaching a GNSS Flex module. With these headers, the GNSS Flex system is designed to be modular, so boards are pin-compatible for upgrades and can be easily swapped out for repairs.
Depending on the capabilities of the GNSS Flex module that is connected, these pins will breakout the USB, UART (x4), I2C, and SD card interfaces for the GNSS receiver, along with any PPS or event signals, using a standardized pinout. By default, we use the Raspberry Pi's primary serial bus (i. e.
TX: GPIO14/Pin 8;
RX: GPIO15/Pin 9) to communicate with the GNSS receiver of the SparkPNT GNSS Flex module. However, users can also utilize any of the other interfaces.
Depending on the capabilities of the GNSS Flex module that is connected, these pins will breakout the USB, UART (x4), I2C, and SD card interfaces for the GNSS receiver, along with any PPS or event signals, using a standardized pinout. By default, we use the Raspberry Pi's primary serial bus (i. e.
TX: GPIO14/Pin 8;
RX: GPIO15/Pin 9) to communicate with the GNSS receiver of the SparkPNT GNSS Flex module. However, users can also utilize any of the other interfaces.
