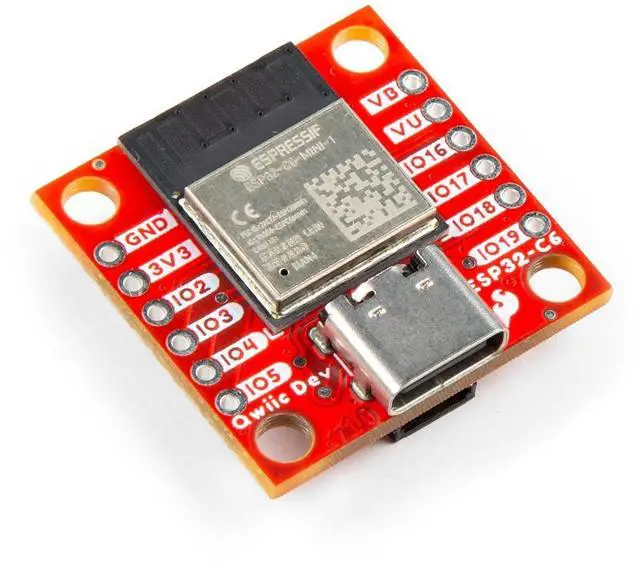

Qwiic Pocket Development Board - ESP32-C6 Mini-1 Module, Including a USB-C Connector, Qwiic Connector, 2-pin JST Battery Connector, Board Dimensions: (Inches) 1" x 1"

The SparkFun ESP32-C6 Qwiic Pocket Development Board is designed to fit the 1in. x 1in. Qwiic Standard Size, making it easy to add a powerful wireless development platform that stacks into any existing project using the Qwiic ecosystem. It features the ESP32-C6 Mini-1 module. We designed this board with components on both sides of the PCB to squeeze as many features as possible into its tiny footprint, including a USB-C connector, Qwiic connector, 2-pin JST battery connector with an on-board charging circuit, as well as two buttons for Reset and Boot.

The design also works to optimize power consumption. In our testing, we measured total current consumption by the board to be ~14µA in Deep Sleep mode, making it an excellent fit for remote, battery-powered applications. The ESP32-C6 SoC is built around a RISC-V single-core processor with 4 MB flash memory and an integrated wireless stack. The wireless stack supports 2.4 GHz Wireless, wireless 5.3, Zigbee, and Thread ( 802.15. 4) and uses an on-board PCB antenna. The ESP32-C6 includes various peripheral options, including SPI, UART, LPUART, I2C, I2S, LED PWM, USB Serial/JTAG controller, ADC, and more.

Though some are tied to specific pins, many of these peripherals can be mapped to any GPIO pin. Due to the board's size, it only breaks out eight total GPIO pins, including four ADC-compatible pins, Low Power and Standard UART, and an extra two GPIO pins.
