Thing Plus - ESP32-S3 - IoT Development Board - Qwiic Connector - LiPo Battery Charger - microSD Card Slot - Dimensions: 2.55 in x 0.9 in

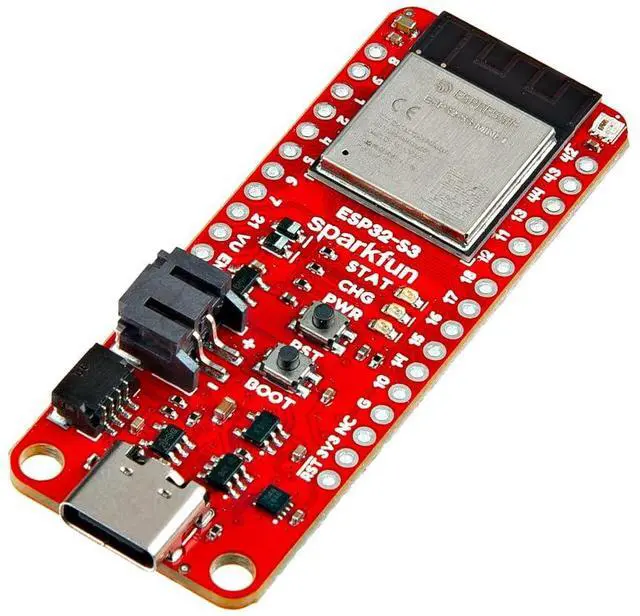

The SparkFun ESP32-S3 Thing Plus adds a powerful and versatile IoT development platform to the Thing Plus product line. It features the ESP32 WROOM-S3 MINI wireless module. The ESP32 WROOM-S3 is built around a 32-bit LX7 processor with massive processing power that operates up to 240 MHz. It supports 2.4 GHz and wireless 5 (LE) with a built-in PCB antenna. This version of the ESP32-S3 has 4MB Flash memory and 2MB of dynamic/PSRAM, and the board also has a microSD card slot for those who need more storage space. The module has many peripherals, including UART, I2C, SPI, LCD control, SDIO host, controller (compatible with ISO 11898-1, i.

e., CAN Specification 2), and more. The module allows for customizing which GPIO pins these peripherals operate on though some are limited to specific pins. The ESP32-S3 can run two USB ports simultaneously and can even act as a USB host host device. The Thing Plus footprint breaks out 21 of the ESP32-S3's GPIO pins along with the ESP32's Reset and Enable signals to a pair of 0.1 in. -spaced plated through hole (PTH) headers. The available GPIO pins include twelve unassigned GPIO with six analog-capable pins as well as GPIO assigned to UART, I2C, and SPI interfaces.

Refer to the pin labels on the board or the schematic for complete details on the pin functions. The board also has a USB-C connector for primary power and programming, a 2-pin JST connector for a LiPo battery (not included), a microSD card slot for expanded storage, and a Qwiic conne
