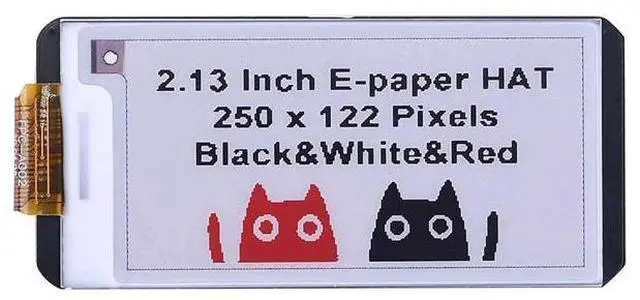

2.13 Inch E-Ink Display HAT for Raspberry Pi/Jetson Nano/Arduino/STM32 Three Color Red White Black E-Paper Screen SPI Interface 250x122 Resolution

Product description 2.13 inch E-Paper Display RBW Low power, wide view angle, can display 3 colors (Red & Black & White) Product Features This product is a 2.13 -inch red, black, and white three color e-ink screen expansion module, based on the Raspberry Pi 40PIN interface design and suitable for Raspberry Pi series motherboards. We provide C and Python version demo codes for Raspberry Pi, and reserve the SPI control interface for easy access to Arduino, STM32 and other main control boards. We also provide Arduino, STM32, ESP32 version demo codes, which can realize picture display, English and digital character display, and point, line, rectangle, circle drawing.

250 x 122 pixels, can
display three colors: red, black, and white SPI interface, less pin occupation Onboard Voltage Translator, which can be compatible with 3.3V and 5V MCU Based on Raspberry Pi 40PIN GPIO header design, applicable to Raspberry Pi series motherboard SPI communication interface is reserved to facilitate connect to Arduino/STM32 and other control boards Open source demo codes available for Raspberry Pi, Arduino, STM32, ESP32 development boards Product

Specifications

Size mm 65 x 30 Pixels 250 x 122 Display Color Three-colour(Red, Black, and White) Level Conversion Chip TXS0108EPWR Signal Interface SPI Power Supply Voltage 5V/ 3.3V Display Area mm 23.70 x 48.55 Grayscale 2 Partial Refresh 1.8S Full Refresh Time 22S Power Consumption 5.5 mW Standby Power Consumption 0.003 mW

Details

& Dimensions 3-Col
